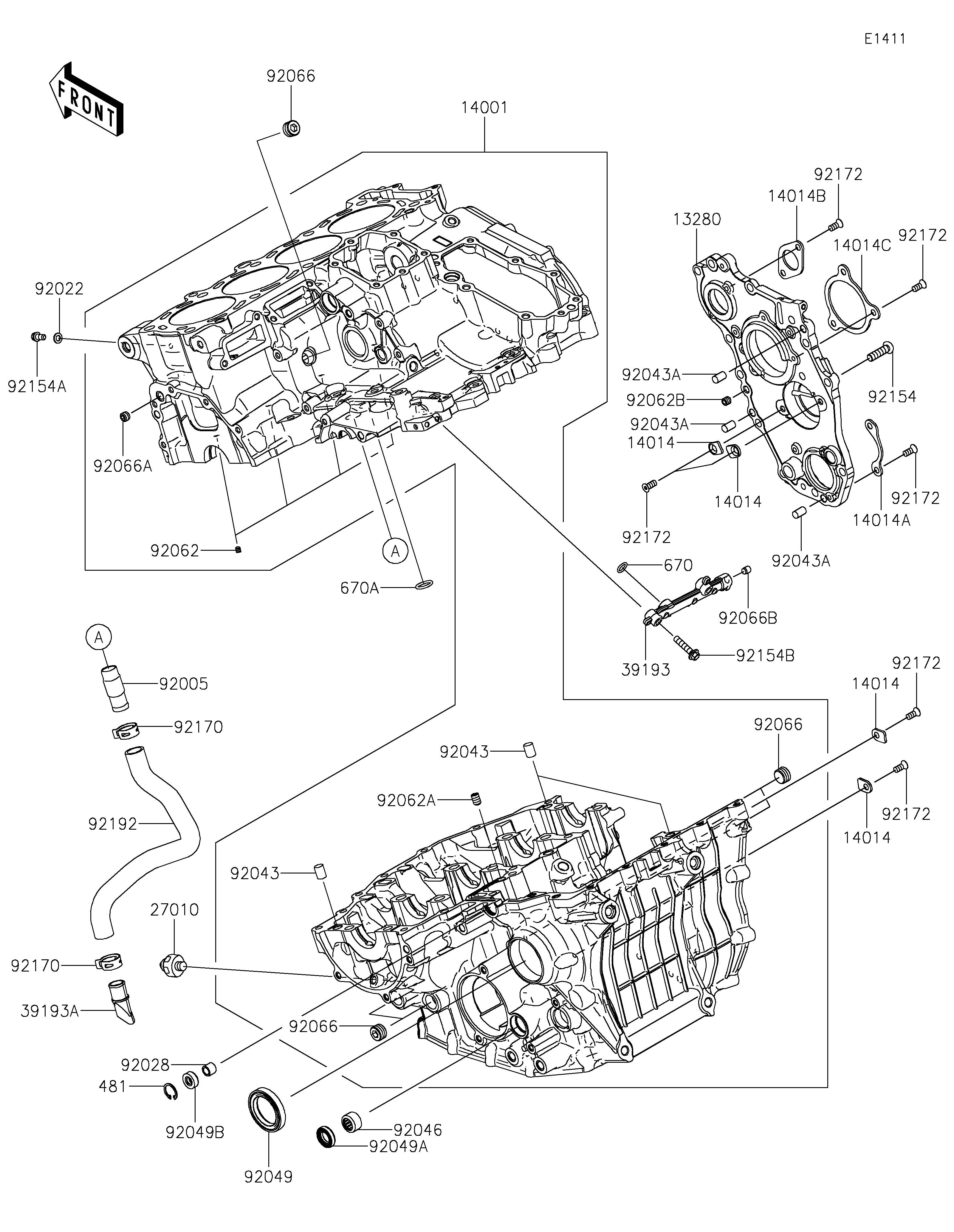

2022 NINJA H2® SX SE - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13280
14001
14014
14014
14014
14014
14014A
14014B
14014C
27010
39193
39193A
92005
92022
92028
92043
92043
92043A
92043A
92043A
92046
92049
92049A
92049B
92062
92062A
92062B
92066
92066
92066
92066A
92066B
92154
92154A
92154B
92170
92170
92172
92172
92172
92172
92172
92172
92192
481
670
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,TRANSMISSION 13280 13280-0799 1
SET-CRANKCASE 14001 14001-0745 1
PLATE-POSITION 14014 14014-0569 4
PLATE-POSITION,CHANGE DRUM 14014A 14014-0571 1
PLATE-POSITION,COUNTER SHAFT 14014B 14014-0572 1
PLATE-POSITION 14014C 14014-0575 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE-OIL 39193 39193-0581 1
PIPE-OIL 39193A 39193-0582 1
FITTING 92005 92005-0773 1
WASHER,6.2X11X1 92022 92022-304 1
BUSHING,8X12X10 92028 92028-1750 1
PIN,10X14 92043 92043-1506 3
PIN,8X14 92043A 92043-1567 3
BEARING-NEEDLE,HK1412FM 92046 92046-0043 1
SEAL-OIL,TC 35X50X8 92049 92049-1452 1
SEAL-OIL,TC14245 92049A 92049-1520 1
SEAL-OIL 92049B 92049-1566 1
NOZZLE 92062 92062-0004 4
NOZZLE 92062A 92062-0031 1
NOZZLE 92062B 92062-0032 1
PLUG 92066 92066-0831 5
PLUG,PT1/8X7 92066A 92066-0876 1
PLUG,OIL LINE,7.2X8 92066B 92066-1012 1
BOLT,TORX,8X28 92154 92154-0415 12
BOLT,SOCKET,6X12 92154A 92154-1453 1
BOLT,FLANGED,6X28 92154B 92154-1845 2
CLAMP 92170 92170-1640 2
SCREW,TORX,6X14 92172 92172-0906 11
TUBE,BREATHER DRAIN 92192 92192-1437 1
CIRCLIP-TYPE-C,18MM 481 481J1800 1
O RING,9.8X1.9 670 670B1510 1
O RING,15MM 670A 670D2015 1
