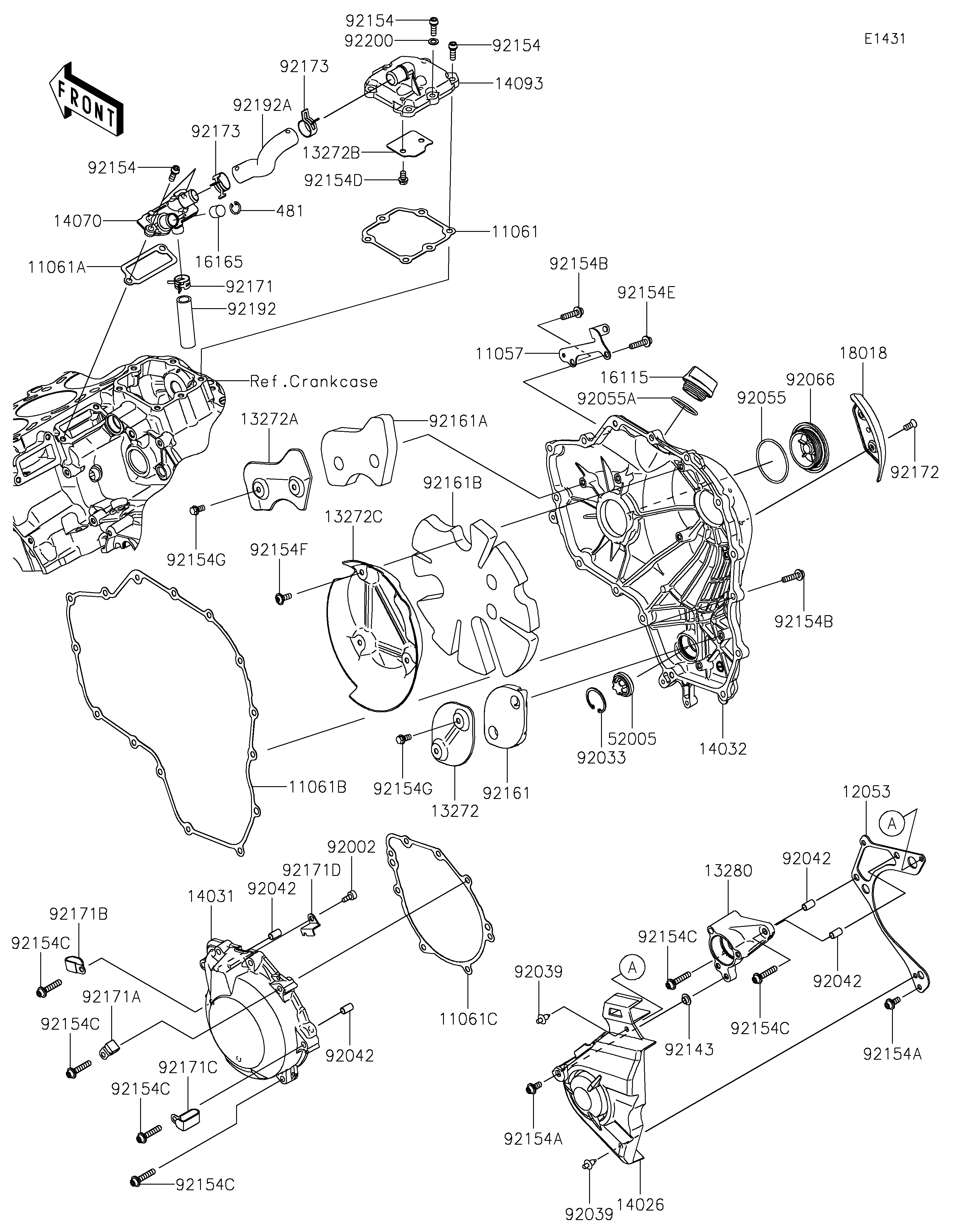

2022 NINJA H2® SX SE - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11061
11061
11061A
11061A
11061B
11061B
11061C
11061C
12053
12053
13272
13272
13272A
13272A
13272B
13272B
13272C
13272C
13280
13280
14026
14026
14031
14031
14032
14032
14070
14070
14093
14093
16115
16115
16165
16165
18018
18018
52005
52005
92002
92002
92033
92033
92039
92039
92039
92039
92042
92042
92042
92042
92042
92042
92042
92042
92055
92055
92055A
92055A
92066
92066
92143
92143
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154D
92154D
92154E
92154E
92154F
92154F
92154G
92154G
92154G
92154G
92161
92161
92161A
92161A
92161B
92161B
92171
92171
92171A
92171A
92171B
92171B
92171C
92171C
92171D
92171D
92172
92172
92173
92173
92173
92173
92192
92192
92192A
92192A
92200
92200
481
481
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-7255 1
GASKET,BALANCER COVER 11061 11061-0941 1
GASKET,BREATHER 11061A 11061-0942 1
GASKET,CLUTCH COVER 11061B 11061-0944 1
GASKET,GENERATOR COVER 11061C 11061-0945 1
GUIDE-CHAIN 12053 12053-0247 1
PLATE 13272 13272-1852 1
PLATE 13272A 13272-1854 1
PLATE 13272B 13272-1901 1
PLATE 13272C 13272-2476 1
HOLDER,CLUTCH RELEASE 13280 13280-0903 1
COVER-CHAIN 14026 14026-0142 1
COVER-GENERATOR 14031 14031-0647 1
COVER-CLUTCH 14032 14032-0683 1
BODY-BREATHER 14070 14070-0013 1
COVER,BALANCER 14093 14093-0631 1
CAP-OIL FILLER 16115 16115-1009 1
SEPARATOR 16165 16165-0011 1
PLATE-HEAT GUARD 18018 18018-0590 1
GAUGE 52005 52005-1120 1
BOLT,SOCKET,6X12 92002 92002-1796 1
RING-SNAP 92033 92033-1305 1
RIVET 92039 92039-0068 2
PIN,DOWEL,6.3X8X14 92042 92042-007 4
RING-O,49.7X2.4 92055 92055-0183 1
RING-O,31.5X2.6 92055A 92055-049 1
PLUG 92066 92066-0800 1
COLLAR 92143 92143-1331 1
BOLT,SOCKET,6X18 92154 92154-1455 8
BOLT,SOCKET,6X14 92154A 92154-1460 2
BOLT,SOCKET,6X25 92154B 92154-1461 14
BOLT,SOCKET,6X30 92154C 92154-1463 10
BOLT,FLANGED,6X10 92154D 92154-2819 2
BOLT,SOCKET,6X25 92154E 92154-2826 1
BOLT,TORX,6X16 92154F 92154-2920 3
BOLT,FLANGED,6X12 92154G 92154-2922 4
DAMPER 92161 92161-1716 1
DAMPER 92161A 92161-1718 1
DAMPER 92161B 92161-2079 1
CLAMP 92171 92171-0533 1
CLAMP 92171A 92171-0534 1
CLAMP 92171B 92171-0739 1
CLAMP 92171C 92171-0911 1
CLAMP 92171D 92171-0938 1
SCREW,TORX,6X14 92172 92172-0901 2
CLAMP 92173 92173-1702 2
TUBE,BREATHER IN-SIDE 92192 92192-1432 1
TUBE,BREATHER OUT-SIDE 92192A 92192-1440 1
WASHER,6.8X11.5X1.0 92200 92200-1461 1
CIRCLIP-TYPE-C 481 481J1400 1
