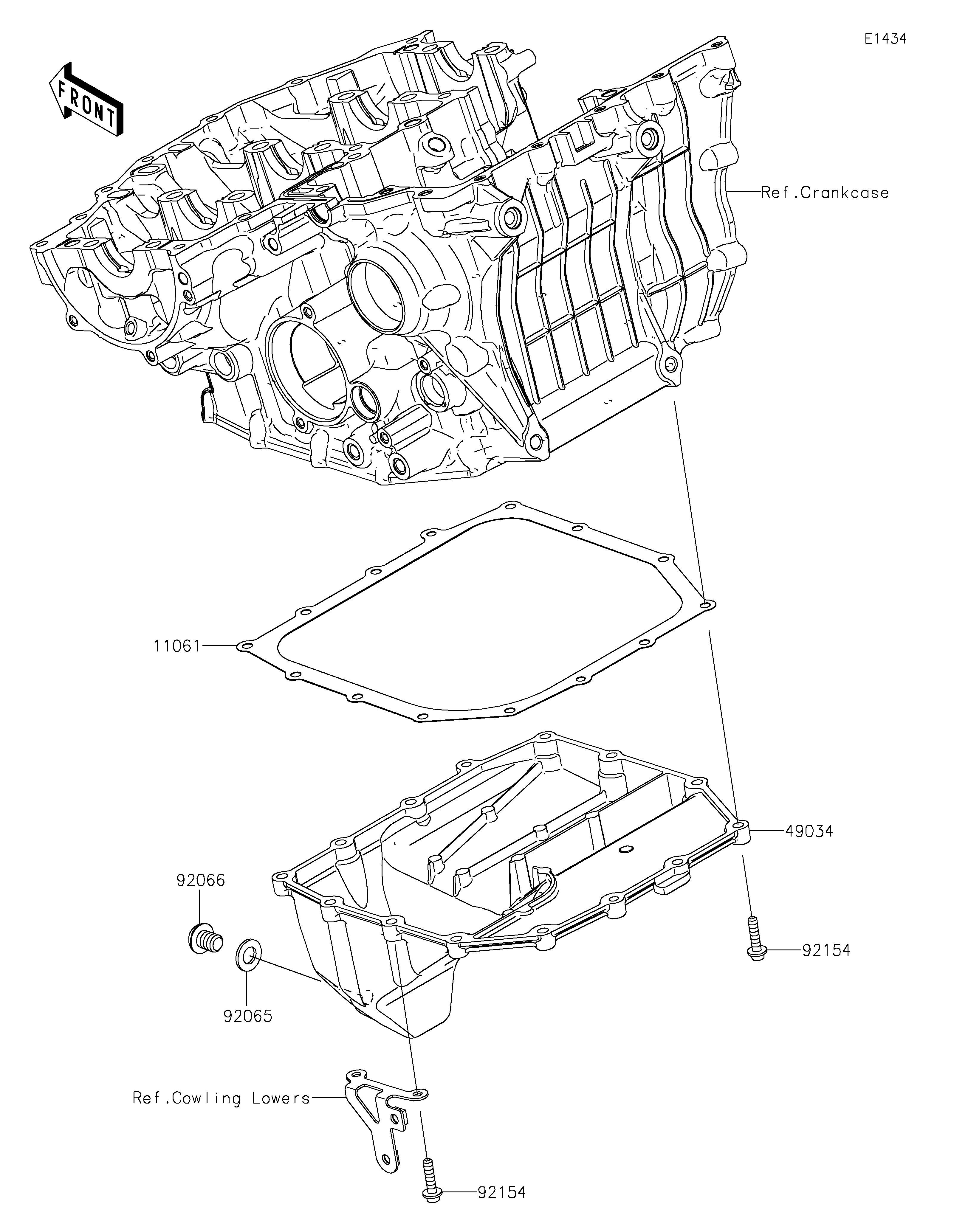

11061
49034
92065
92066
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11061 11061-0943 1
PAN-OIL 49034 49034-0570 1
GASKET,12X22X2 92065 92065-097 1
PLUG,DRAIN 92066 92066-0799 1
BOLT,SOCKET,6X25 92154 92154-1461 14
