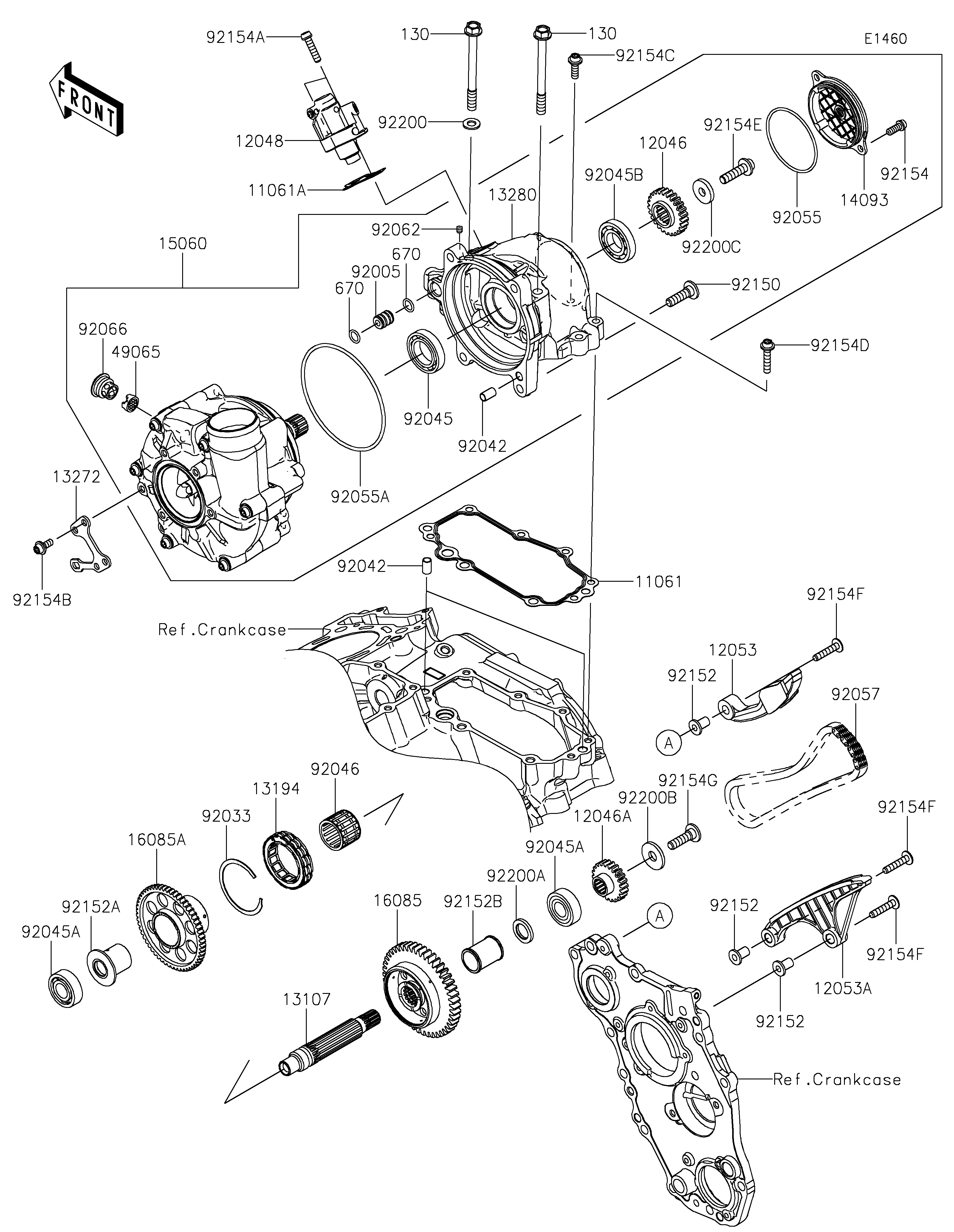

2022 NINJA H2® SX SE - Super Charger

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061A
11061A
12046
12046
12046A
12046A
12048
12048
12053
12053
12053A
12053A
13107
13107
13194
13194
13272
13272
13280
13280
14093
14093
15060
15060
16085
16085
16085A
16085A
49065
49065
92005
92005
92033
92033
92042
92042
92042
92042
92045
92045
92045A
92045A
92045A
92045A
92045B
92045B
92046
92046
92055
92055
92055A
92055A
92057
92057
92062
92062
92066
92066
92150
92150
92152
92152
92152
92152
92152
92152
92152A
92152A
92152B
92152B
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92154E
92154E
92154F
92154F
92154F
92154F
92154F
92154F
92154G
92154G
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
130
130
130
130
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HOLDER 11061 11061-0948 1
GASKET,TENSIONER 11061A 11061-1279 1
SPROCKET,DRIVEN,25T 12046 12046-0584 1
SPROCKET,DRIVE,22T 12046A 12046-0604 1
TENSIONER-ASSY 12048 12048-0108 1
GUIDE-CHAIN,UPP 12053 12053-0249 1
GUIDE-CHAIN,LWR 12053A 12053-0250 1
SHAFT 13107 13107-0863 1
CLUTCH-ONEWAY 13194 13194-0017 1
PLATE 13272 13272-1849 1
HOLDER 13280 13280-1330 1
COVER 14093 14093-1185 1
COMPRESSOR-ASSY 15060 15060-0019 1
GEAR,BALANCER,46T 16085 16085-0670 1
GEAR,STARTER,56T 16085A 16085-0671 1
FILTER-OIL 49065 49065-0041 1
FITTING,OIL LINE 92005 92005-0769 1
RING-SNAP 92033 92033-3731 1
PIN,DOWEL,6.3X8X14 92042 92042-007 3
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,6202ZC3 92045A 92045-0785 2
BEARING-BALL 92045B 92045-1404 1
BEARING-NEEDLE,22X32X24 92046 92046-0622 1
RING-O,2.4X62.6 92055 92055-0790 1
RING-O,104.4X3.1 92055A 92055-1020 1
CHAIN,98XRH2020-78N2 92057 92057-0633 1
NOZZLE 92062 92062-0004 1
PLUG 92066 92066-0821 1
BOLT,8X30 92150 92150-1728 4
COLLAR 92152 92152-1939 3
COLLAR 92152A 92152-1993 1
COLLAR 92152B 92152-2405 1
BOLT,SOCKET,6X16 92154 92154-1454 2
BOLT,SOCKET,6X25 92154A 92154-1458 2
BOLT,SOCKET,6X14 92154B 92154-1460 4
BOLT,SOCKET,6X20 92154C 92154-1667 1
BOLT,SOCKET,6X30 92154D 92154-1668 5
BOLT,SOCKET,8X30 92154E 92154-1679 1
BOLT 92154F 92154-2824 3
BOLT 92154G 92154-2825 1
WASHER,8.2X16X1.6 92200 92200-0047 1
WASHER,15.2X24X3 92200A 92200-1799 1
WASHER,10.2X30X3 92200B 92200-1935 1
WASHER,8.5X24X4.0 92200C 92200-3811 1
BOLT-FLANGED,8X90 130 130CC0890 2
O RING,10MM 670 670D1510 2
