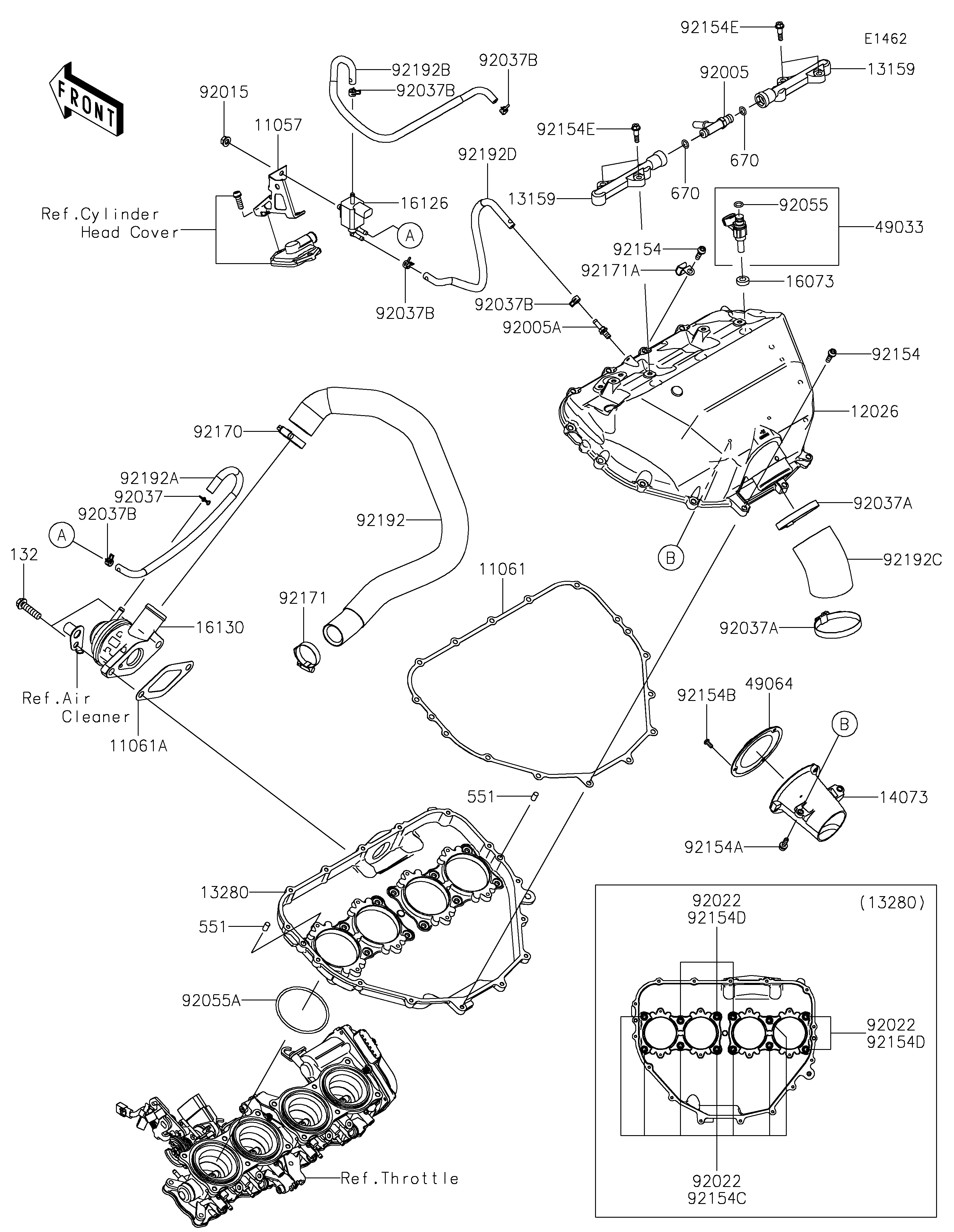

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11057
11061
11061A
12026
13159
13159
13280
14073
16073
16126
16130
49033
49064
92005
92005A
92015
92022
92022
92022
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037B
92055
92055A
92154
92154
92154A
92154B
92154C
92154D
92154D
92154E
92154E
92170
92171
92171A
92192
92192A
92192B
92192C
92192D
132
551
551
670
670
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,SOLENOID VALVE | 11057 | 11057-3820 | 1 | ||
GASKET,CHAMBER | 11061 | 11061-0949 | 1 | ||
GASKET,BLOWOFF VALVE | 11061A | 11061-0950 | 1 | ||
CHAMBER,INTAKE | 12026 | 12026-0023 | 1 | ||
CONNECTOR | 13159 | 13159-0016 | 2 | ||
HOLDER,CHAMBER | 13280 | 13280-0905 | 1 | ||
DUCT,DIFFUSER | 14073 | 14073-0884 | 1 | ||
INSULATOR | 16073 | 16073-0129 | 4 | ||
VALVE,SOLENOID | 16126 | 16126-0751 | 1 | ||
VALVE-ASSY-RELIEF,BLOWOFF | 16130 | 16130-0014 | 1 | ||
NOZZLE-INJECTION | 49033 | 49033-0565 | 4 | ||
FILTER-AIR | 49064 | 49064-0007 | 1 | ||
FITTING | 92005 | 92005-0125 | 1 | ||
FITTING | 92005A | 92005-0826 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
WASHER,5.5X10.5X0.8 | 92022 | 92022-037 | 12 | ||
CLAMP,TUBE | 92037 | 92037-147 | 1 | ||
CLAMP,RESERVE TANK | 92037A | 92037-1586 | 2 | ||
CLAMP,7.8MM | 92037B | 92037-2116 | 5 | ||
RING-O,INJECTION NOZZLE | 92055 | 92055-0124 | 4 | ||
RING-O,65.8X3 | 92055A | 92055-0815 | 4 | ||
BOLT,SOCKET,5X18 | 92154 | 92154-1450 | 15 | ||
BOLT,SOCKET,5X16 | 92154A | 92154-1568 | 2 | ||
BOLT,TORX,4X10 | 92154B | 92154-1790 | 3 | ||
BOLT,FLANGED,5X14 | 92154C | 92154-3884 | 7 | ||
BOLT,FLANGED,5X95 | 92154D | 92154-3886 | 5 | ||
BOLT,SHOULDER,5X20 | 92154E | 92154-3971 | 4 | ||
CLAMP | 92170 | 92170-1036 | 1 | ||
CLAMP | 92171 | 92171-0179 | 1 | ||
CLAMP | 92171A | 92171-0534 | 1 | ||
TUBE,BLOWOFF VALVE-AIR FILTER | 92192 | 92192-1839 | 1 | ||
TUBE,SOLENOID-BLOWOFF VALVE | 92192A | 92192-1841 | 1 | ||
TUBE,SOLENOID-THROTTLE BODY | 92192B | 92192-1842 | 1 | ||
TUBE,DIFFUSER | 92192C | 92192-1865 | 1 | ||
TUBE,SOLENOID-CHAMBER | 92192D | 92192-2497 | 1 | ||
BOLT-FLANGED-SMALL,8X30 | 132 | 132BC0830 | 2 | ||
PIN-DOWEL,6X12 | 551 | 551A0612 | 2 | ||
O RING,8MM | 670 | 670E1508 | 2 |
