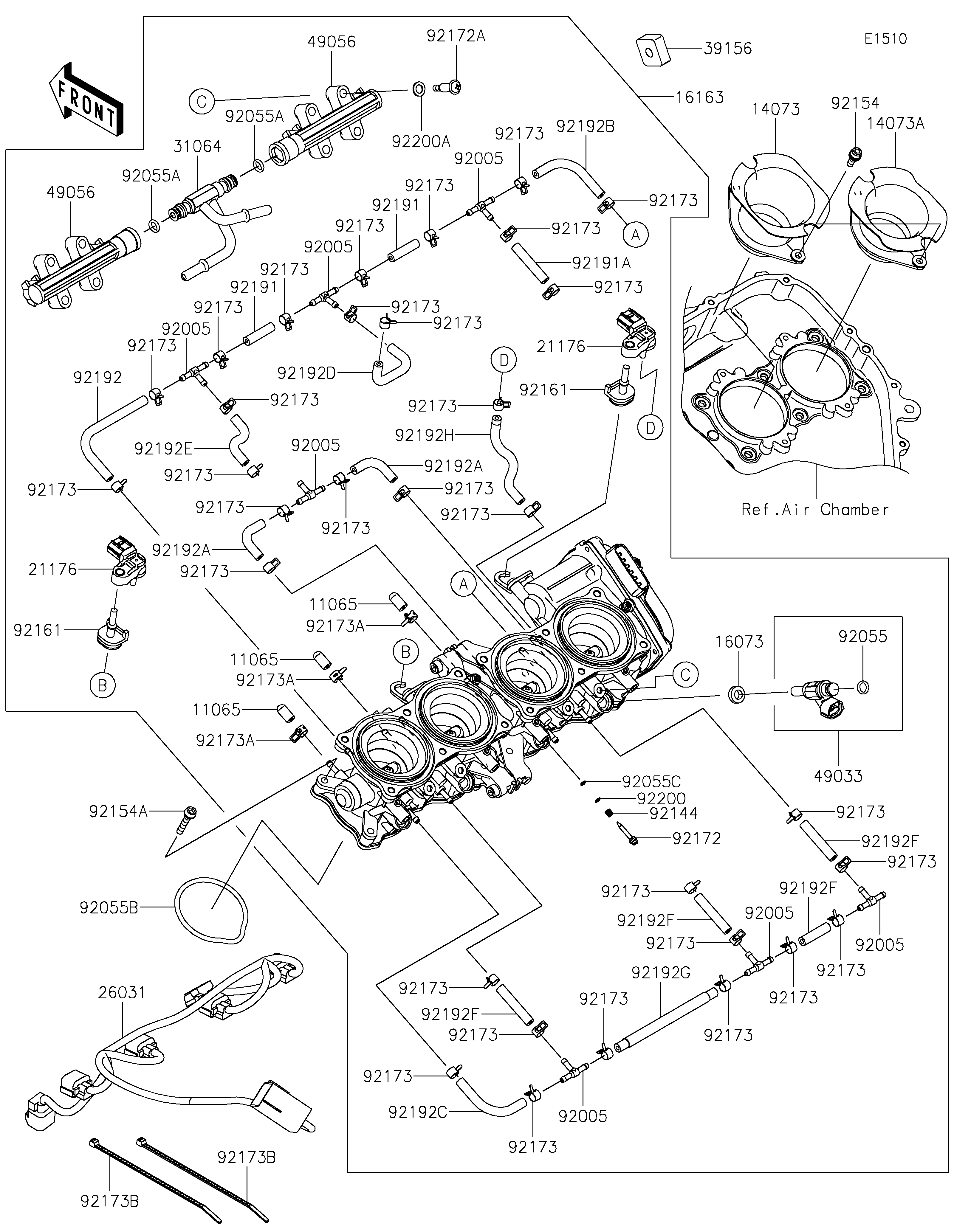

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11065
11065
11065
14073
14073A
16073
16163
21176
21176
26031
31064
39156
49033
49056
49056
92005
92005
92005
92005
92005
92005
92005
92055
92055A
92055A
92055B
92055C
92144
92154
92154A
92161
92161
92172
92172A
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173B
92173B
92191
92191
92191A
92192
92192A
92192A
92192B
92192C
92192D
92192E
92192F
92192F
92192F
92192F
92192G
92192H
92200
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-0904 | 3 | ||
| DUCT,AIR FUNNEL,#2 | 14073 | 14073-0883 | 2 | ||
| DUCT,AIR FUNNEL,#1 | 14073A | 14073-0887 | 2 | ||
| INSULATOR | 16073 | 16073-0825 | 4 | ||
| THROTTLE-ASSY | 16163 | 16163-1257 | 1 | ||
| SENSOR,PRESSURE | 21176 | 21176-0937 | 2 | ||
| HARNESS | 26031 | 26031-3791 | 1 | ||
| PIPE-COMP | 31064 | 31064-0674 | 1 | ||
| PAD | 39156 | 39156-2822 | 1 | ||
| NOZZLE-INJECTION | 49033 | 49033-0564 | 4 | ||
| PIPE-INJECTION | 49056 | 49056-0037 | 2 | ||
| FITTING | 92005 | 92005-1380 | 7 | ||
| RING-O,INJECTION NOZZLE | 92055 | 92055-0124 | 4 | ||
| RING-O | 92055A | 92055-0761 | 2 | ||
| RING-O | 92055B | 92055-0817 | 4 | ||
| RING-O | 92055C | 92055-0840 | 4 | ||
| SPRING,THROTTLE STOP SCREW | 92144 | 92144-1674 | 4 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-1568 | 8 | ||
| BOLT,SOCKET,5X28 | 92154A | 92154-3882 | 7 | ||
| DAMPER | 92161 | 92161-0673 | 2 | ||
| SCREW | 92172 | 92172-0156 | 4 | ||
| SCREW,PIPE INJECTION | 92172A | 92172-0828 | 4 | ||
| CLAMP | 92173 | 92173-1420 | 32 | ||
| CLAMP | 92173A | 92173-1421 | 3 | ||
| CLAMP | 92173B | 92173-1470 | 2 | ||
| TUBE,3.2X7.4X30 | 92191 | 92191-1550 | 2 | ||
| TUBE,3.2X7.4X40 | 92191A | 92191-1551 | 1 | ||
| TUBE,3.2X7.4X115 | 92192 | 92192-0131 | 1 | ||
| TUBE,3.2X7.4X45 | 92192A | 92192-1445 | 2 | ||
| TUBE,3.2X7.4X75 | 92192B | 92192-1446 | 1 | ||
| TUBE,3.5X7.5X70 | 92192C | 92192-1447 | 1 | ||
| TUBE | 92192D | 92192-1492 | 1 | ||
| TUBE | 92192E | 92192-1493 | 1 | ||
| TUBE,3.5X7.5X40 | 92192F | 92192-1494 | 4 | ||
| TUBE,3.5X7.5X115 | 92192G | 92192-1495 | 1 | ||
| TUBE | 92192H | 92192-2481 | 1 | ||
| WASHER,PILOT AIR SCREW | 92200 | 92200-1564 | 4 | ||
| WASHER | 92200A | 92200-3807 | 4 |
