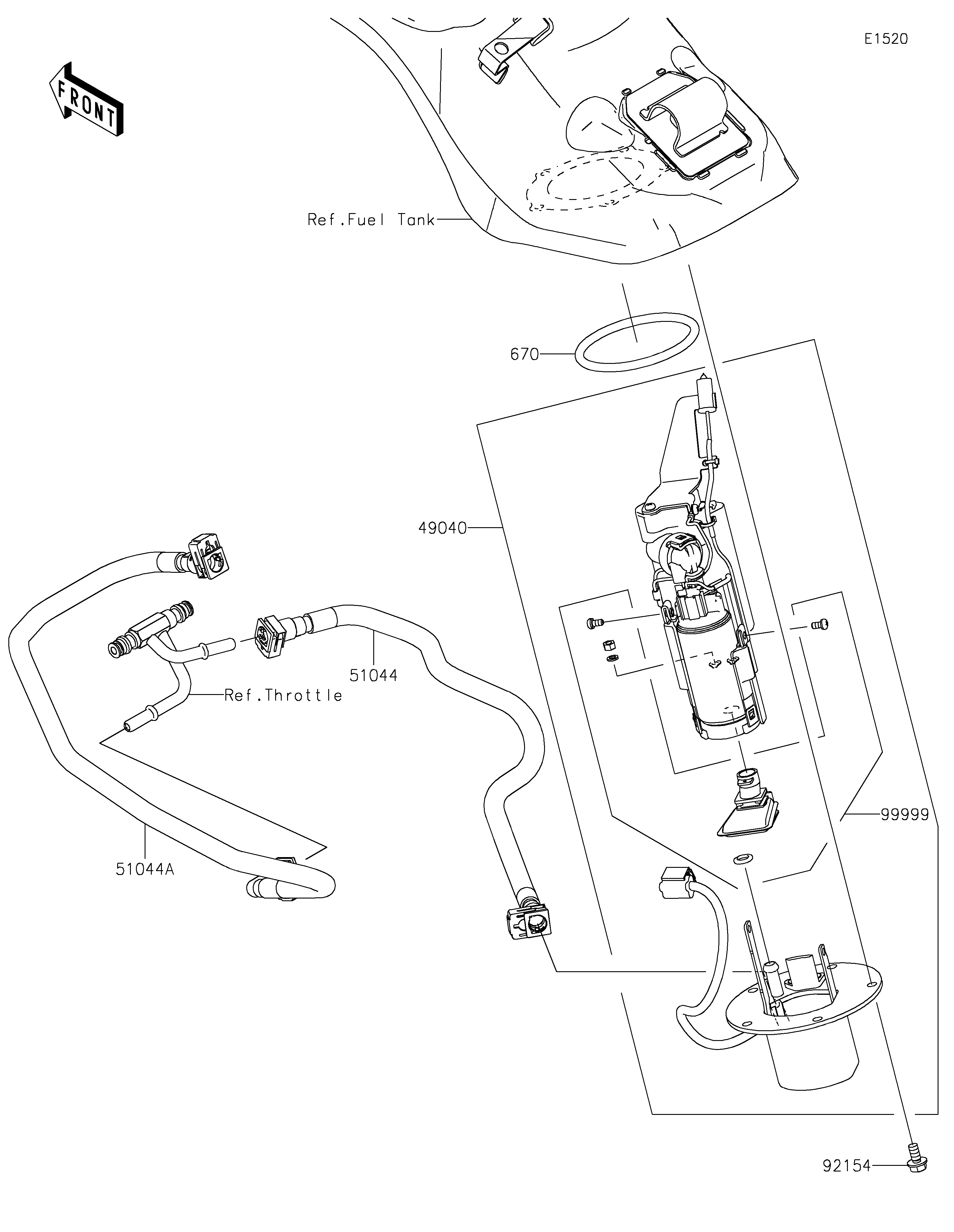

49040
51044
51044A
92154
99999
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-FUEL 49040 49040-0785 1
TUBE-ASSY,FUEL,THROTTLE BODY 51044 51044-0876 1
TUBE-ASSY,FUEL,TOP INJECTION 51044A 51044-0877 1
BOLT,FLANGED,6X12 92154 92154-1848 5
KIT,FUEL FILTER 99999 99999-0520 1
O RING 670 670E5075 1
