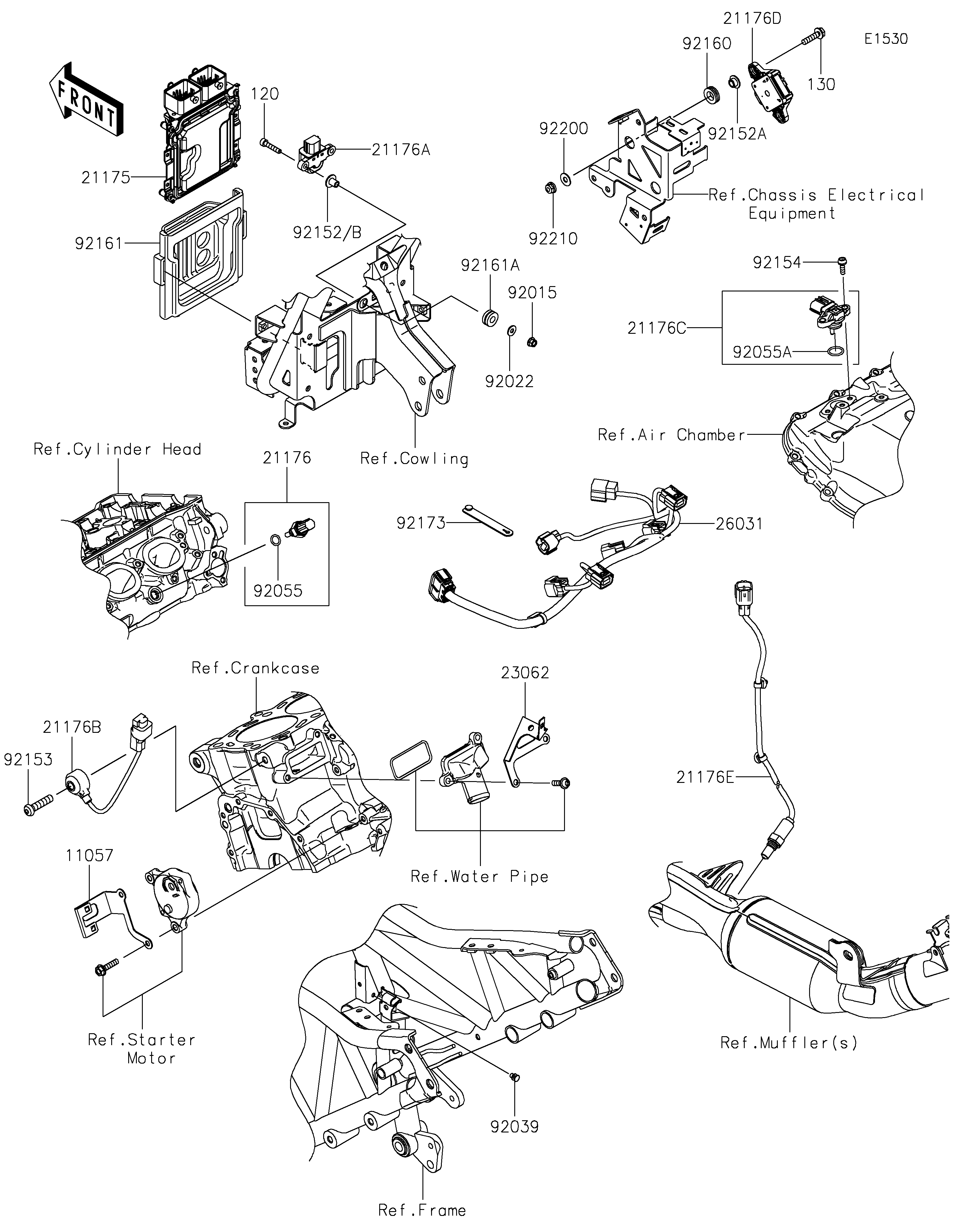

2022 NINJA H2® SX SE - Fuel Injection

DOWNLOAD PDF
SELECT A NEW PART
11057
21175
21176
21176A
21176B
21176C
21176D
21176E
23062
26031
92015
92022
92039
92055
92055A
92152
92152A
92153
92154
92160
92161
92161A
92173
92200
92210
120
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STARTER 11057 11057-1655 1
CONTROL UNIT-ELECTRONIC 21175 21175-1721 1
SENSOR,WATER TEMP 21176 21176-0009 1
SENSOR,VEHICLE-DOWN 21176A 21176-0026 1
SENSOR,KNOCK 21176B 21176-0788 1
SENSOR,INTAKE TEMP&PRESSURE 21176C 21176-0982 1
SENSOR,GYRO 21176D 21176-1126 1
SENSOR,OXYGEN,FRONT 21176E 21176-1132 1
BRACKET-COMP,WATER PIPE 23062 23062-1154 1
HARNESS 26031 26031-2963 1
NUT,LOCK,FLANGED,5MM 92015 92015-1752 2
WASHER,5.2X13X1 92022 92022-1380 2
RIVET,PLASTI 92039 92039-0773 1
RING-O,9.5X1.9 92055 92055-0016 1
RING-O 92055A 92055-0842 1
COLLAR 92152 92152-2843 2
COLLAR 92152A 92152-2867 2
BOLT,SOCKET,8X35 92153 92153-0419 1
BOLT,SOCKET,5X16 92154 92154-1449 2
DAMPER 92160 92160-1278 2
DAMPER,ECU 92161 92161-2400 1
DAMPER 92161A 92161-2435 2
CLAMP 92173 92173-2194 1
WASHER,6.5X16X1.0 92200 92200-3712 2
NUT,LOCK,FLANGED,6MM 92210 92210-0303 2
BOLT-SOCKET,5X25 120 120R0525 2
BOLT-FLANGED,6X25 130 130BA0625 2
