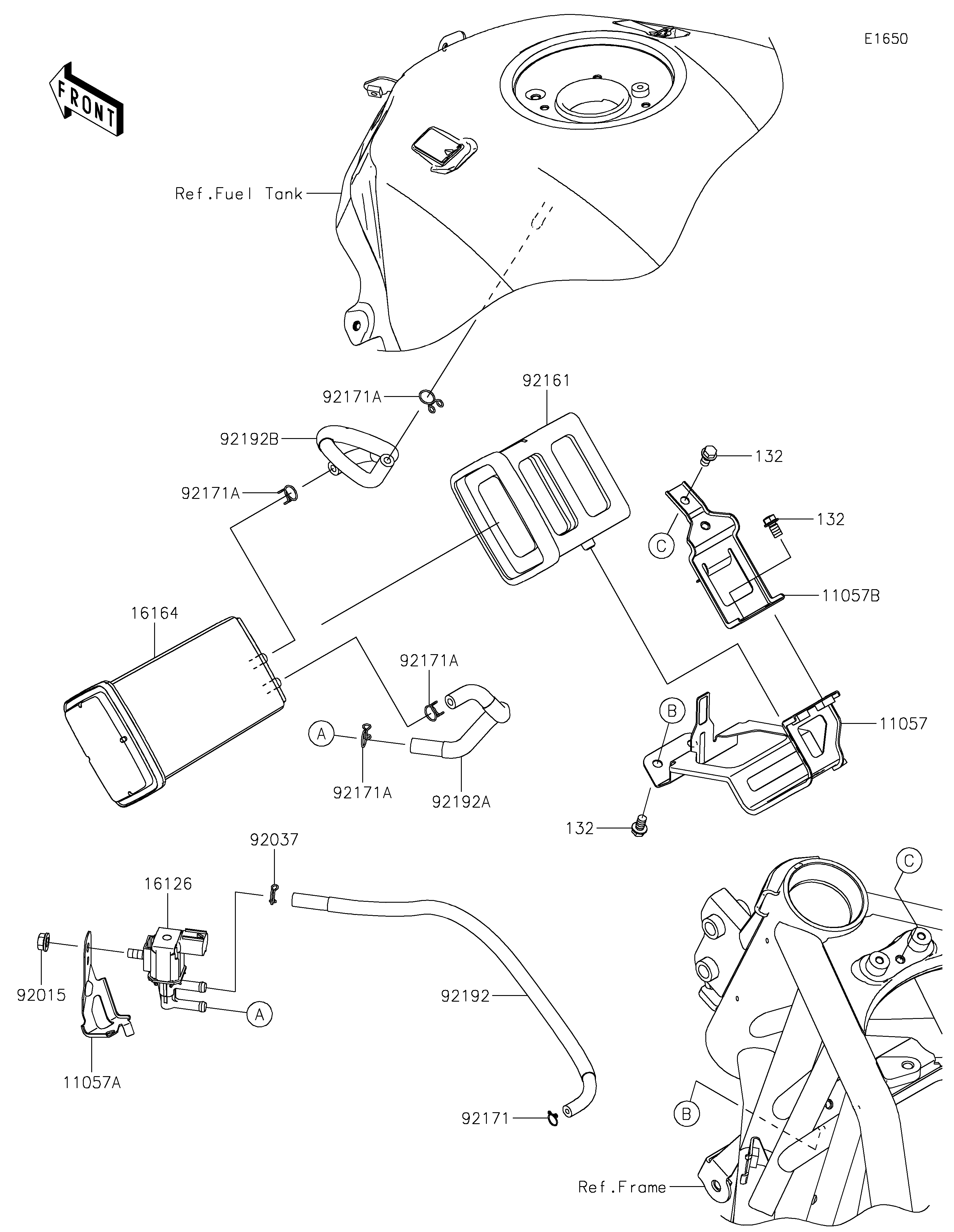

2022 NINJA H2® SX SE - Fuel Evaporative System
11057
11057A
11057B
16126
16164
92015
92037
92161
92171
92171A
92171A
92171A
92171A
92192
92192A
92192B
132
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER,LWR | 11057 | 11057-1202 | 1 | ||
| BRACKET,PVC VALVE | 11057A | 11057-1204 | 1 | ||
| BRACKET,CANISTER,UPP | 11057B | 11057-7256 | 1 | ||
| VALVE,PCV | 16126 | 16126-0731 | 1 | ||
| CANISTER | 16164 | 16164-0012 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| CLAMP | 92037 | 92037-1712 | 1 | ||
| DAMPER,CANISTER | 92161 | 92161-1715 | 1 | ||
| CLAMP | 92171 | 92171-0573 | 1 | ||
| CLAMP | 92171A | 92171-0718 | 4 | ||
| TUBE,THROTTLE BODY-PVC VALVE | 92192 | 92192-1830 | 1 | ||
| TUBE,CANISTER-PVC VALVE | 92192A | 92192-1831 | 1 | ||
| TUBE,CANISTER-FUEL TANK | 92192B | 92192-1832 | 1 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 5 |
| BRACKET,CANISTER,LWR | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,PVC VALVE | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,CANISTER,UPP | |
| REF # | 11057B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,PCV | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CANISTER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| TUBE,THROTTLE BODY-PVC VALVE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CANISTER-PVC VALVE | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CANISTER-FUEL TANK | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
