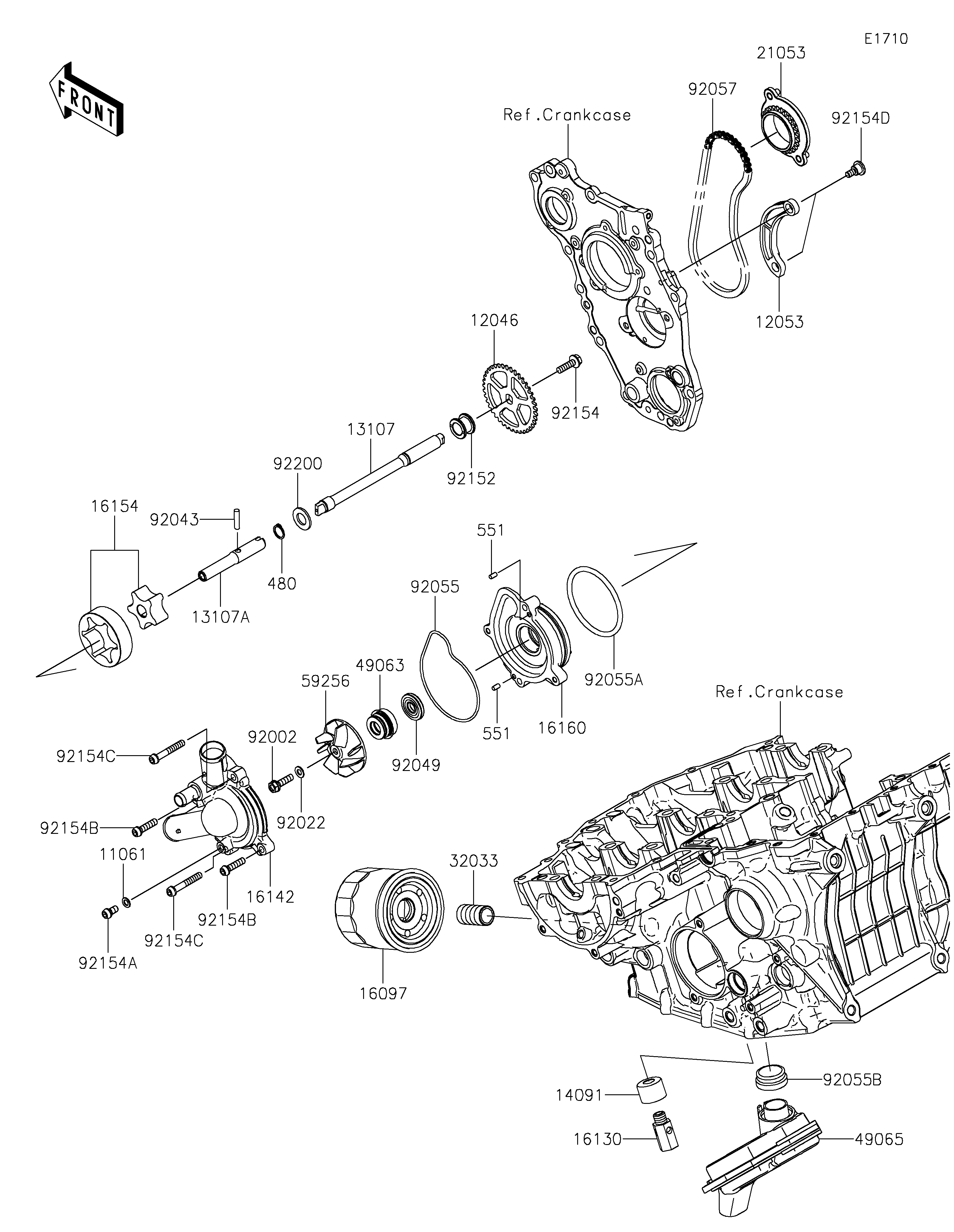

2022 NINJA H2® SX SE - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
11061
12046
12053
13107
13107A
14091
16097
16130
16142
16154
16160
21053
32033
49063
49065
59256
92002
92022
92043
92049
92055
92055A
92055B
92057
92152
92154
92154A
92154B
92154B
92154C
92154C
92154D
92200
480
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-0107 1
SPROCKET,PUMP DRIVEN,39T 12046 12046-0602 1
GUIDE-CHAIN 12053 12053-0302 1
SHAFT,RH 13107 13107-0809 1
SHAFT,LH 13107A 13107-0810 1
COVER,VALVE 14091 14091-0497 1
FILTER-ASSY-OIL 16097 16097-0009 1
VALVE-ASSY-RELIEF 16130 16130-0005 1
COVER-PUMP,WATER 16142 16142-0733 1
ROTOR-PUMP,OIL 16154 16154-0723 1
BODY,WATER PUMP 16160 16160-0799 1
SPROCKET-ASSY,PUMP DRIVE,27T 21053 21053-0009 1
PIPE,OIL FILTER 32033 32033-1535 1
SEAL-MECHANICAL 49063 49063-1055 1
FILTER-OIL 49065 49065-0037 1
IMPELLER 59256 59256-0011 1
BOLT,6X22 92002 92002-1154 1
WASHER,6.1X12X1 92022 92022-077 1
PIN,5X21.8 92043 92043-1518 1
SEAL-OIL 92049 92049-0778 1
RING-O,WATER PUMP 92055 92055-0208 1
RING-O,68.2X2.4 92055A 92055-1338 1
RING-O,OIL FILTER 92055B 92055-1503 1
CHAIN,92RH2005-76M 92057 92057-0635 1
COLLAR 92152 92152-1935 1
BOLT,FLANGED,6X22 92154 92154-0387 1
BOLT,SOCKET,6X12 92154A 92154-1453 1
BOLT,SOCKET,6X25 92154B 92154-1457 2
BOLT,SOCKET,6X40 92154C 92154-1459 2
BOLT 92154D 92154-1651 2
WASHER,13X24X2 92200 92200-0451 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
PIN-DOWEL,4X8 551 551A0408 2
