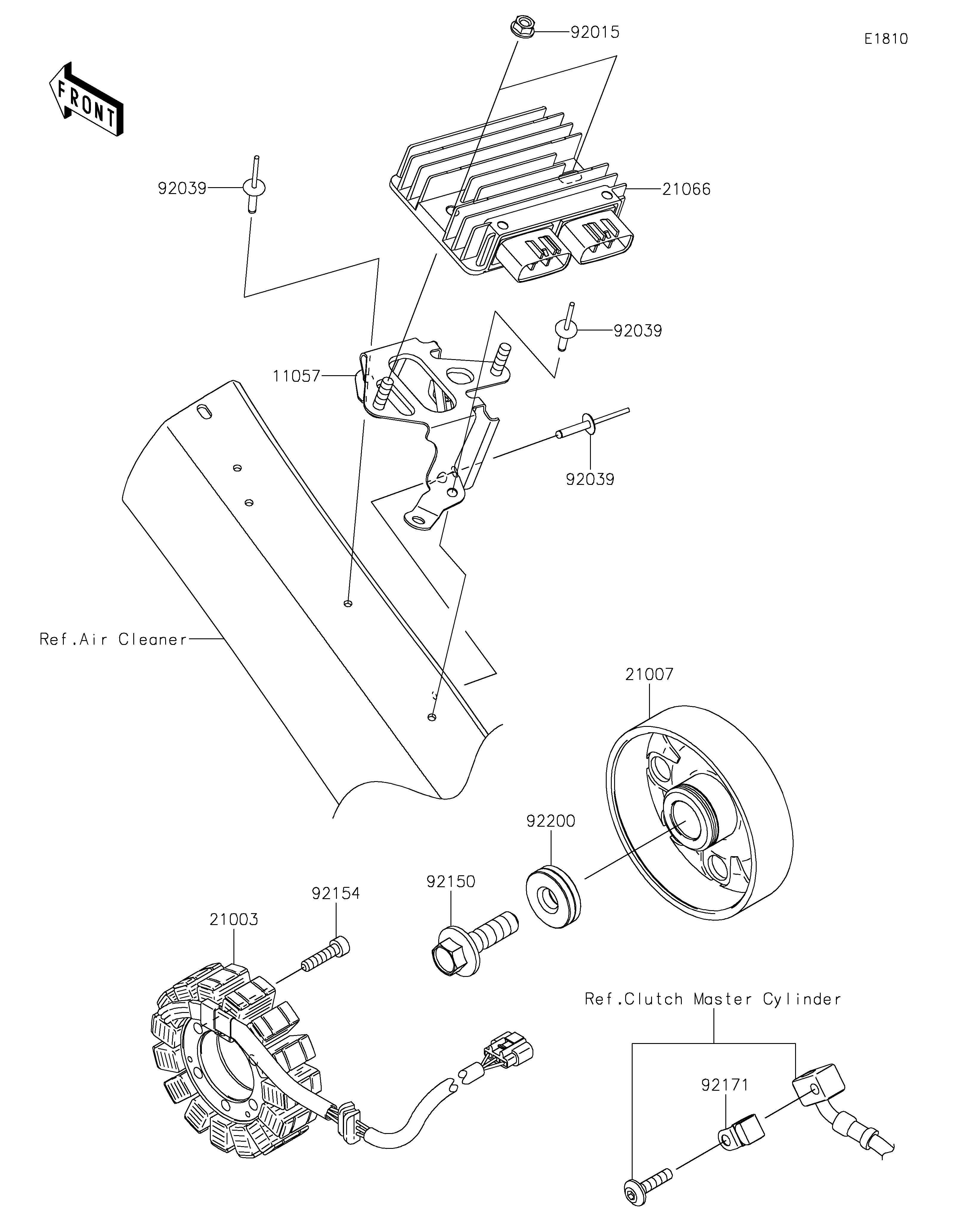

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REGULATOR 11057 11057-7258 1
STATOR 21003 21003-0181 1
ROTOR 21007 21007-0611 1
REGULATOR-VOLTAGE 21066 21066-0745 1
NUT,FLANGED,6MM 92015 92015-1367 2
RIVET 92039 92039-0039 3
BOLT,12X40 92150 92150-1717 1
BOLT,SOCKET,6X25 92154 92154-0477 4
CLAMP 92171 92171-0534 1
WASHER,12X34X9 92200 92200-0369 1
