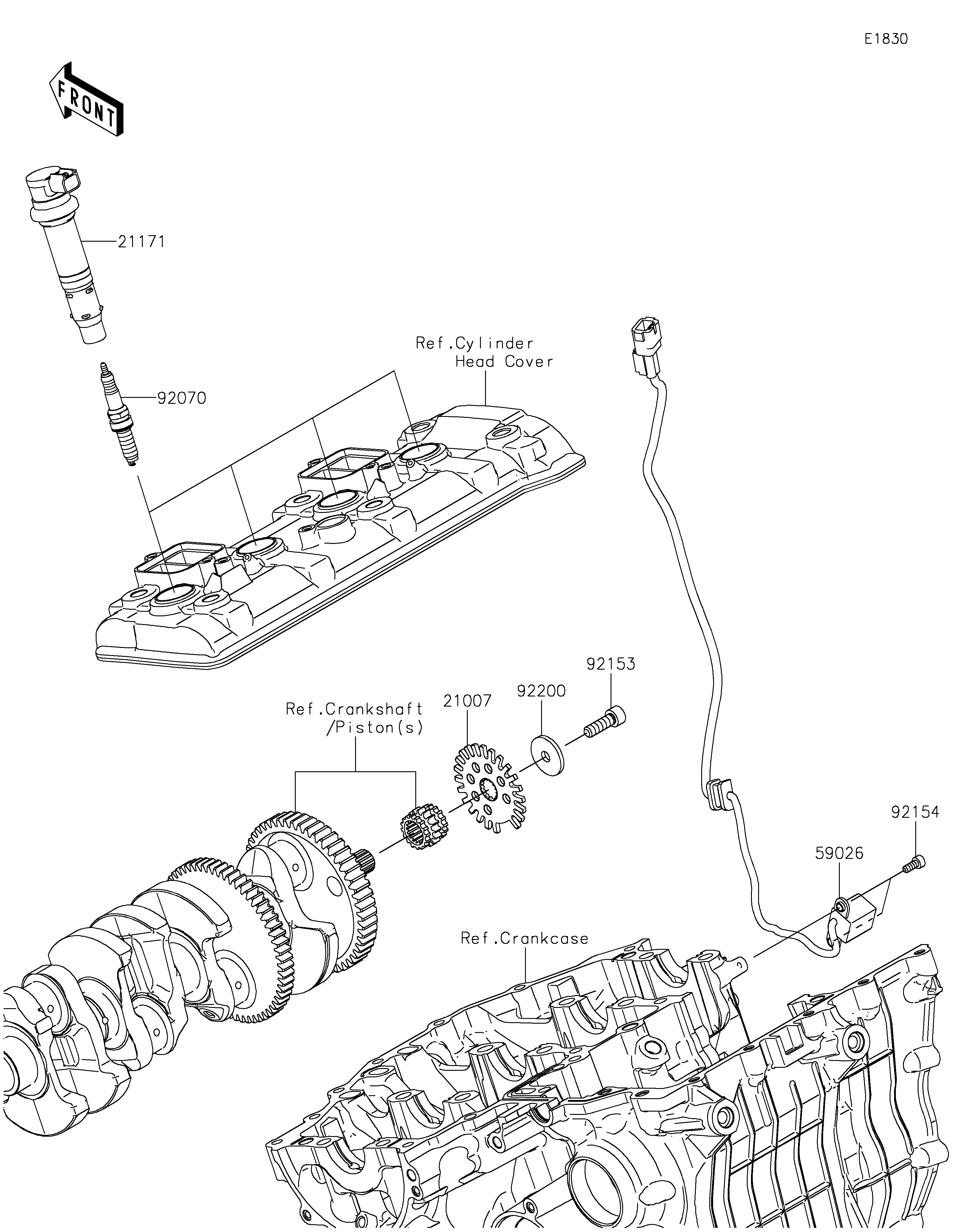

21007
21171
59026
92070
92153
92154
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,PULSING 21007 21007-0622 1
COIL-ASSY-IGNITION 21171 21171-0732 4
COIL-PULSING 59026 59026-0047 1
PLUG-SPARK,SILMAR9E9(NGK) 92070 92070-0720 4
BOLT,8X25 92153 92153-1191 1
BOLT,SOCKET,5X12 92154 92154-1540 2
WASHER,8.2X30X3 92200 92200-2142 1
