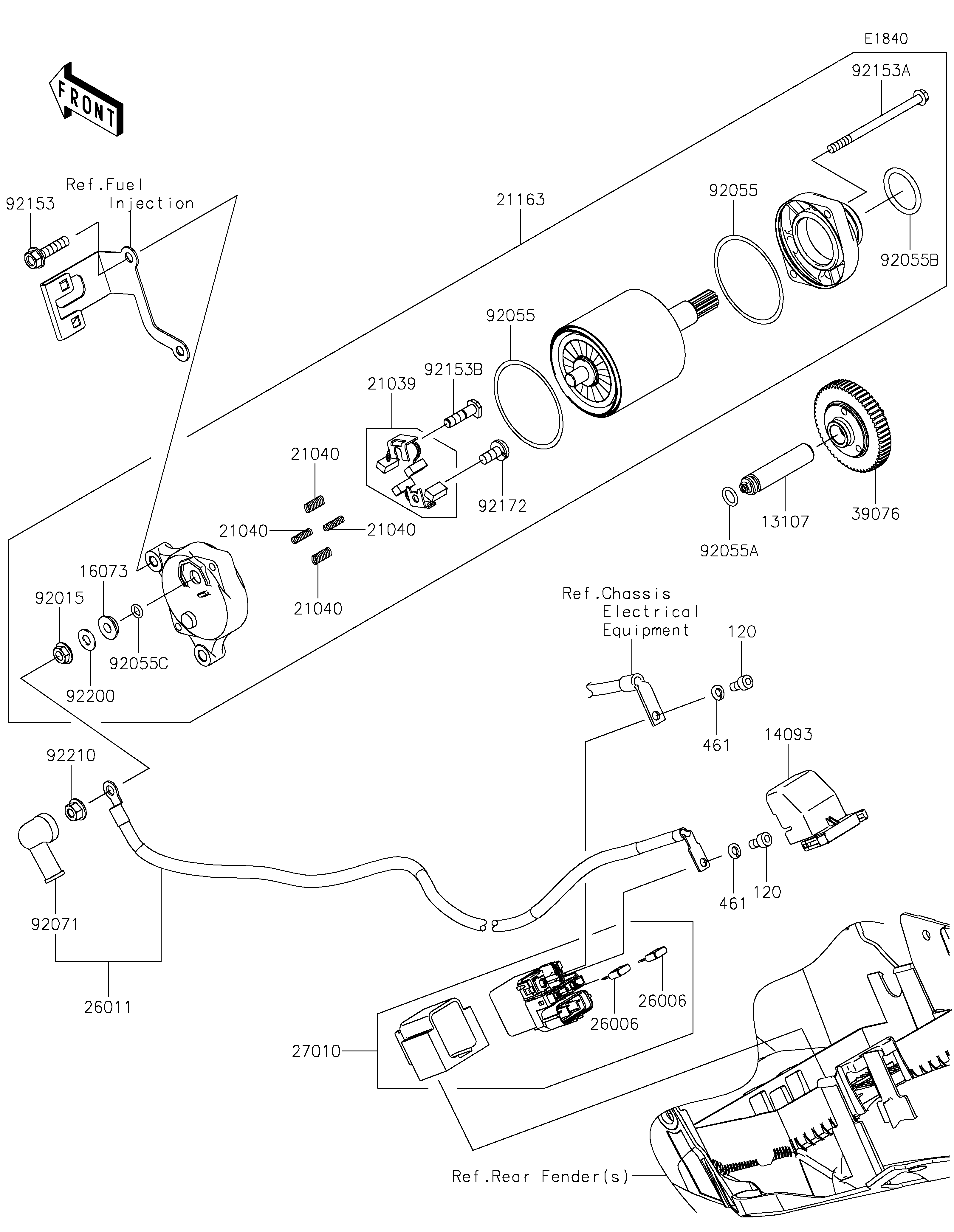

2022 NINJA H2® SX SE - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13107
14093
16073
21039
21040
21040
21040
21040
21163
26006
26006
26011
27010
39076
92015
92055
92055
92055A
92055B
92055C
92071
92153
92153A
92153B
92172
92200
92210
120
120
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT 13107 13107-0813 1
COVER 14093 14093-1207 1
INSULATOR 16073 16073-0053 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0767 1
FUSE,MINI BLADE,30A,GREEN 26006 26006-1080 2
WIRE-LEAD,STARTER 26011 26011-0978 1
SWITCH 27010 27010-0965 1
LIMITER 39076 39076-0025 1
NUT,STARTER MOTOR 92015 92015-1476 1
RING-O 92055 92055-0136 2
RING-O,8.8X1.9 92055A 92055-099 1
RING-O 92055B 92055-1276 1
RING-O,4.5X2.0 92055C 92055-1370 1
GROMMET 92071 92071-0024 1
BOLT,FLANGED,6X25 92153 92153-1592 2
BOLT 92153A 92153-1850 2
BOLT 92153B 92153-1866 1
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
NUT,6MM 92210 92210-0188 1
BOLT-SOCKET,5X10 120 120CB0510 2
WASHER-SPRING,5MM 461 461DA0500 2
