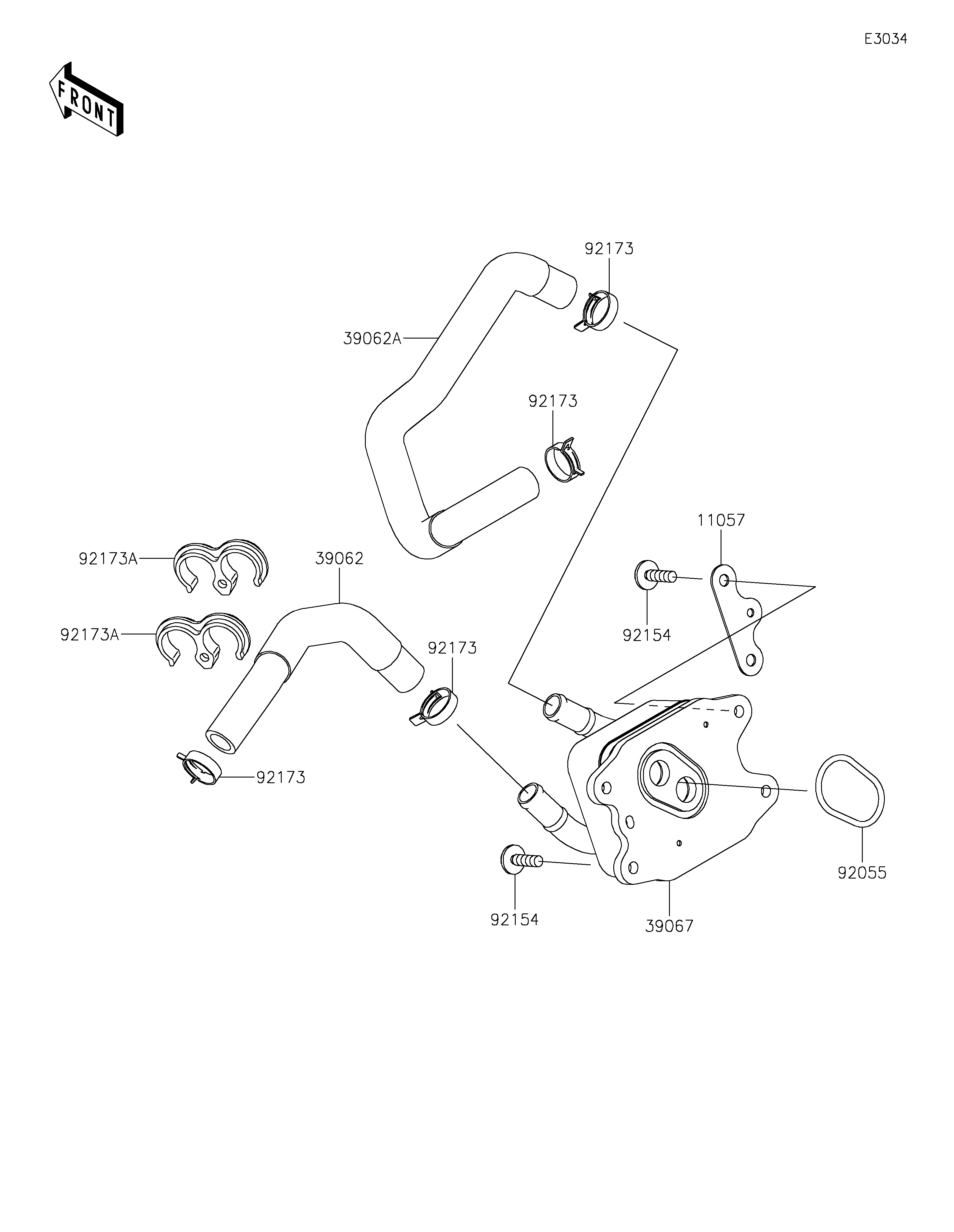

11057
39062
39062A
39067
92055
92154
92154
92173
92173
92173
92173
92173A
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-7257 1
HOSE-COOLING,W/PIPE-OIL COOLER 39062 39062-0731 1
HOSE-COOLING,W/PUMP-OIL COOLER 39062A 39062-0812 1
COOLER-OIL 39067 39067-0022 1
RING-O,39.4X3.1 92055 92055-1618 1
BOLT,FLANGED,6X22 92154 92154-0403 4
CLAMP,20.2MM 92173 92173-1361 4
CLAMP,COOLING HOSE 92173A 92173-1366 2
