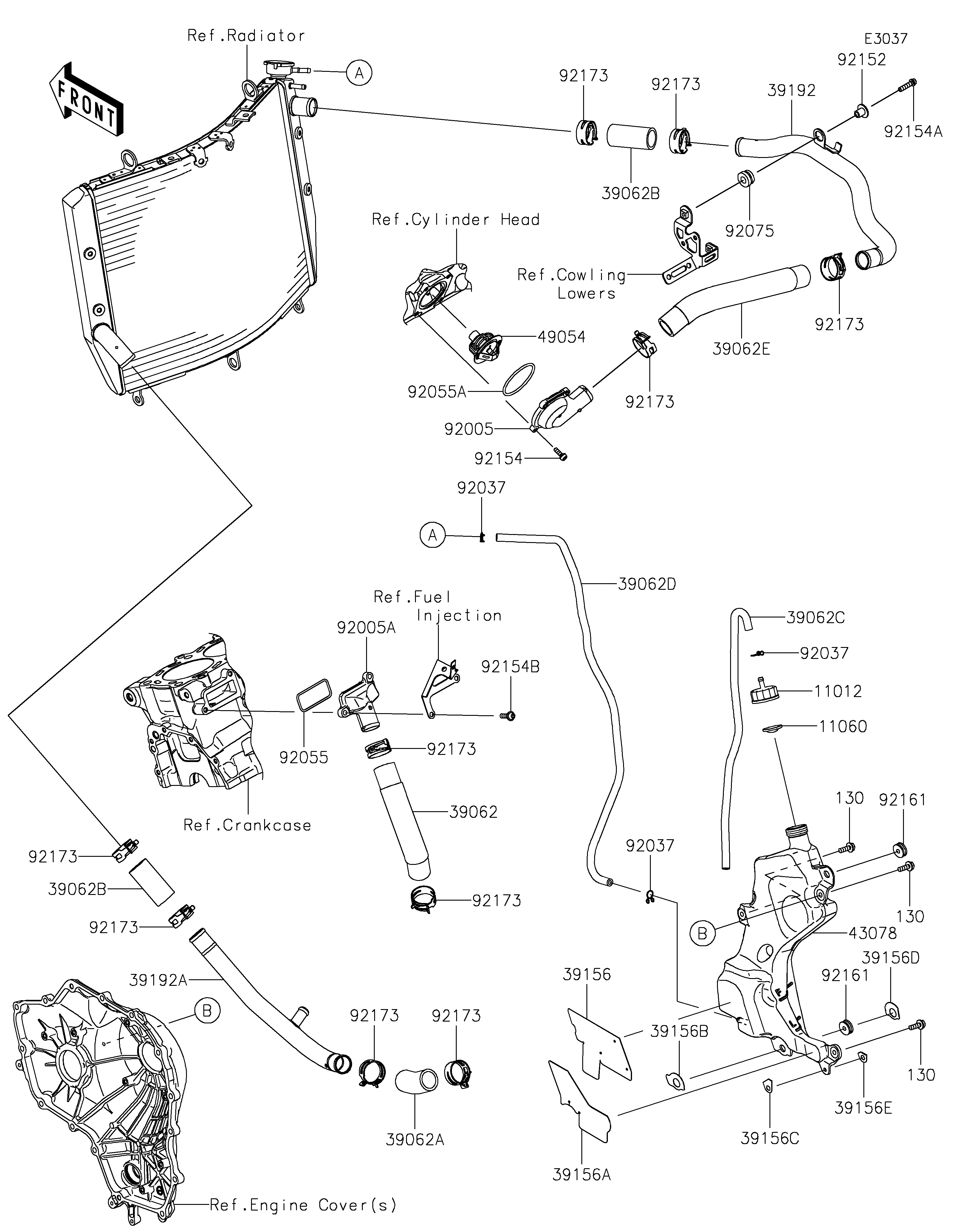

2022 NINJA H2® SX SE - Water Pipe

DOWNLOAD PDF
SELECT A NEW PART
11012
11060
39062
39062A
39062B
39062B
39062C
39062D
39062E
39156
39156A
39156B
39156C
39156D
39156E
39192
39192A
43078
49054
92005
92005A
92037
92037
92037
92055
92055A
92075
92152
92154
92154A
92154B
92161
92161
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1854 1
GASKET,RESERVOIR TANK CAP 11060 11060-1349 1
HOSE-COOLING,W/PUMP-FITTING 39062 39062-0681 1
HOSE-COOLING,W/PIPE-W/PUMP 39062A 39062-0683 1
HOSE-COOLING,RADIATOR-W/PIPE 39062B 39062-0701 2
HOSE-COOLING 39062C 39062-0787 1
HOSE-COOLING 39062D 39062-0788 1
HOSE-COOLING,FITTING-W/PIPE 39062E 39062-0789 1
PAD 39156 39156-2389 1
PAD 39156A 39156-2390 1
PAD 39156B 39156-2391 1
PAD 39156C 39156-2392 1
PAD 39156D 39156-2393 1
PAD 39156E 39156-2394 1
PIPE-WATER,RADIATOR,RH-HOSE 39192 39192-0646 1
PIPE-WATER,RADIATOR,LH-W/PUMP 39192A 39192-0648 1
RESERVOIR 43078 43078-0592 1
THERMOSTAT 49054 49054-0004 1
FITTING,THERMO COVER 92005 92005-0887 1
FITTING,CYLINDER 92005A 92005-0888 1
CLAMP,TUBE 92037 92037-147 3
RING-O 92055 92055-0809 1
RING-O,54.5X2.6 92055A 92055-0810 1
DAMPER,RUBBER 92075 92075-1123 1
COLLAR 92152 92152-2112 1
BOLT,SOCKET,5X16 92154 92154-1449 4
BOLT,SOCKET,6X25 92154A 92154-1457 1
BOLT,SOCKET,6X20 92154B 92154-1499 2
DAMPER,6X20X7.5 92161 92161-1991 2
CLAMP,34MM 92173 92173-1360 10
BOLT-FLANGED,6X18 130 130BA0618 3
