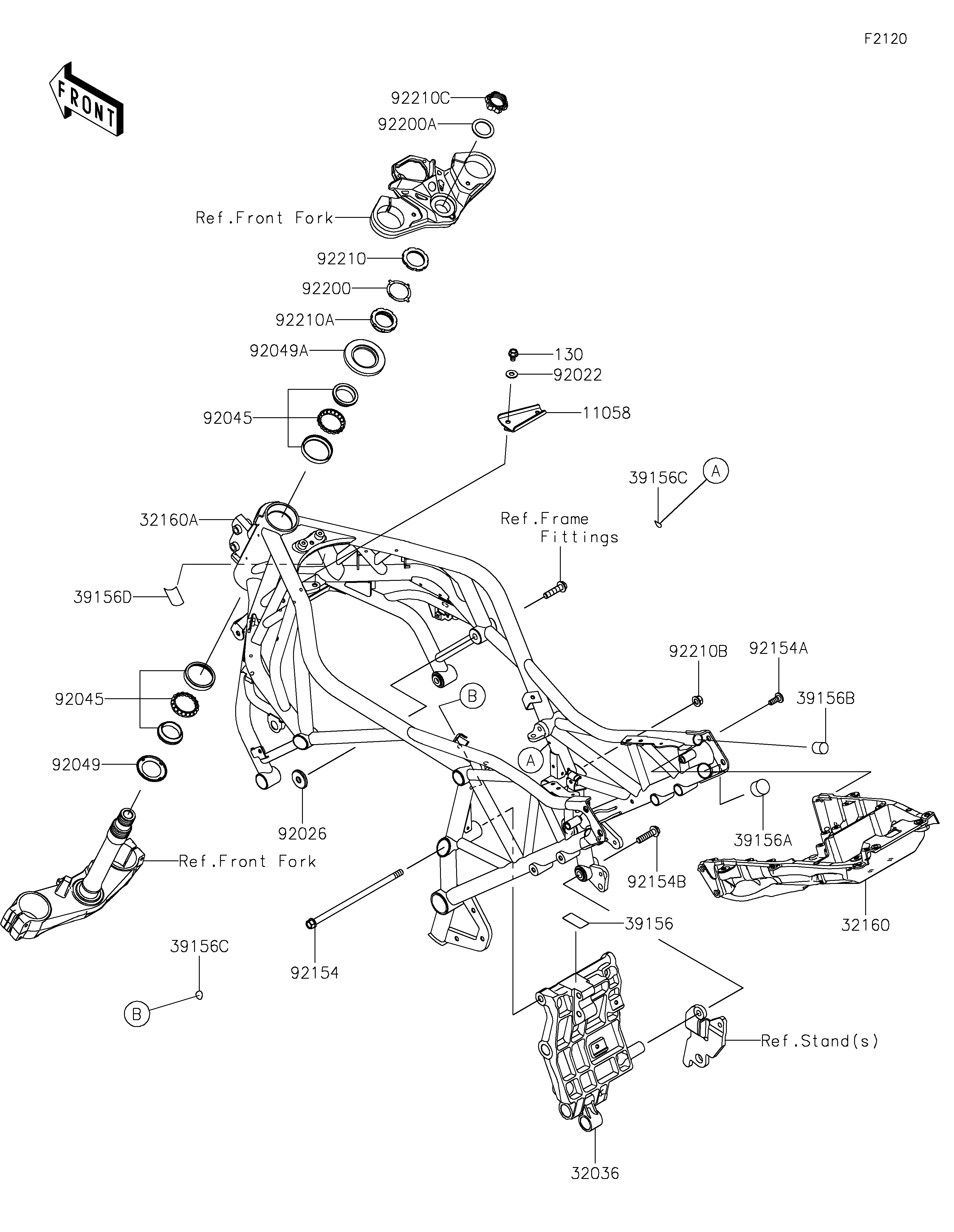

2022 NINJA H2® SX SE - Frame

DOWNLOAD PDF
SELECT A NEW PART
11058
32036
32160
32160A
39156
39156A
39156B
39156C
39156C
39156D
92022
92026
92045
92045
92049
92049A
92154
92154A
92154B
92200
92200A
92210
92210A
92210B
92210C
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REINFORCE 11058 11058-0562 1
BRACKET-SWINGARM,M.F.S.BLACK 32036 32036-0406-46R 1
FRAME-COMP,RR 32160 32160-1918 1
FRAME-COMP,MAIN,M.F.S.BLACK 32160A 32160-1991-46R 1
PAD,22X45 39156 39156-1896 1
PAD,27X20 39156A 39156-2500 2
PAD,20X20 39156B 39156-2501 2
PAD,15X0.25 39156C 39156-2712 2
PAD,50X25X0.2 39156D 39156-2818 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 1
SPACER,10.1X35X6 92026 92026-0839 1
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL,DS35X55X4 92049 92049-0022 1
SEAL-OIL,XMH 43 75 6.4J 92049A 92049-1382 1
BOLT,FLANGED,10X223 92154 92154-1556 1
BOLT,SOCKET,8X23 92154A 92154-1901 4
BOLT,FLANGED,10X40 92154B 92154-2924 1
WASHER 92200 92200-0036 1
WASHER,28.5X40X1.6 92200A 92200-0595 1
NUT,35MM 92210 92210-0095 1
NUT,35MM 92210A 92210-0096 1
NUT,LOCK,FLANGED,10MM 92210B 92210-1139 1
NUT,28MM 92210C 92210-1460 1
BOLT-FLANGED,8X12 130 130BB0812 1
