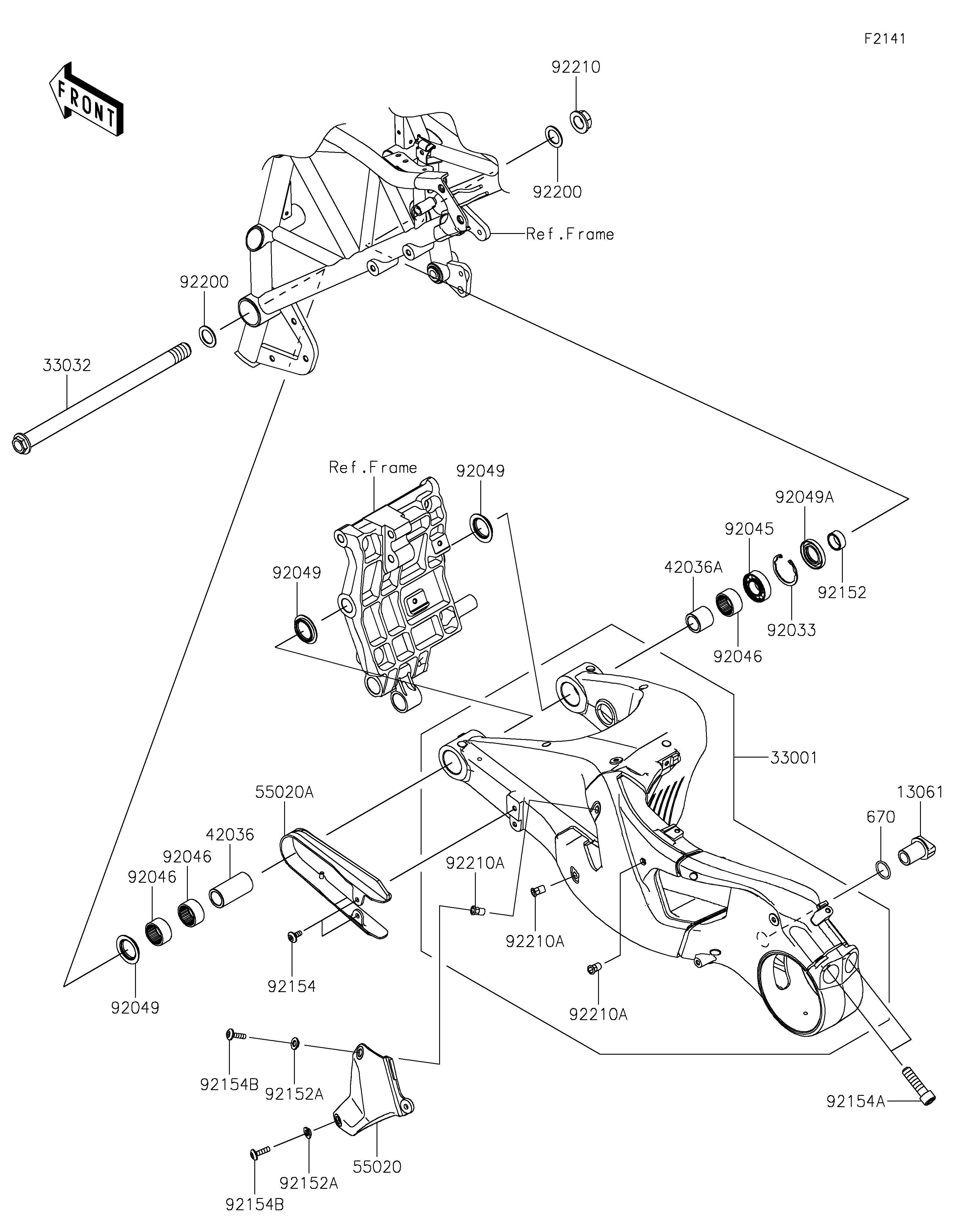

2022 NINJA H2® SX SE - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
13061
33001
33032
42036
42036A
55020
55020A
92033
92045
92046
92046
92046
92049
92049
92049
92049A
92152
92152A
92152A
92154
92154A
92154B
92154B
92200
92200
92210
92210A
92210A
92210A
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS,CALIPER HOLDER 13061 13061-0744 1
ARM-COMP-SWING,M.F.S.BLACK 33001 33001-0687-46R 1
SHAFT-SWING ARM,20X313 33032 33032-0049 1
SLEEVE,20.1X28X56.5 42036 42036-0757 1
SLEEVE,20.1X28X25.7 42036A 42036-0762 1
GUARD,HEEL 55020 55020-2200 1
GUARD,CHAIN SLIDER 55020A 55020-2204 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL,28X34X5.7 92049 92049-1181 3
SEAL-OIL,MHSA25X42X6 92049A 92049-1314 1
COLLAR,20.2X25X10.5 92152 92152-1948 1
COLLAR,6.5X16X4.6 92152A 92152-2495 2
BOLT,SOCKET,6X14 92154 92154-1025 2
BOLT,SOCKET,12X45 92154A 92154-1552 2
BOLT,SOCKET,6X22 92154B 92154-1810 2
WASHER,20.5X31X1.5 92200 92200-1791 2
NUT,FLANGED,20MM 92210 92210-0320 1
NUT,POP,6MM,L=16.5 92210A 92210-0324 3
O RING,22MM 670 670B2022 1
