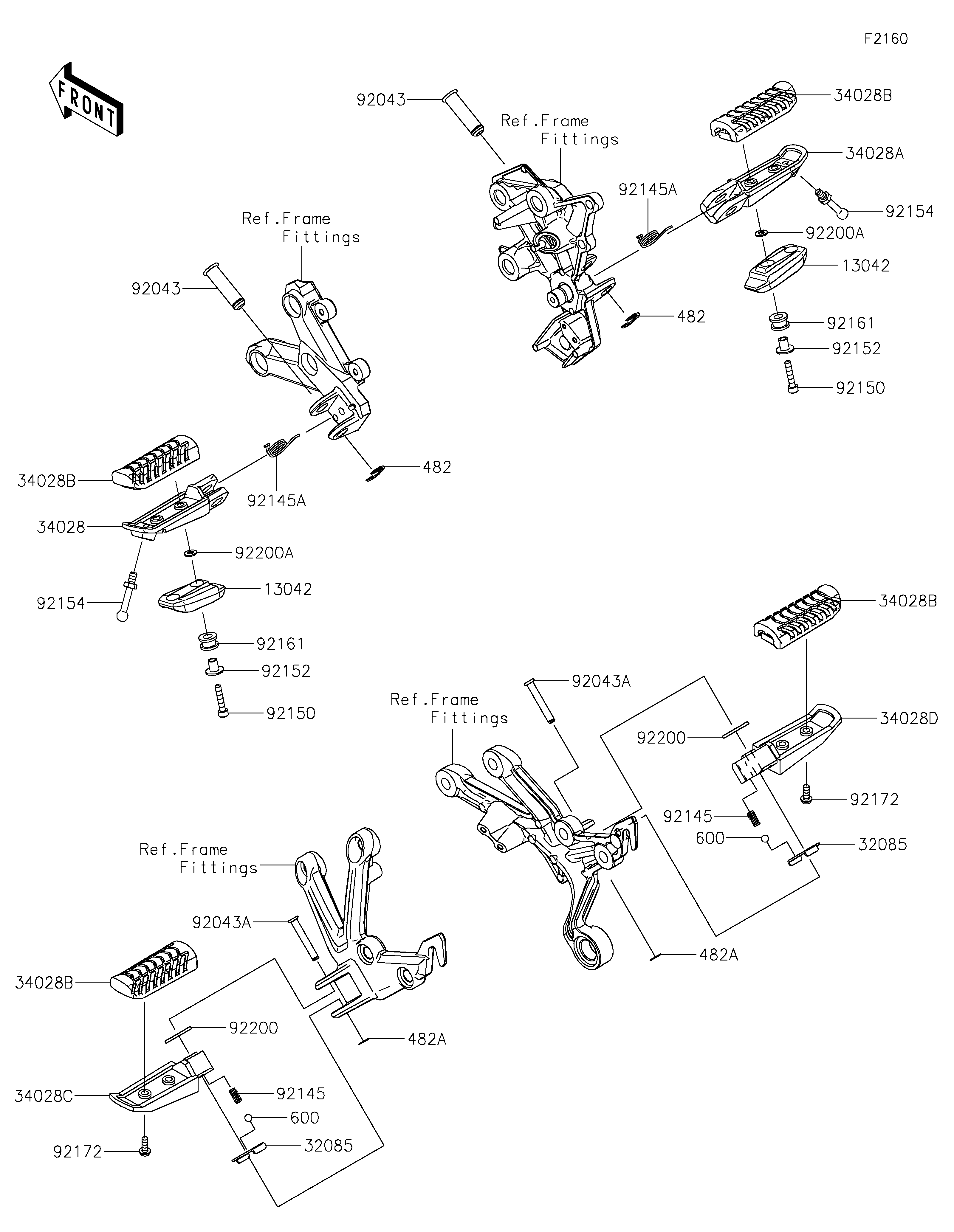

2022 NINJA H2® SX SE - Footrests

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
32085
32085
34028
34028A
34028B
34028B
34028B
34028B
34028C
34028D
92043
92043
92043A
92043A
92145
92145
92145A
92145A
92150
92150
92152
92152
92154
92154
92161
92161
92172
92172
92200
92200
92200A
92200A
482
482
482A
482A
600
600
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,STEP 13042 13042-0773 2
STOPPER,REAR STEP 32085 32085-0047 2
STEP,FR,LH 34028 34028-0327 1
STEP,FR,RH 34028A 34028-0328 1
STEP,RUBBER 34028B 34028-0349 4
STEP,RR,LH 34028C 34028-0377 1
STEP,RR,RH 34028D 34028-0378 1
PIN,12X42.5 92043 92043-1594 2
PIN,6X40 92043A 92043-1595 2
SPRING 92145 92145-1319 4
SPRING 92145A 92145-1828 2
BOLT,SOCKET,5X25 92150 92150-1684 4
COLLAR 92152 92152-1625 4
BOLT,BANK SENSOR,6X10,MEC 92154 92154-3814 2
DAMPER,8X16X8 92161 92161-2082 4
SCREW,5X14 92172 92172-0976 4
WASHER,16X26X2.3 92200 92200-0043 2
WASHER,5.3X11X1 92200A 92200-1929 4
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
BALL-STEEL,1/4 600 600A0800 4
