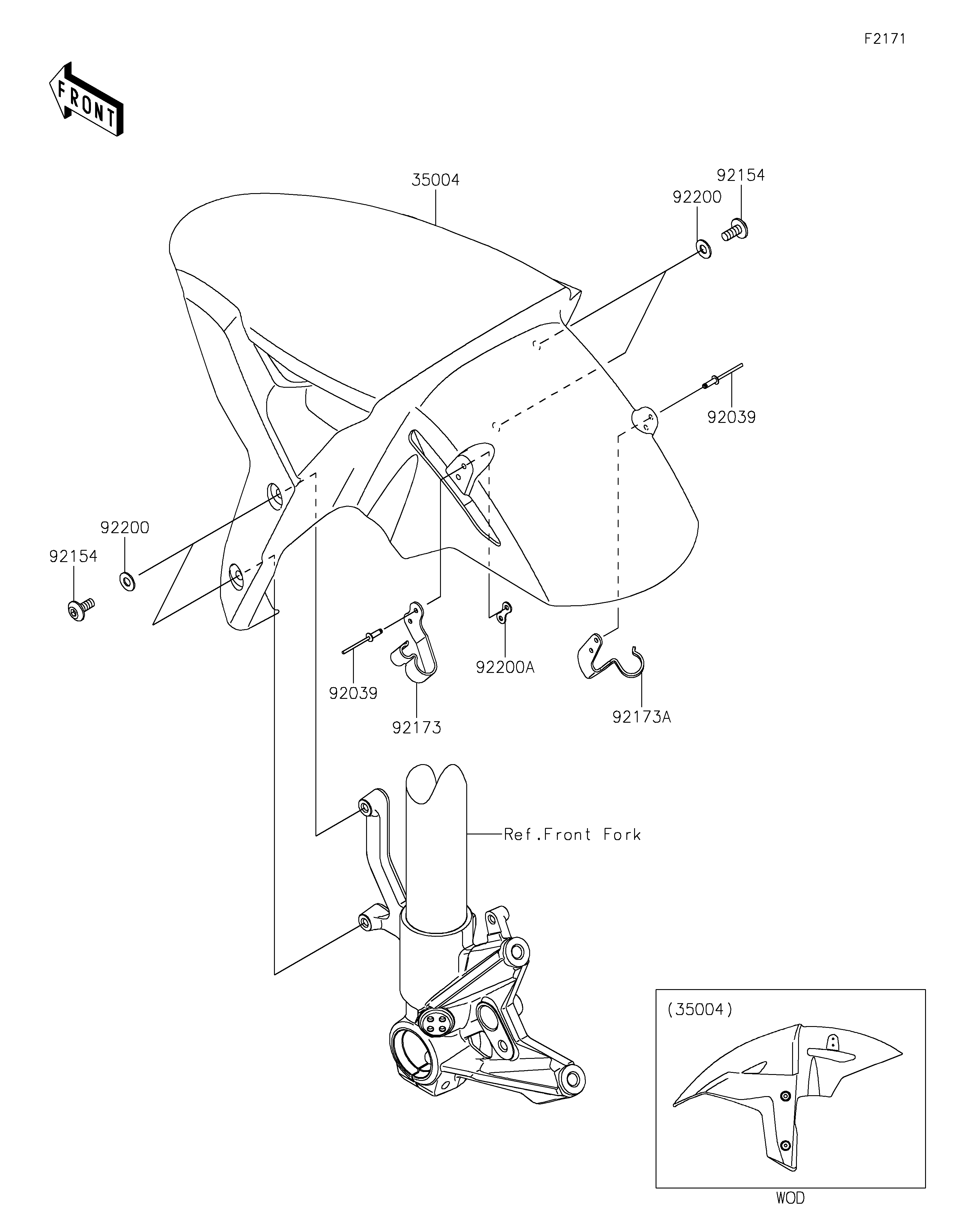

35004
92039
92039
92154
92154
92173
92173A
92200
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,M.D.BLACK 35004 35004-0362-17K 1
RIVET,3.2X9.5 92039 92039-0752 4
BOLT,SOCKET,6X14 92154 92154-0745 4
CLAMP,FENDER,LH 92173 92173-1376 1
CLAMP,FENDER,RH 92173A 92173-1481 1
WASHER,6.5X14X1 92200 92200-1388 4
WASHER 92200A 92200-1757 1
