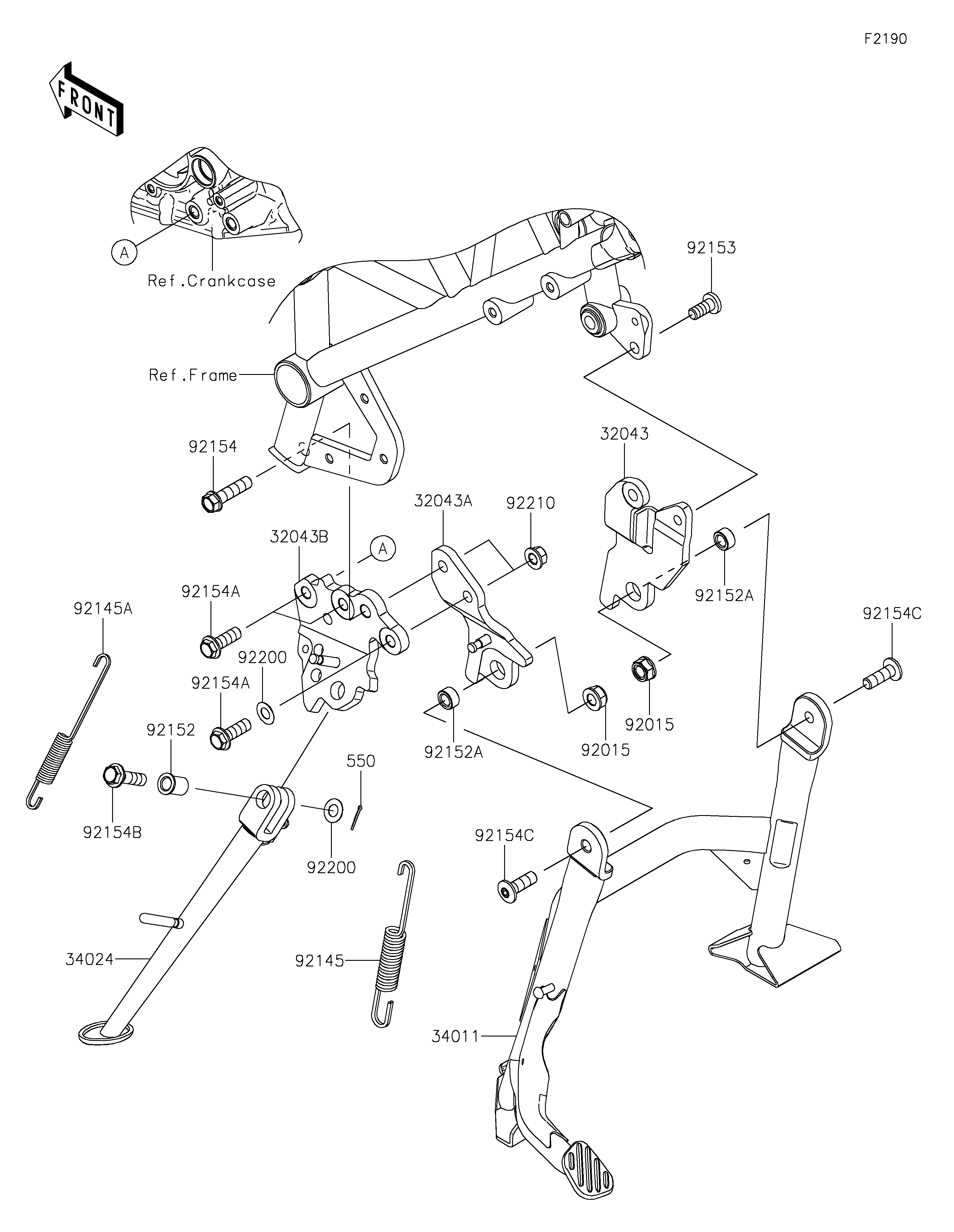

2022 NINJA H2® SX SE - Stand(s)

DOWNLOAD PDF
SELECT A NEW PART
32043
32043A
32043B
34011
34024
92015
92015
92145
92145A
92152
92152A
92152A
92153
92154
92154A
92154A
92154B
92154C
92154C
92200
92200
92210
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,RH 32043 32043-0627 1
BRACKET-STAND,LH 32043A 32043-0655 1
BRACKET-STAND 32043B 32043-0670 1
STAND-CENTER 34011 34011-0038 1
STAND-SIDE 34024 34024-0179 1
NUT,LOCK,FLANGED,10MM 92015 92015-1717 2
SPRING,CENTER STAND 92145 92145-1550 1
SPRING,14X144 92145A 92145-1792 1
COLLAR,10.2X15X20.1 92152 92152-1828 1
COLLAR,10X17X9 92152A 92152-2501 2
BOLT,SOCKET,10X22 92153 92153-1905 1
BOLT,FLANGED,10X40 92154 92154-0313 1
BOLT,FLANGED,10X30 92154A 92154-1645 3
BOLT,FLANGED,10X35,MEC 92154B 92154-2905 1
BOLT,SOCKET,10X30 92154C 92154-4029 2
WASHER,10.2X20X0.5 92200 92200-1732 2
NUT,LOCK,FLANGED,10MM 92210 92210-1139 2
PIN-COTTER,2.0X15 550 550AA2015 1
