41009
41009A
41075
41075
41075A
41075A
41075B
41075B

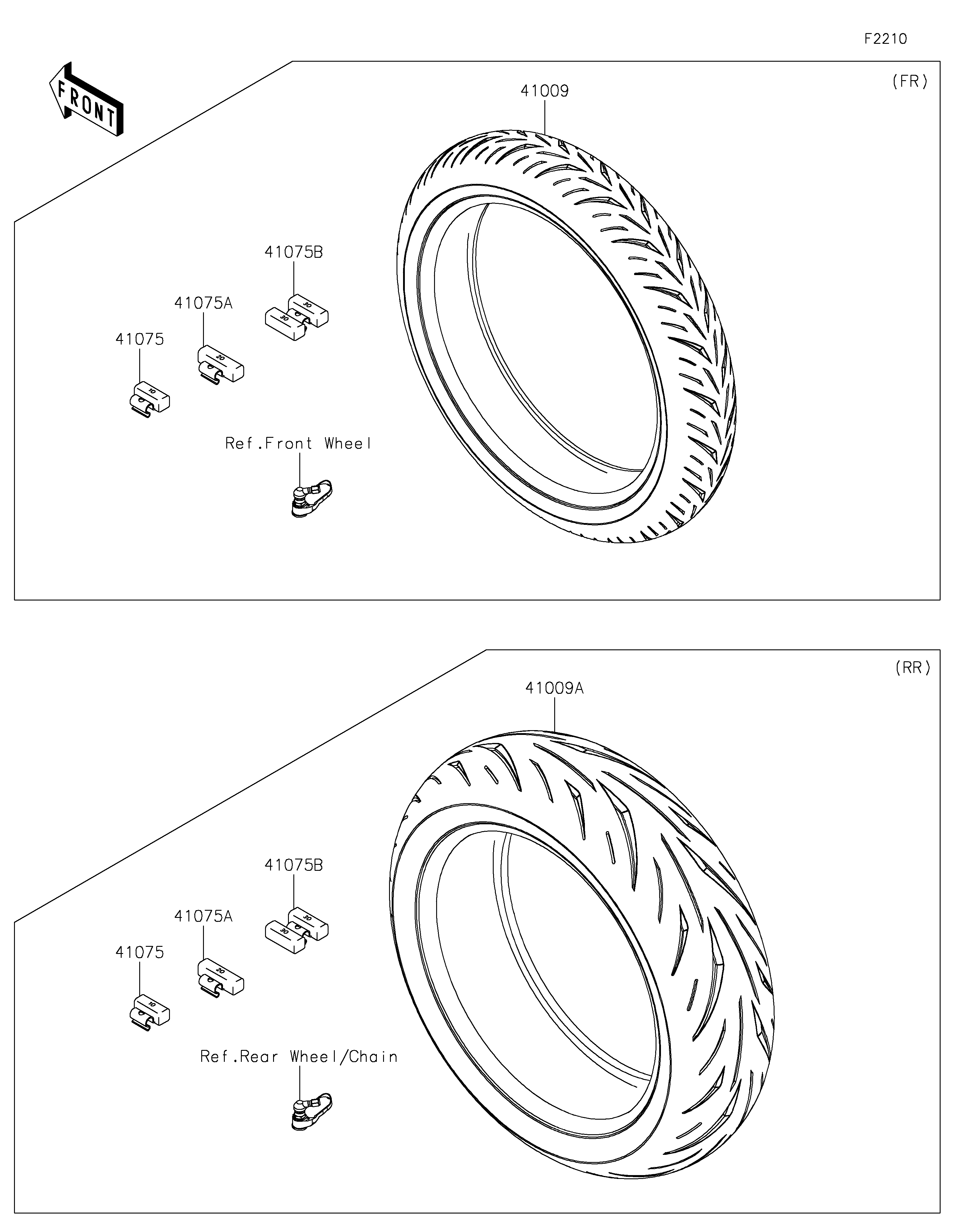

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,120/70ZR17(58W),S22F 41009 41009-0867 1
TIRE,RR,190/55ZR17(75W),S22R 41009A 41009-0868 1
BALANCER-WHEEL,10G,SILVER 41075 41075-0007 AR
BALANCER-WHEEL,20G,SILVER 41075A 41075-0008 AR
BALANCER-WHEEL,30G,SILVER 41075B 41075-0017 AR
