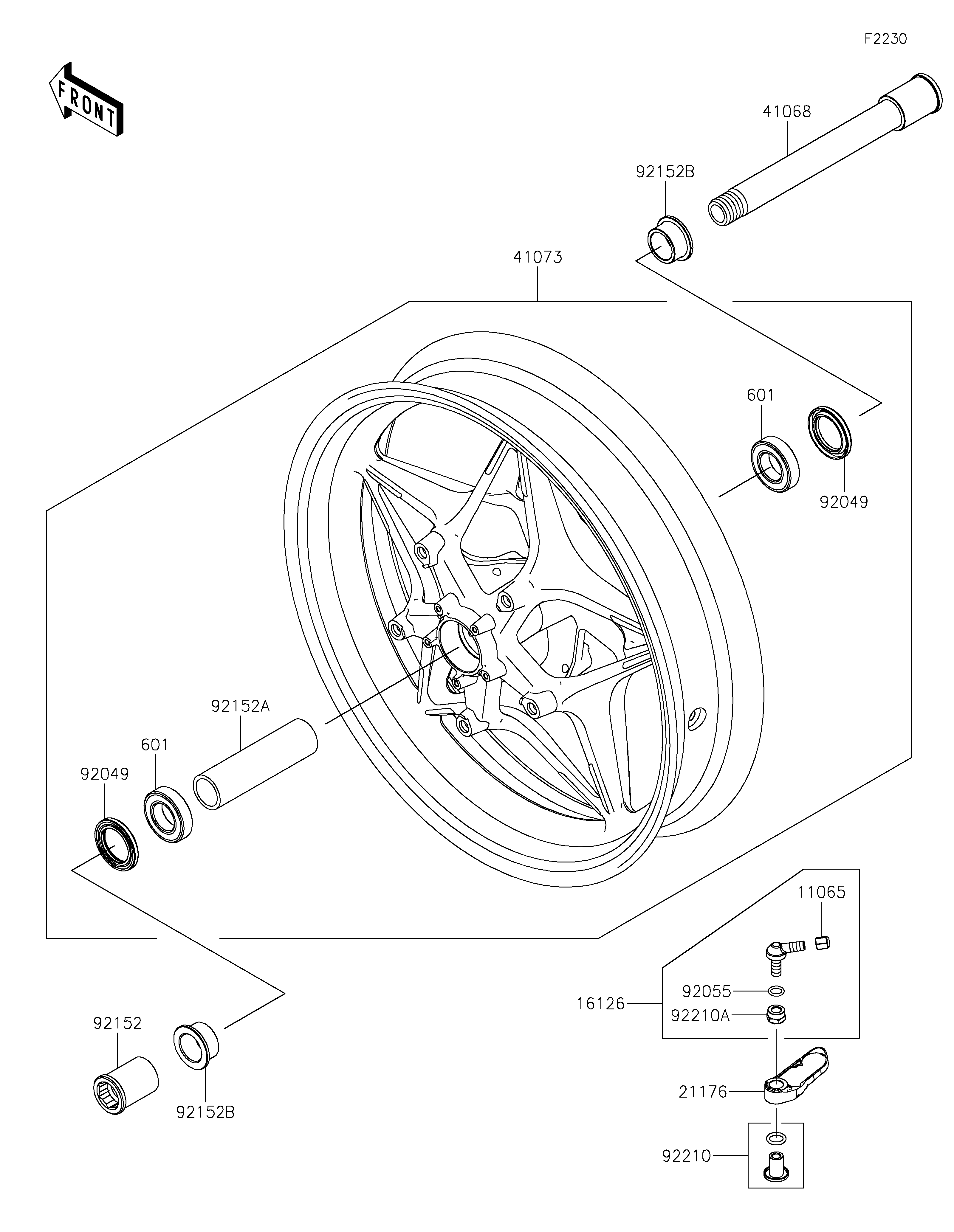

11065
16126
21176
41068
41073
92049
92049
92055
92152
92152A
92152B
92152B
92210
92210A
601
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-1433 1
VALVE,SET 16126 16126-0769 1
SENSOR,TPMS,315MHZ 21176 21176-1137 1
AXLE,FR,25X205 41068 41068-0594 1
WHEEL-ASSY,FR,G.BLACK 41073 41073-0799-60P 1
SEAL-OIL,32X47X5 92049 92049-0795 2
RING-O 92055 92055-0997 1
COLLAR,FR AXLE,LH,L=44.5 92152 92152-0240 1
COLLAR,FR HUB,L=115 92152A 92152-0616 1
COLLAR,FR AXLE,L=18 92152B 92152-2638 2
NUT 92210 92210-1874 1
NUT,VALVE 92210A 92210-1924 1
BEARING-BALL,#6005UU 601 601B6005UU 2
