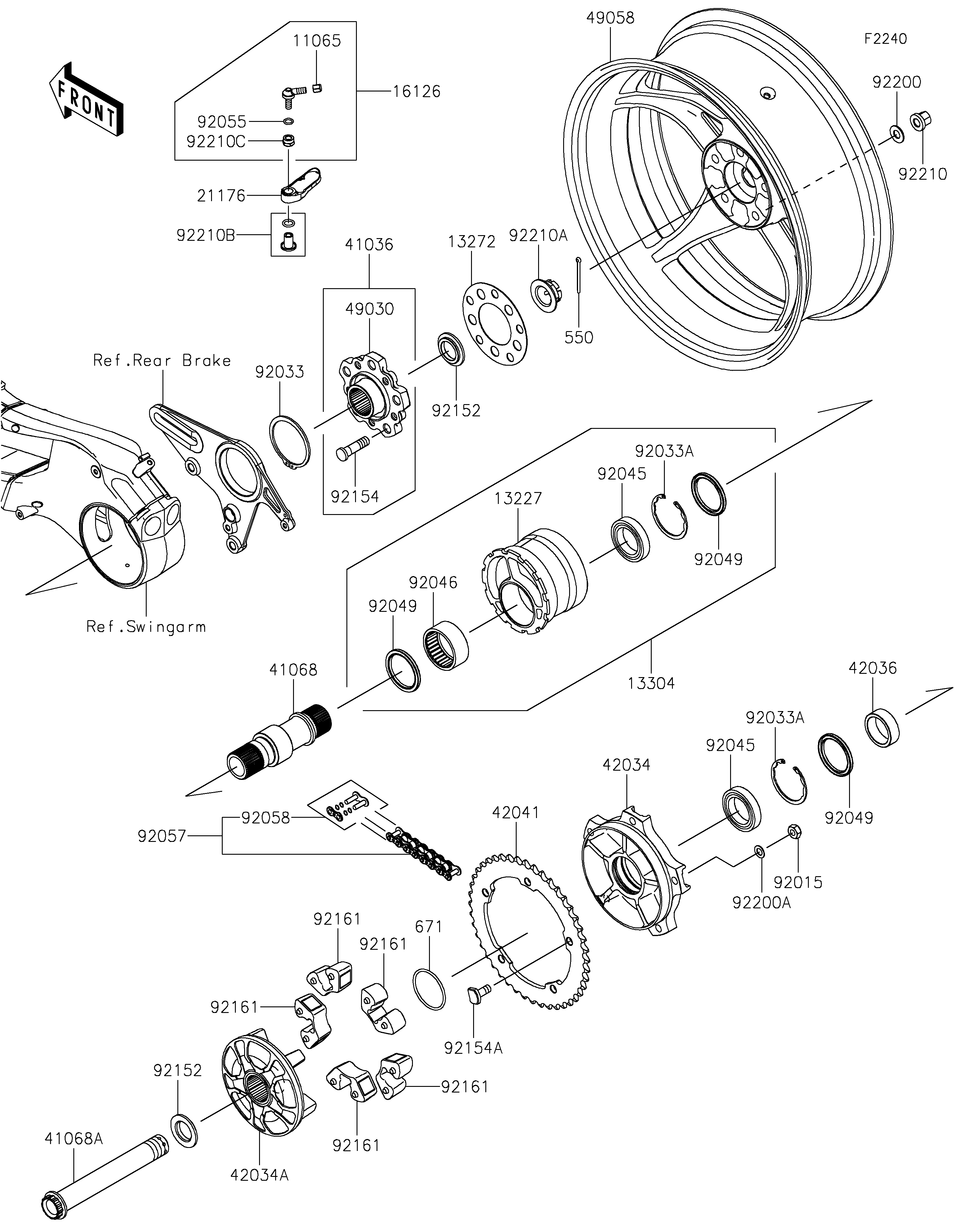

2022 NINJA H2® SX SE - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
11065
13227
13272
13304
16126
21176
41036
41068
41068A
42034
42034A
42036
42041
49030
49058
92015
92033
92033A
92033A
92045
92045
92046
92049
92049
92049
92055
92057
92058
92152
92152
92154
92154A
92161
92161
92161
92161
92161
92200
92200A
92210
92210A
92210B
92210C
550
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-1433 1
HOUSING,RR 13227 13227-0034 1
PLATE 13272 13272-1861 1
HOUSING-ASSY,RR 13304 13304-5002 1
VALVE,SET 16126 16126-0769 1
SENSOR,TPMS,315MHZ 21176 21176-1137 1
HUB-ASSY,RR 41036 41036-0679 1
AXLE,RR 41068 41068-0637 1
AXLE,28X202.6 41068A 41068-0645 1
COUPLING,F.W.M.GRAY 42034 42034-0744-46T 1
COUPLING,INSERT,F.W.M.GRAY 42034A 42034-0752-53D 1
SLEEVE,40X50X16.4 42036 42036-0779 1
SPROCKET-HUB,44T 42041 42041-0152 1
HUB,RR 49030 49030-0567 1
WHEEL,RR,G.BLACK 49058 49058-0723-60P 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 5
RING-SNAP 92033 92033-0760 1
RING-SNAP,62MM 92033A 92033-1044 2
BEARING-BALL,40X60X12 92045 92045-0802 2
BEARING-NEEDLE,50X62X25 92046 92046-0617 1
SEAL-OIL,50X62X5 92049 92049-0872 3
RING-O 92055 92055-0997 1
CHAIN,DRIVE,EK525RMXZ/3D,120L 92057 92057-0734 1
JOINT-CHAIN 92058 92058-0036 1
COLLAR,28X48X7.2 92152 92152-2504 2
BOLT,HUB,12X45 92154 92154-1546 5
BOLT,SPROCKET,10X24.3 92154A 92154-2300 5
DAMPER,SHOCK,RR HUB 92161 92161-1286 5
WASHER,12.1X25X1.6 92200 92200-0455 5
WASHER,10.2X18X1 92200A 92200-1770 5
NUT,12MM 92210 92210-1615 5
NUT,28MM 92210A 92210-1654 1
NUT 92210B 92210-1874 1
NUT,VALVE 92210C 92210-1924 1
PIN-COTTER,4.0X45 550 550AA4045 1
O RING,55MM 671 671B2555 1
