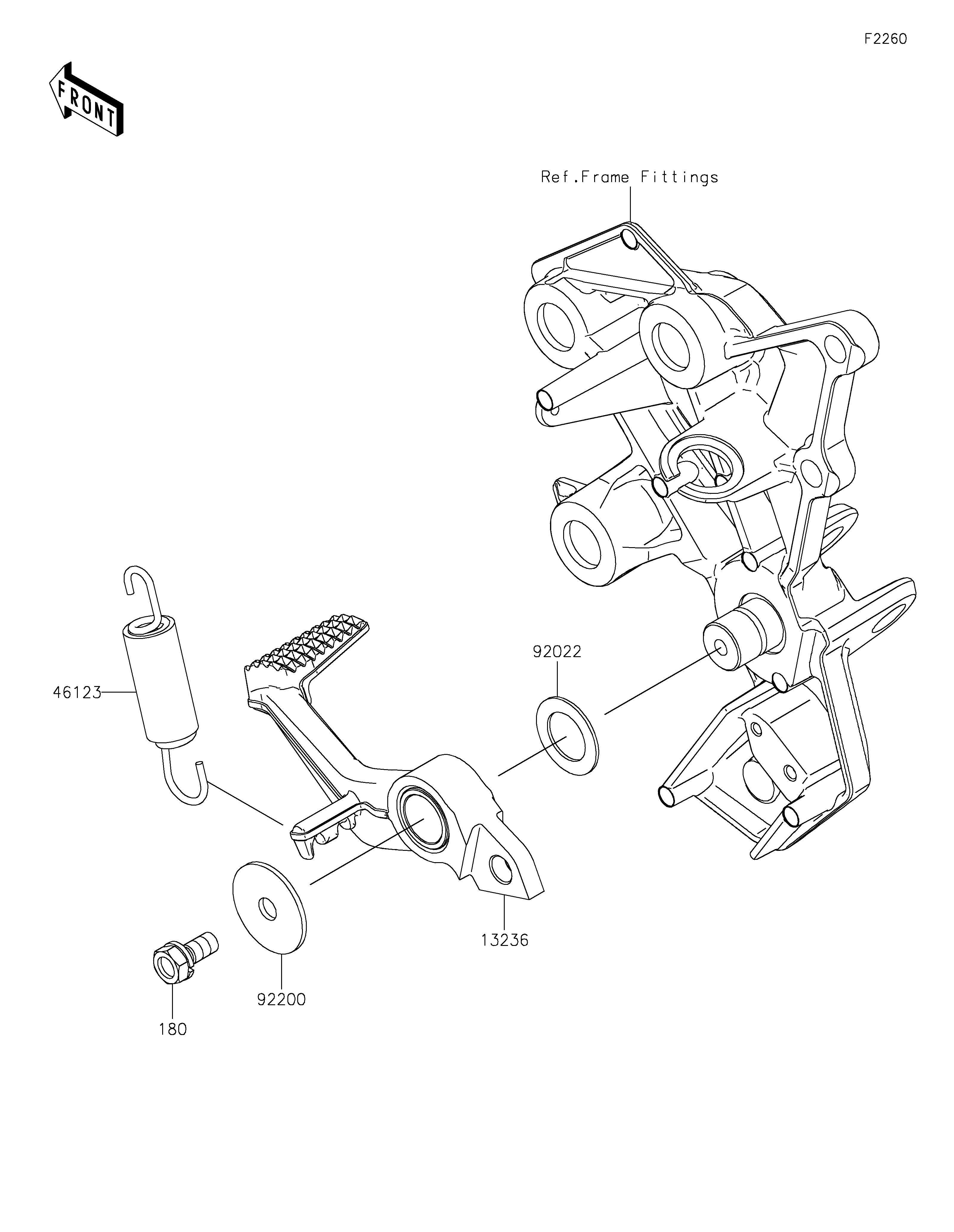

2022 NINJA H2® SX SE - Brake Pedal/Torque Link

13236
46123
92022
92200
180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP,BRAKE PEDAL 13236 13236-0842 1
SPRING-COMP,BRAKE PEDAL RETURN 46123 46123-0003 1
WASHER,15.3X24X1 92022 92022-326 1
WASHER,7X28X1.6 92200 92200-0279 1
BOLT-UPSET-WS,6X14 180 180BA0614 1
