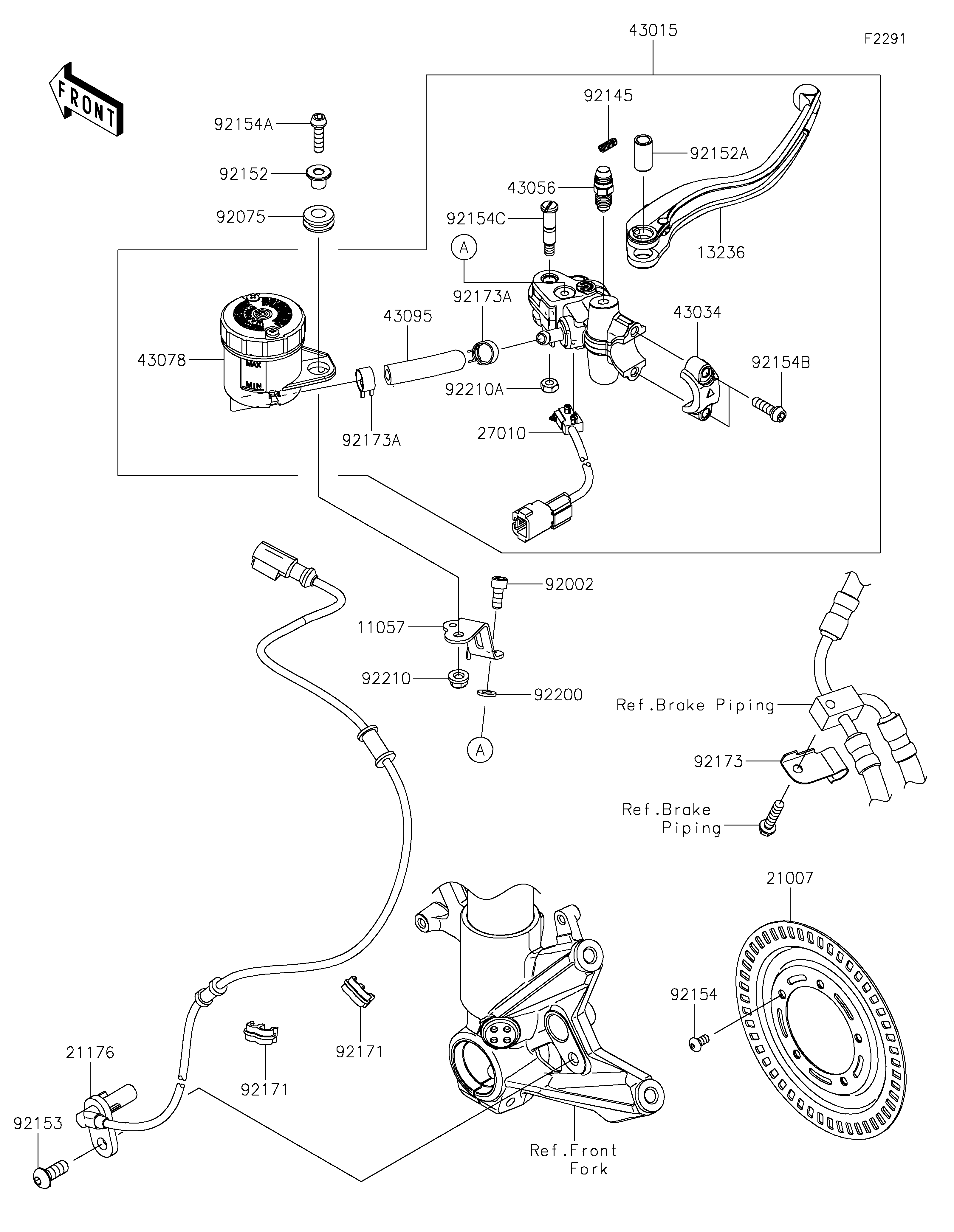

2022 NINJA H2® SX SE - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13236
21007
21176
27010
43015
43034
43056
43078
43095
92002
92075
92145
92152
92152A
92153
92154
92154A
92154B
92154C
92171
92171
92173
92173A
92173A
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR 11057 11057-7229 1
LEVER-COMP,BRAKE 13236 13236-0770 1
ROTOR,SENSOR,FR 21007 21007-0657 1
SENSOR,SPEED,FR 21176 21176-0907 1
SWITCH 27010 27010-0970 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0781 1
HOLDER-BRAKE 43034 43034-0121 1
BREATHER-BRAKE 43056 43056-0019 1
RESERVOIR 43078 43078-0577 1
HOSE-BRAKE 43095 43095-0908 1
BOLT,SOCKET,6X14 92002 92002-1592 1
DAMPER 92075 92075-1028 1
SPRING 92145 92145-1683 1
COLLAR,6X16X10.6 92152 92152-2110 1
COLLAR,LEVER 92152A 92152-2151 1
BOLT,SOCKET,8X20 92153 92153-0912 1
BOLT,SOCKET,5X10 92154 92154-1292 5
BOLT,SOCKET,6X22 92154A 92154-1456 1
BOLT,SOCKET,6X20 92154B 92154-1644 2
BOLT,LEVER 92154C 92154-1809 1
CLAMP 92171 92171-0921 2
CLAMP 92173 92173-0086 1
CLAMP,HOSE 92173A 92173-1498 2
WASHER,6.2X12X1.6 92200 92200-0806 1
NUT,6MM 92210 92210-0991 1
NUT,U 92210A 92210-1424 1
