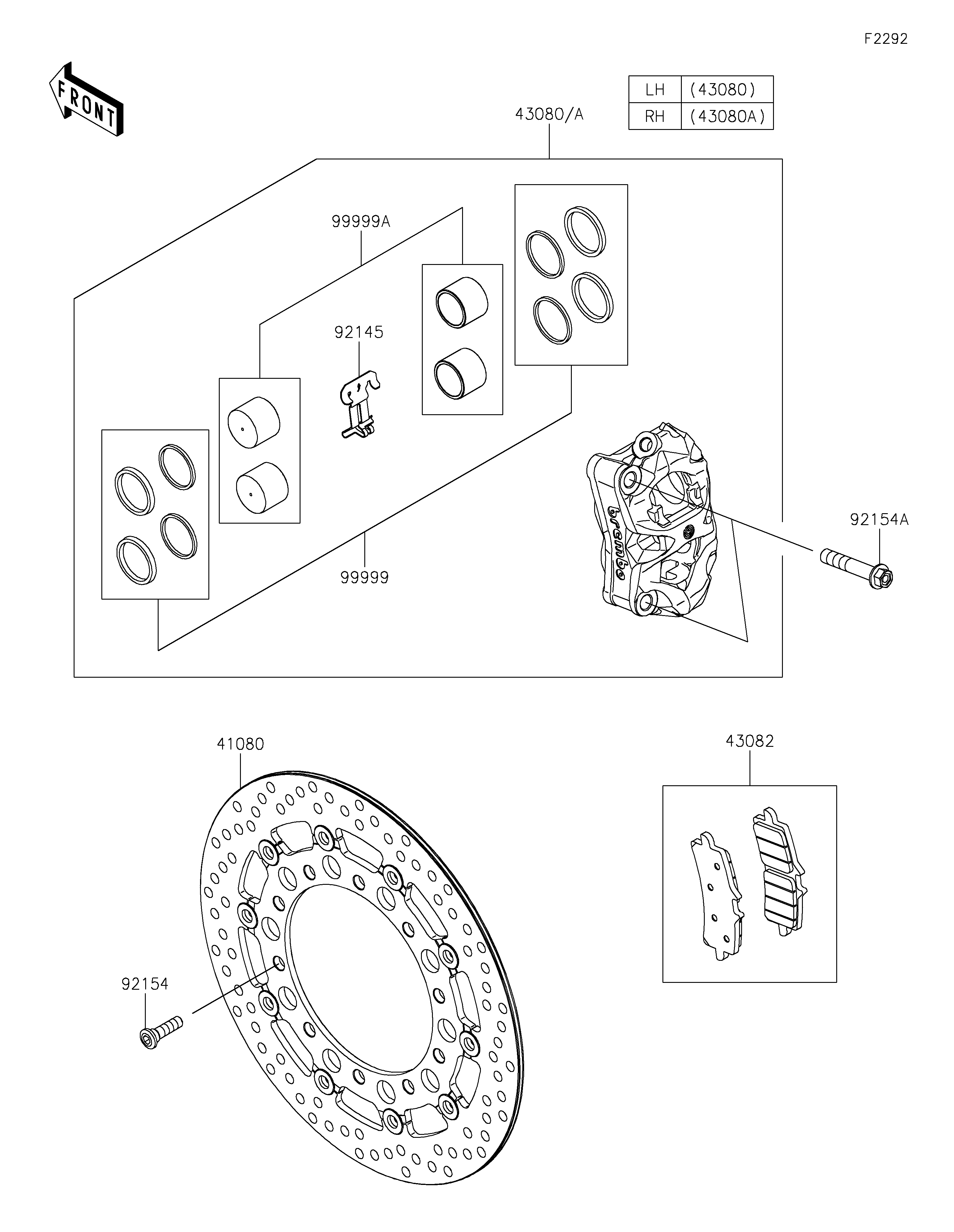

41080
43080
43080A
43082
92145
92154
92154A
99999
99999A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR,320MM,BLACK+BLK 41080 41080-0688-18U 2
CALIPER-SUB-ASSY,FR,LH 43080 43080-0227 1
CALIPER-SUB-ASSY,FR,RH 43080A 43080-0228 1
PAD-ASSY-BRAKE 43082 43082-0190 2
SPRING 92145 92145-1892 2
BOLT,SOCKET,8X30 92154 92154-1723 10
BOLT,FLANGED,10X55 92154A 92154-4380 4
KIT.,DUST SEAL 99999 99999-0557 2
KIT.,CALIPER PISTON 99999A 99999-0698 2
