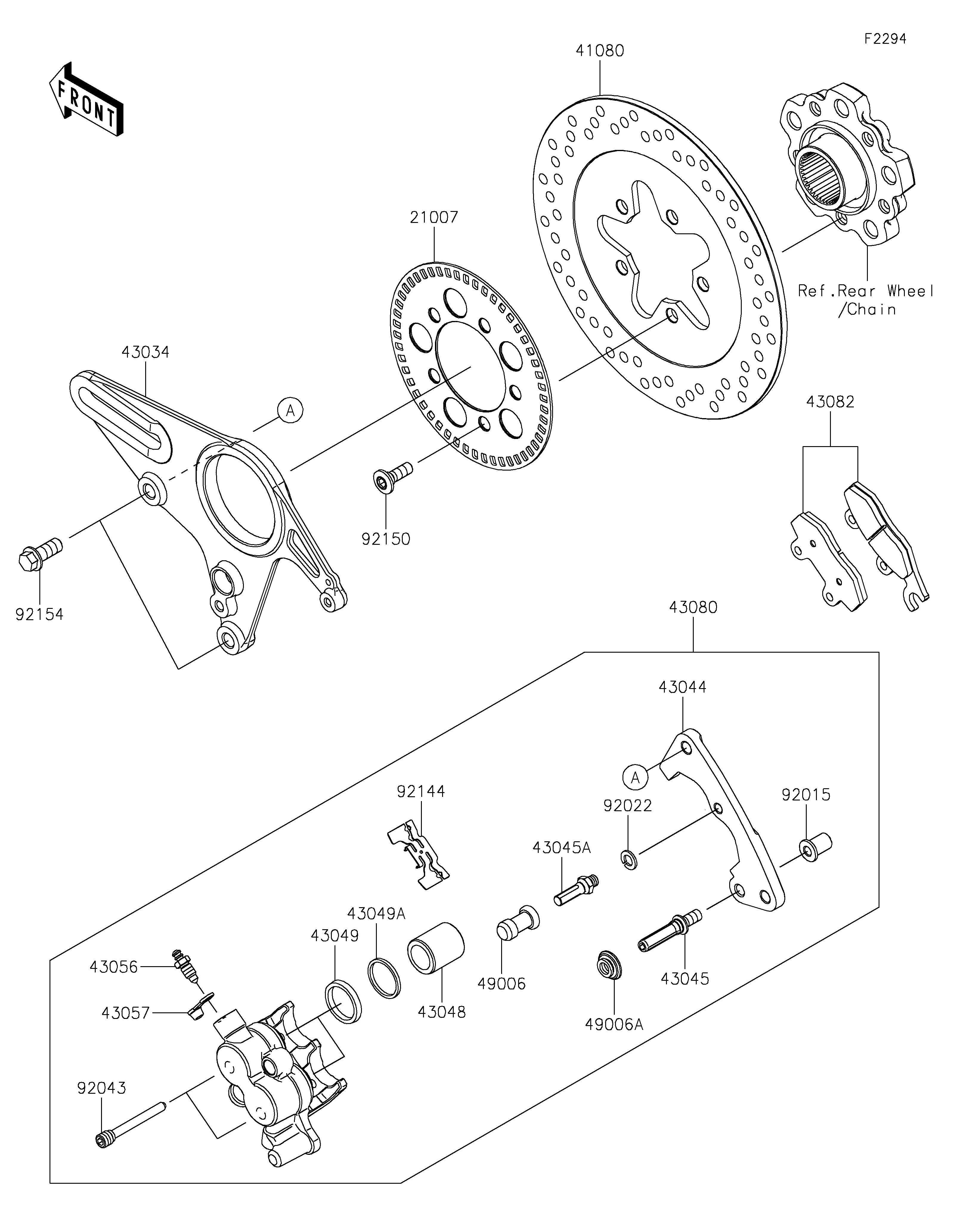

2022 NINJA H2® SX SE - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
21007
41080
43034
43044
43045
43045A
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
92015
92022
92043
92144
92150
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,SENSOR,RR 21007 21007-0662 1
DISC,RR,250MM 41080 41080-0694 1
HOLDER-BRAKE 43034 43034-0139 1
HOLDER-COMP-CALIPER 43044 43044-0084 1
SHAFT-CALIPER 43045 43045-0011 1
SHAFT-CALIPER 43045A 43045-1010 1
PISTON-CALIPER 43048 43048-1068 2
PACKING,PISTON SEAL 43049 43049-1060 2
PACKING,PISTON SEAL 43049A 43049-1061 2
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR,2P,BLACK 43080 43080-0202-DJ 1
PAD-ASSY-BRAKE 43082 43082-0179 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
NUT 92015 92015-1740 1
WASHER,WAVE 92022 92022-1373 1
PIN,HANGER 92043 92043-1416 2
SPRING,PAD 92144 92144-1847 1
BOLT,8X25 92150 92150-1858 5
BOLT,CALIPER,10X25 92154 92154-2835 2
