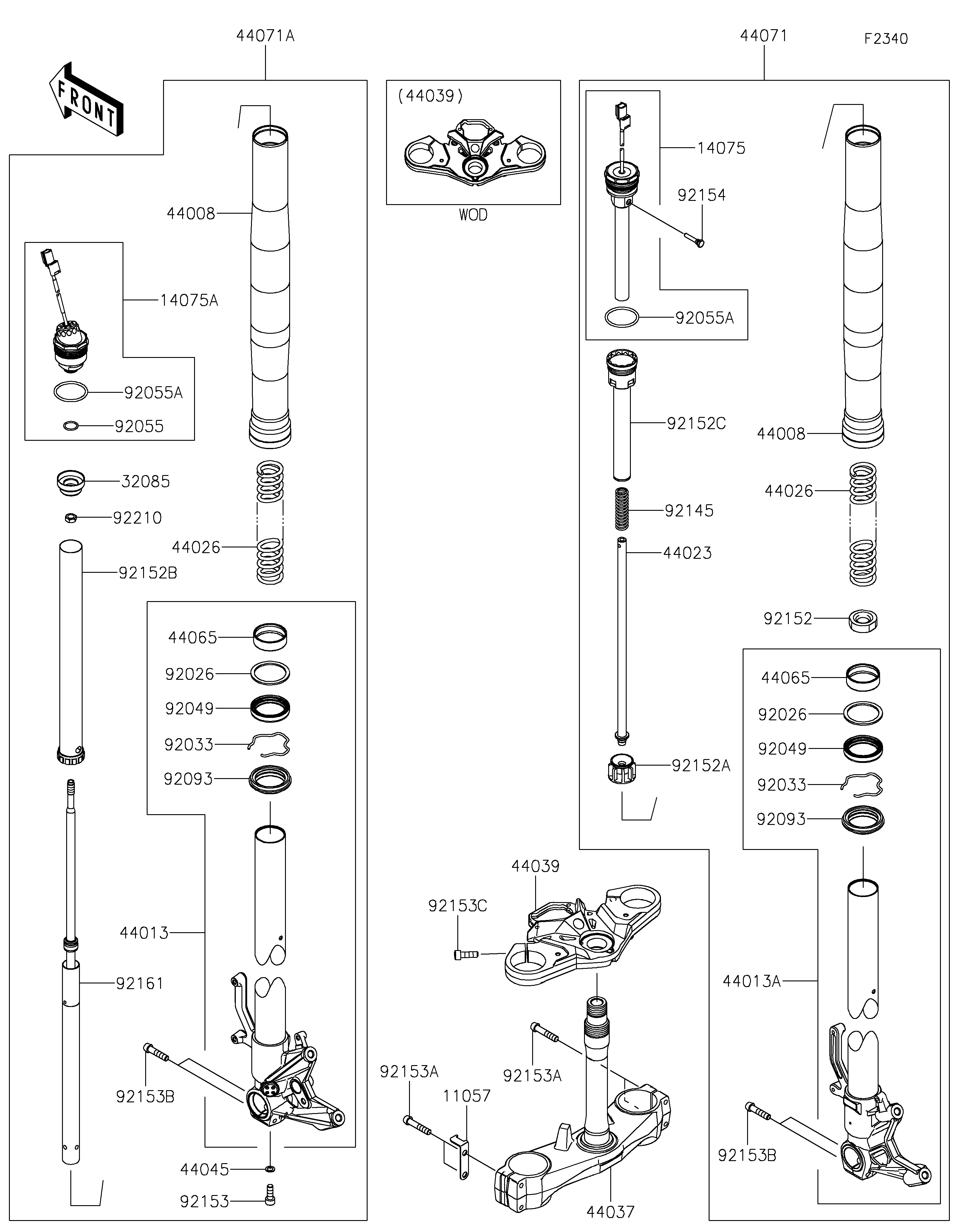

2022 NINJA H2® SX SE - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11057
14075
14075A
32085
44008
44008
44013
44013A
44023
44026
44026
44037
44039
44045
44065
44065
44071
44071A
92026
92026
92033
92033
92049
92049
92055
92055A
92055A
92093
92093
92145
92152
92152A
92152B
92152C
92153
92153A
92153A
92153B
92153B
92153C
92154
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2295 1
CAP-ASSY,FORK,RH 14075 14075-0716 1
CAP-ASSY,FORK,LH 14075A 14075-0723 1
STOPPER 32085 32085-0851 1
PIPE-FORK OUTER 44008 44008-0091 2
PIPE-FORK INNER,LH 44013 44013-0339 1
PIPE-FORK INNER,RH 44013A 44013-0340 1
CYLINDER-SET-FORK 44023 44023-0160 1
SPRING-FRONT FORK 44026 44026-0236 2
HOLDER-FORK UNDER 44037 44037-0213 1
HOLDER-FORK UPPER 44039 44039-0206 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 1
BUSHING-FRONT FORK 44065 44065-0026 2
DAMPER-ASSY,FORK,RH 44071 44071-1513 1
DAMPER-ASSY,FORK,LH 44071A 44071-1579 1
SPACER 92026 92026-0165 2
RING-SNAP 92033 92033-1222 2
SEAL-OIL 92049 92049-0064 2
RING-O 92055 92055-0927 1
RING-O,FORK CAP 92055A 92055-1497 2
SEAL,DUST 92093 92093-0042 2
SPRING 92145 92145-1918 1
COLLAR 92152 92152-2564 1
COLLAR 92152A 92152-2565 1
COLLAR 92152B 92152-2623 1
COLLAR 92152C 92152-2658 1
BOLT,SOCKET,8X22 92153 92153-0028 1
BOLT 92153A 92153-0533 4
BOLT,SOCKET,8X35 92153B 92153-0854 4
BOLT,SOCKET,8X25 92153C 92153-1625 2
BOLT,TOP 92154 92154-3743 1
DAMPER 92161 92161-2247 1
NUT 92210 92210-1764 1
