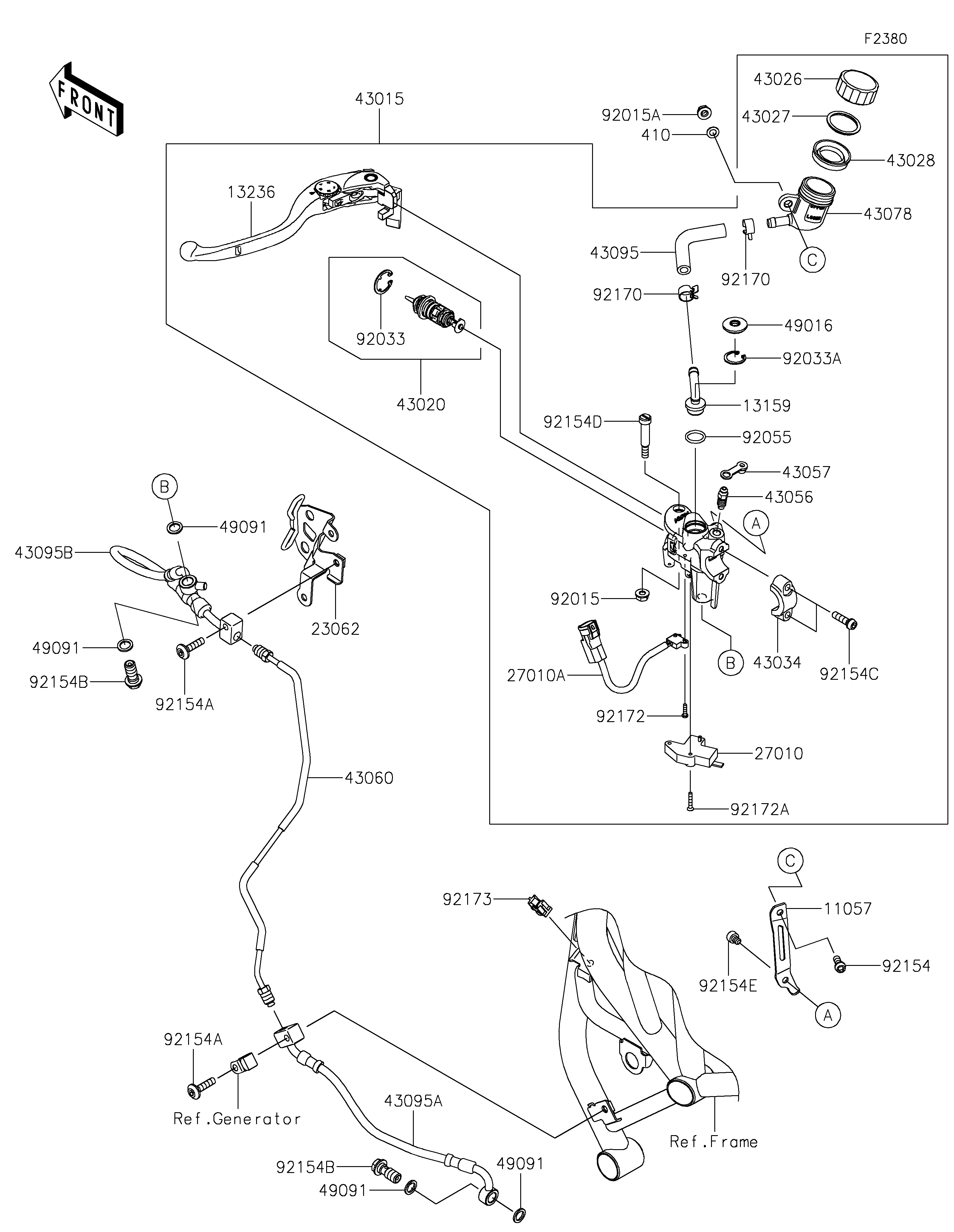

2022 NINJA H2® SX SE - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13159
13236
23062
27010
27010A
43015
43020
43026
43027
43028
43034
43056
43057
43060
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
92015
92015A
92033
92033A
92055
92154
92154A
92154A
92154B
92154B
92154C
92154D
92154E
92170
92170
92172
92172A
92173
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RESERVOIR TANK 11057 11057-7211 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,CLUTCH 13236 13236-0803 1
BRACKET-COMP,FR HOSE 23062 23062-1354 1
SWITCH,CLUTCH 27010 27010-0854 1
SWITCH,CRUISE CONTROL CANCEL 27010A 27010-0964 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0780 1
PISTON-COMP-BRAKE 43020 43020-0028 1
CAP-BRAKE 43026 43026-1070 1
PLATE-DIAPHRAGM 43027 43027-1054 1
DIAPHRAGM 43028 43028-1073 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0056 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
PIPE-BRAKE,CLUTCH 43060 43060-0332 1
RESERVOIR 43078 43078-0580 1
HOSE-BRAKE,FR MASTER CYLINDER 43095 43095-0040 1
HOSE-BRAKE,JOINT-ENG 43095A 43095-1498 1
HOSE-BRAKE,CLUTCH MC-JOINT 43095B 43095-1670 1
COVER-SEAL 49016 49016-1147 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,FLANGED,6MM 92015A 92015-1367 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,SOCKET,6X16 92154 92154-1454 1
BOLT,SOCKET,6X25 92154A 92154-1532 2
BOLT,BANJO,10X23 92154B 92154-1712 2
BOLT,SOCKET,6X22 92154C 92154-1724 2
BOLT,LEVER 92154D 92154-1912 1
BOLT,SOCKET,6X8 92154E 92154-2914 1
CLAMP,HOSE 92170 92170-1091 2
SCREW 92172 92172-1243 1
SCREW 92172A 92172-1458 2
CLAMP 92173 92173-0951 1
WASHER-PLAIN-SMALL 410 410AA0600 1
