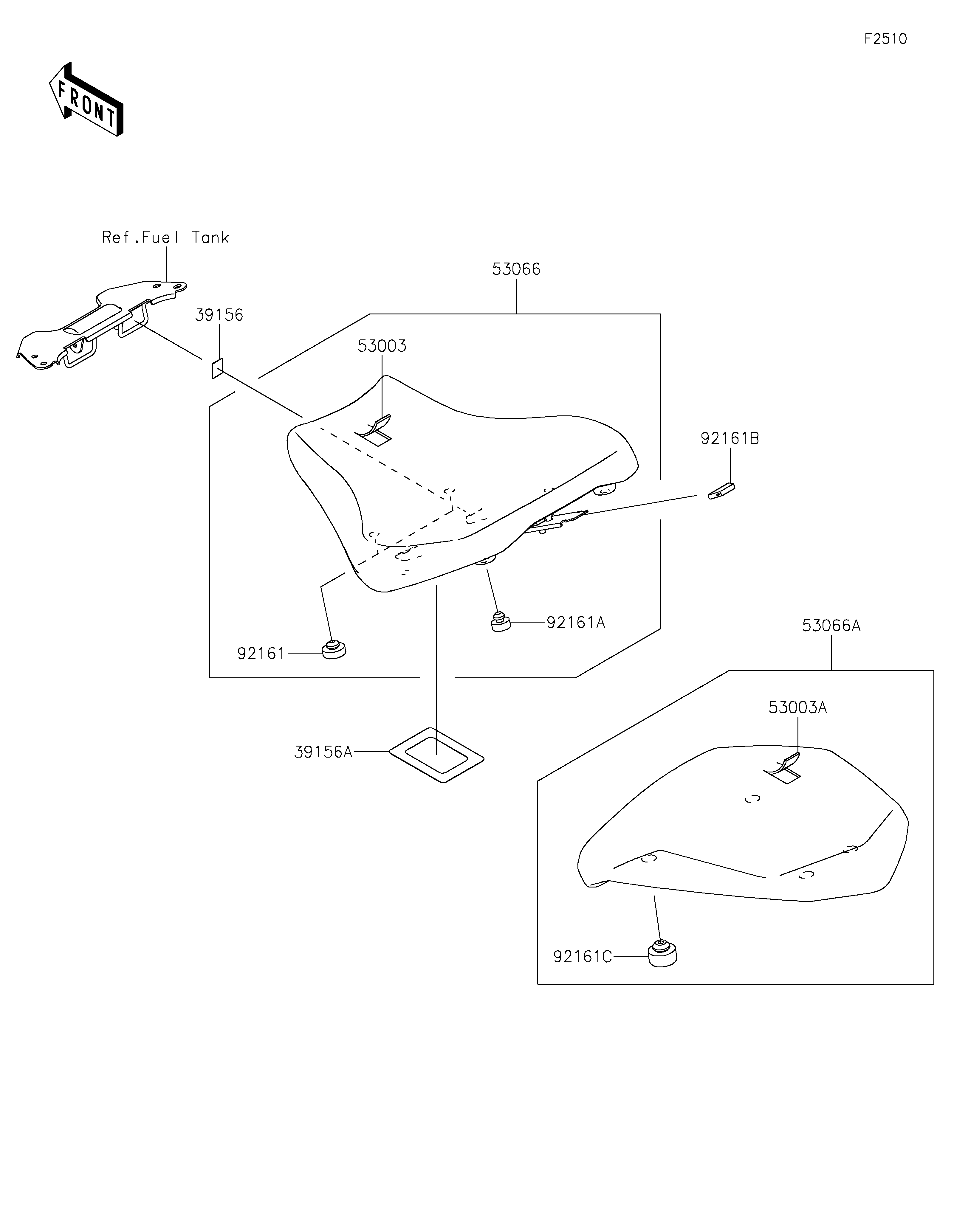

39156
39156A
53003
53003A
53066
53066A
92161
92161A
92161B
92161C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,15X20X0.2 39156 39156-1784 2
PAD,66X86X0.2 39156A 39156-2342 1
LEATHER,FR SEAT,BLACK+GRY 53003 53003-0559-49L 1
LEATHER,RR SEAT,BLACK+GRY 53003A 53003-0570-49L 1
SEAT-ASSY,FR,BLACK+GRY 53066 53066-0731-49L 1
SEAT-ASSY,RR,BLACK+GRY 53066A 53066-0732-49L 1
DAMPER,SEAT,10X25X8 92161 92161-0095 2
DAMPER,8X20X8 92161A 92161-0223 4
DAMPER 92161B 92161-0629 1
DAMPER,SEAT 92161C 92161-0930 4
