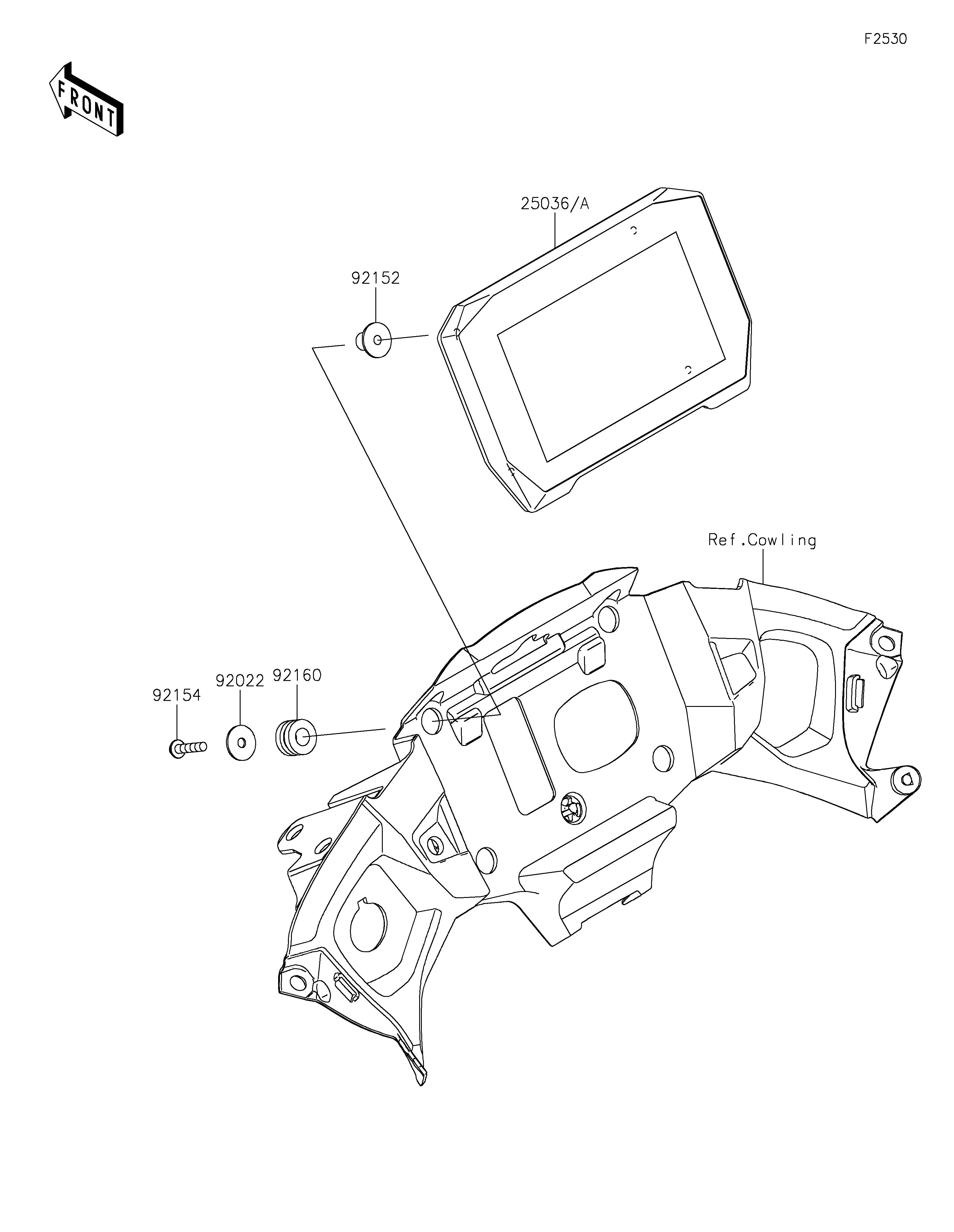

25036
92022
92152
92154
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
METER-ASSY-MULTI-FUNCTION 25036 25036-0002 1
WASHER,5.5X20X1.2 92022 92022-1405 4
COLLAR 92152 92152-2790 4
BOLT,SOCKET,5X23 92154 92154-3820 4
DAMPER,10X20X12 92160 92160-1167 4
