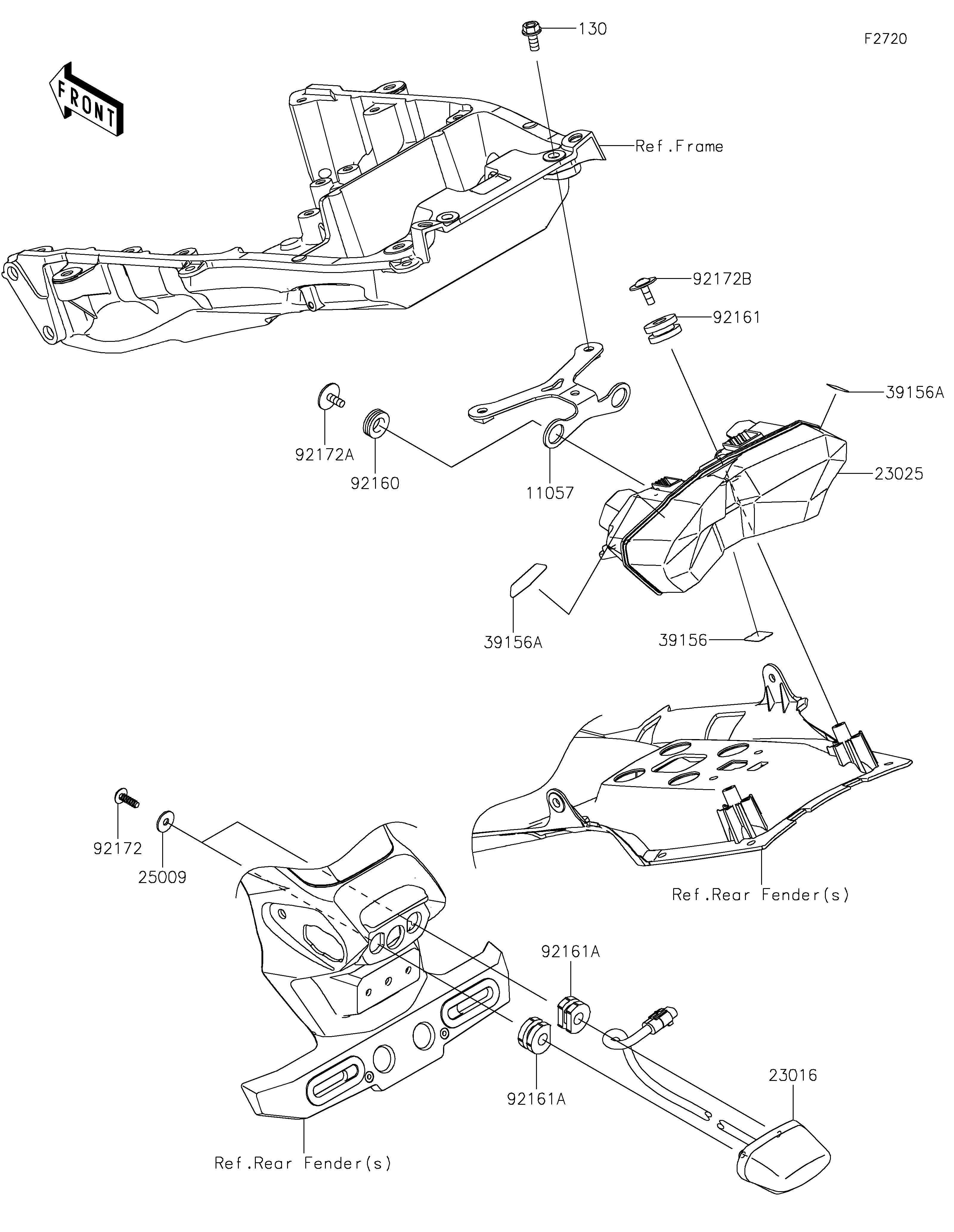

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1299 1
LAMP-ASSY,LICENSE,LED 23016 23016-0666 1
LAMP-TAIL,LED 23025 23025-0387 1
WASHER,5.2X16X1.2 25009 25009-004 2
PAD,17X15X0.2 39156 39156-2231 1
PAD,10.6X36.8X0.2 39156A 39156-2232 2
DAMPER 92160 92160-1278 2
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-0776 2
SCREW,TAPPING,5X16 92172 92172-0238 2
SCREW,TAPPING,WP,5X14 92172A 92172-0441 2
SCREW,TAPTITE,5X16 92172B 92172-0481 2
BOLT-FLANGED,6X14 130 130BC0614 2
