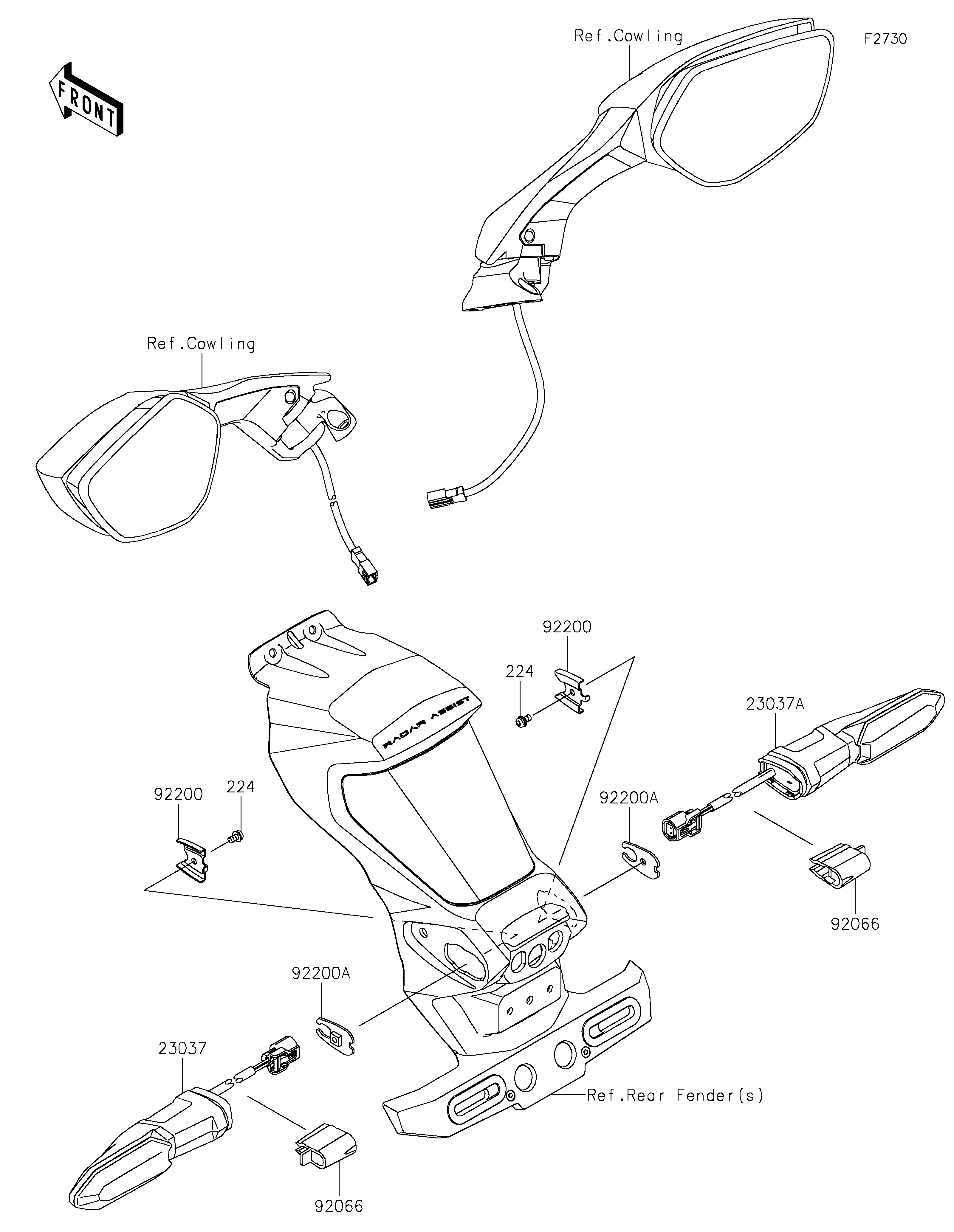

23037
23037A
92066
92066
92200
92200
92200A
92200A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY-SIGNAL,LED,LH 23037 23037-0561 1
LAMP-ASSY-SIGNAL,LED,RH 23037A 23037-0562 1
PLUG,SIGNAL LAMP 92066 92066-0919 2
WASHER 92200 92200-0855 2
WASHER 92200A 92200-2268 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
