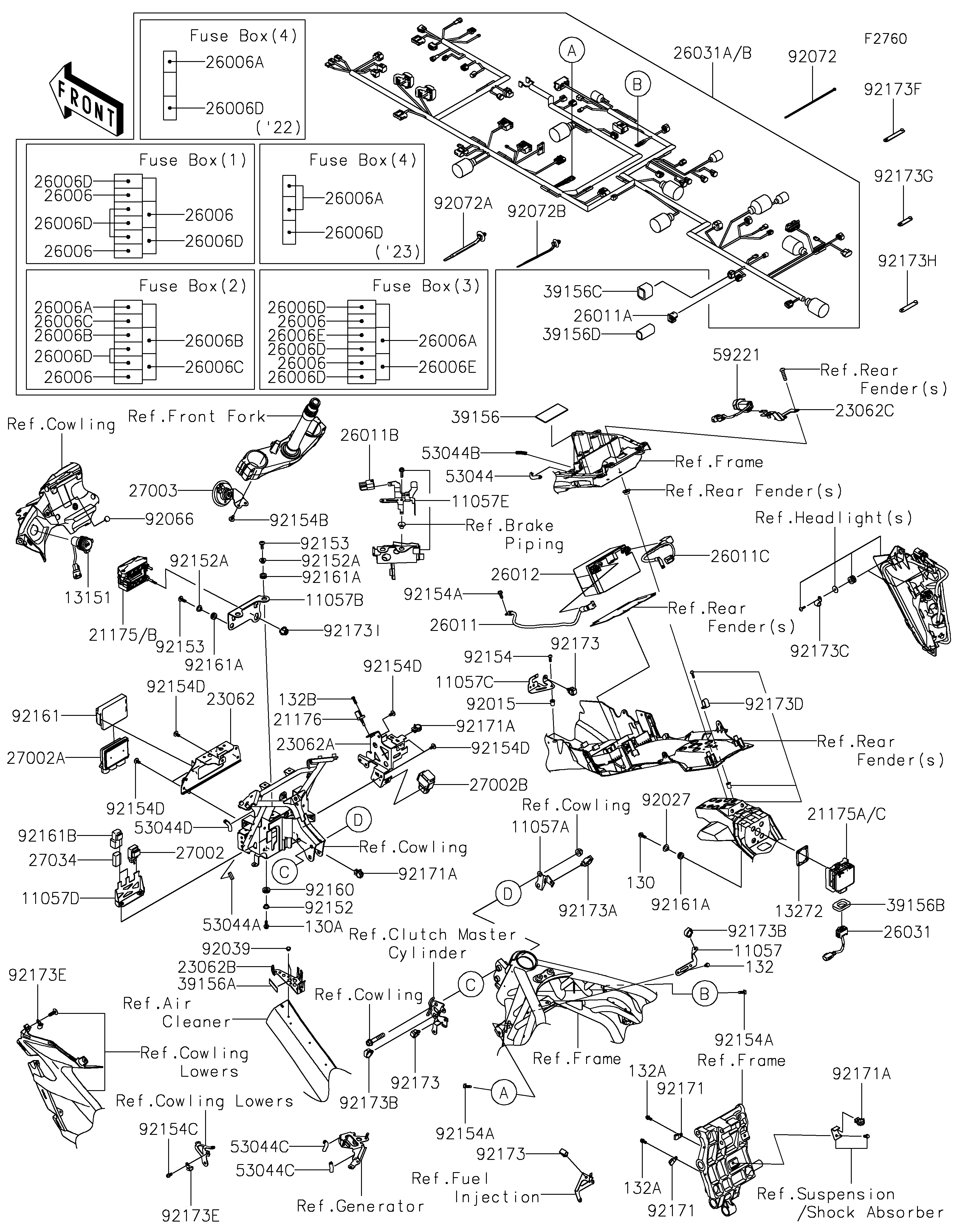

2022 NINJA H2® SX SE - Chassis Electrical Equipment
11057
11057
11057
11057A
11057A
11057A
11057B
11057B
11057B
11057C
11057C
11057C
11057D
11057D
11057D
11057E
11057E
11057E
13151
13151
13151
13272
13272
13272
21175
21175
21175
21175A
21175A
21175A
21176
21176
21176
23062
23062
23062
23062A
23062A
23062A
23062B
23062B
23062B
23062C
23062C
23062C
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26006C
26006C
26006C
26006C
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006D
26006E
26006E
26006E
26006E
26006E
26006E
26011
26011
26011
26011A
26011A
26011A
26011B
26011B
26011B
26011C
26011C
26011C
26012
26012
26012
26031
26031
26031
26031A
26031A
26031A
27002
27002
27002
27002A
27002A
27002A
27002B
27002B
27002B
27003
27003
27003
27034
27034
27034
39156
39156
39156
39156A
39156A
39156A
39156B
39156B
39156B
39156C
39156C
39156C
39156D
39156D
39156D
53044
53044
53044
53044A
53044A
53044A
53044B
53044B
53044B
53044C
53044C
53044C
53044C
53044C
53044C
53044D
53044D
53044D
59221
59221
59221
92015
92015
92015
92027
92027
92027
92039
92039
92039
92066
92066
92066
92072
92072
92072
92072A
92072A
92072A
92072B
92072B
92072B
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153
92153
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92154D
92160
92160
92160
92161
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173B
92173B
92173B
92173B
92173B
92173B
92173C
92173C
92173C
92173D
92173D
92173D
92173E
92173E
92173E
92173E
92173E
92173E
92173F
92173F
92173F
92173G
92173G
92173G
92173H
92173H
92173H
92173I
92173I
92173I
130
130
130
130A
130A
130A
132
132
132
132A
132A
132A
132A
132A
132A
132B
132B
132B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD PIPE,LWR | 11057 | 11057-7214 | 1 | ||
| BRACKET,HEAD PIPE,RH | 11057A | 11057-7215 | 1 | ||
| BRACKET,RADAR | 11057B | 11057-7227 | 1 | ||
| BRACKET | 11057C | 11057-7271 | 1 | ||
| BRACKET | 11057D | 11057-7308 | 1 | ||
| BRACKET,FUSE BOX | 11057E | 11057-7338 | 1 | ||
| SWITCH-COMP,DC OUTLET | 13151 | 13151-0579 | 1 | ||
| PLATE | 13272 | 13272-3912 | 1 | ||
| ECU,FR,RADAR | 21175 | 21175-1677 | 1 | ||
| ECU,RR,RADAR | 21175A | 21175-1678 | 1 | ||
| SENSOR,AIR TEMPERATURE | 21176 | 21176-0048 | 1 | ||
| BRACKET-COMP,FR,CNT | 23062 | 23062-1328 | 1 | ||
| BRACKET-COMP,FR,RH | 23062A | 23062-1329 | 1 | ||
| BRACKET-COMP,DUCT,UPP | 23062B | 23062-1331 | 1 | ||
| BRACKET-COMP,USB | 23062C | 23062-1332 | 1 | ||
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 6 | ||
| FUSE,MINI BLADE,1A | 26006A | 26006-0037 | 3 | ||
| FUSE,MINI BLADE,7.5A,BROWN | 26006B | 26006-0055 | 2 | ||
| FUSE,MINI BLADE,5A,TAN | 26006C | 26006-1077 | 2 | ||
| FUSE,MINI BLADE,10A,RED | 26006D | 26006-1078 | 11 | ||
| FUSE,MINI BLADE,30A,GREEN | 26006E | 26006-1080 | 2 | ||
| WIRE-LEAD,BATTERY(-) | 26011 | 26011-1856 | 1 | ||
| WIRE-LEAD,DIAG CONNECTOR | 26011A | 26011-1901 | 1 | ||
| WIRE-LEAD,ABS DIAG | 26011B | 26011-1983 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011C | 26011-2410 | 1 | ||
| BATTERY,YTZ10S,12V 8.6AH | 26012 | 26012-0564 | 1 | ||
| HARNESS,RR RADAR | 26031 | 26031-2960 | 1 | ||
| HARNESS,MAIN | 26031A | 26031-3891 | 1 | ||
| RELAY-ASSY,SIGNAL LAMP | 27002 | 27002-0029 | 1 | ||
| RELAY-ASSY | 27002A | 27002-0050 | 1 | ||
| RELAY-ASSY | 27002B | 27002-0060 | 1 | ||
| HORN | 27003 | 27003-0165 | 1 | ||
| RELAY | 27034 | 27034-0012 | 2 | ||
| PAD,40X90X2 | 39156 | 39156-2339 | 1 | ||
| PAD,40X18X1 | 39156A | 39156-2498 | 1 | ||
| PAD | 39156B | 39156-2711 | 1 | ||
| PAD | 39156C | 39156-2797 | 1 | ||
| PAD,FI DIAG | 39156D | 39156-2811 | 1 | ||
| TRIM | 53044 | 53044-0018 | 1 | ||
| TRIM,9X6.5X20 | 53044A | 53044-0596 | 1 | ||
| TRIM,L=34MM | 53044B | 53044-0634 | 1 | ||
| TRIM,L=40 | 53044C | 53044-0662 | 2 | ||
| TRIM,L=60 | 53044D | 53044-1249 | 1 | ||
| CONNECTOR-CORD,USB | 59221 | 59221-0019 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 1 | ||
| COLLAR | 92027 | 92027-1166 | 4 | ||
| RIVET | 92039 | 92039-0039 | 2 | ||
| PLUG | 92066 | 92066-0144 | 1 | ||
| BAND,202X3.6 | 92072 | 92072-0782 | 4 | ||
| BAND | 92072A | 92072-1392 | 2 | ||
| BAND,OS170-FT7(BLACK) | 92072B | 92072-1414 | AR | ||
| COLLAR,6.5X16X7.3 | 92152 | 92152-2336 | 2 | ||
| COLLAR | 92152A | 92152-2791 | 3 | ||
| BOLT,6X18 | 92153 | 92153-0816 | 3 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0209 | 1 | ||
| BOLT,FLANGED,6X16 | 92154A | 92154-0551 | 3 | ||
| BOLT,SOCKET,6X14 | 92154B | 92154-0745 | 2 | ||
| BOLT,SOCKET,6X12 | 92154C | 92154-1453 | 1 | ||
| BOLT,SOCKET,6X12 | 92154D | 92154-2706 | 6 | ||
| DAMPER | 92160 | 92160-1278 | 2 | ||
| DAMPER,RELAY BOX | 92161 | 92161-0203 | 1 | ||
| DAMPER,10X18X6.5 | 92161A | 92161-2091 | 7 | ||
| DAMPER | 92161B | 92161-2290 | 2 | ||
| CLAMP | 92171 | 92171-0813 | 2 | ||
| CLAMP,EDGE CLIP | 92171A | 92171-1722 | 3 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 3 | ||
| CLAMP | 92173A | 92173-0861 | 1 | ||
| CLAMP,HOLDER CLIP | 92173B | 92173-0868 | 2 | ||
| CLAMP | 92173C | 92173-0982 | 2 | ||
| CLAMP | 92173D | 92173-1549 | 1 | ||
| CLAMP,12X45 | 92173E | 92173-1839 | 2 | ||
| CLAMP | 92173F | 92173-2194 | 7 | ||
| CLAMP | 92173G | 92173-2198 | 2 | ||
| CLAMP | 92173H | 92173-2199 | 5 | ||
| CLAMP | 92173I | 92173-2441 | 3 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 4 | ||
| BOLT-FLANGED,6X16 | 130A | 130CB0616 | 2 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 2 | ||
| BOLT-FLANGED-SMALL,6X12 | 132A | 132BA0612 | 2 | ||
| BOLT-FLANGED-SMALL | 132B | 132BB0516 | 1 |
