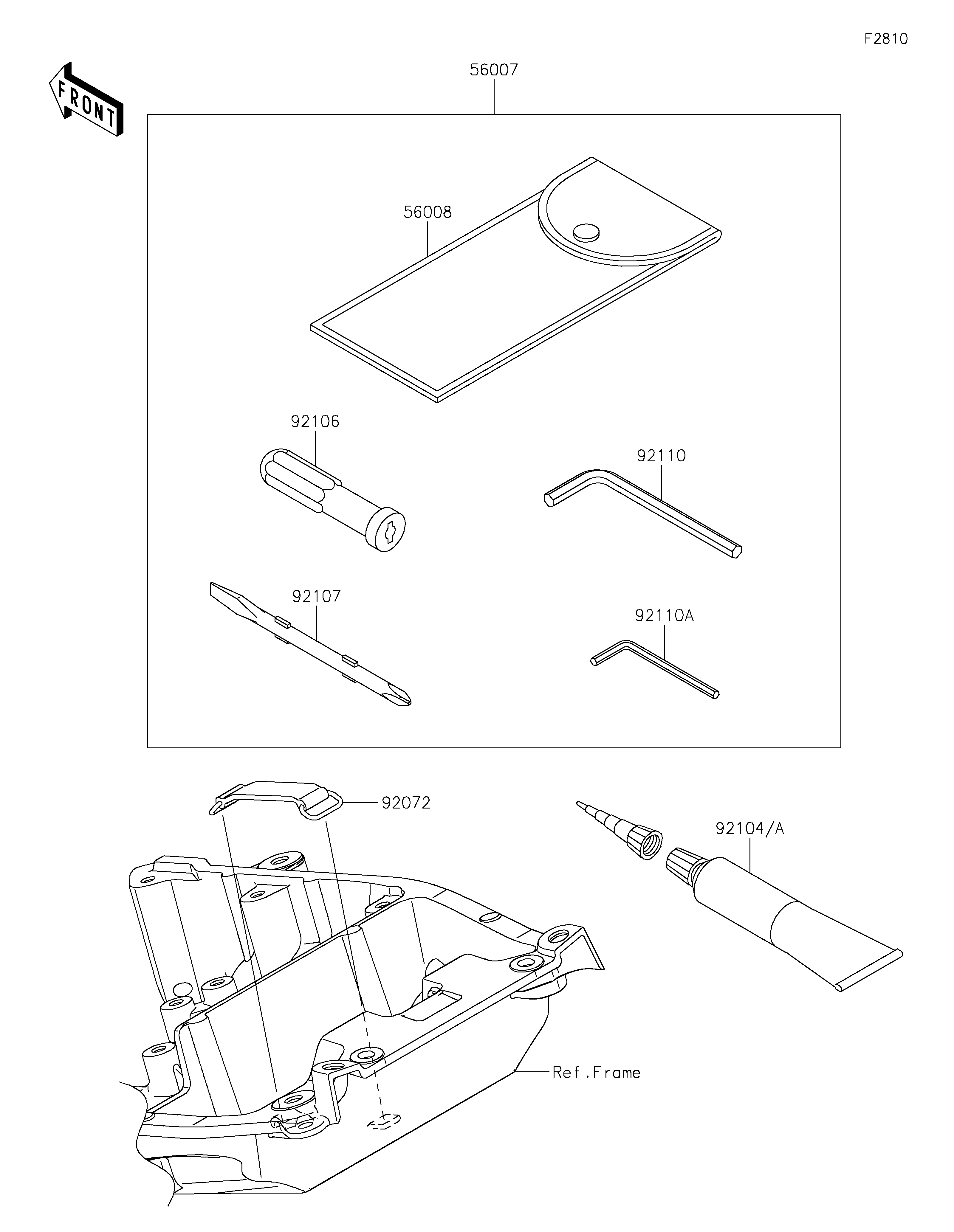

56007
56008
92072
92104
92104A
92106
92107
92110
92110A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL-KIT 56007 56007-0194 1
BAG,TOOL 56008 56008-1075 1
BAND,L=50 92072 92072-1419 1
GASKET-LIQUID,TB1211F,CLEAR 92104 92104-0004 1
GASKET-LIQUID,TB1216B,BLACK 92104A 92104-1064 1
GRIP-SCREW DRIVER 92106 92106-1001 1
TOOL-DRIVER,#2PHILLIPS&SLOT 92107 92107-1051 1
TOOL-WRENCH,ALLEN,5MM 92110 92110-1015 1
TOOL-WRENCH,ALLEN,4MM 92110A 92110-3703 1
