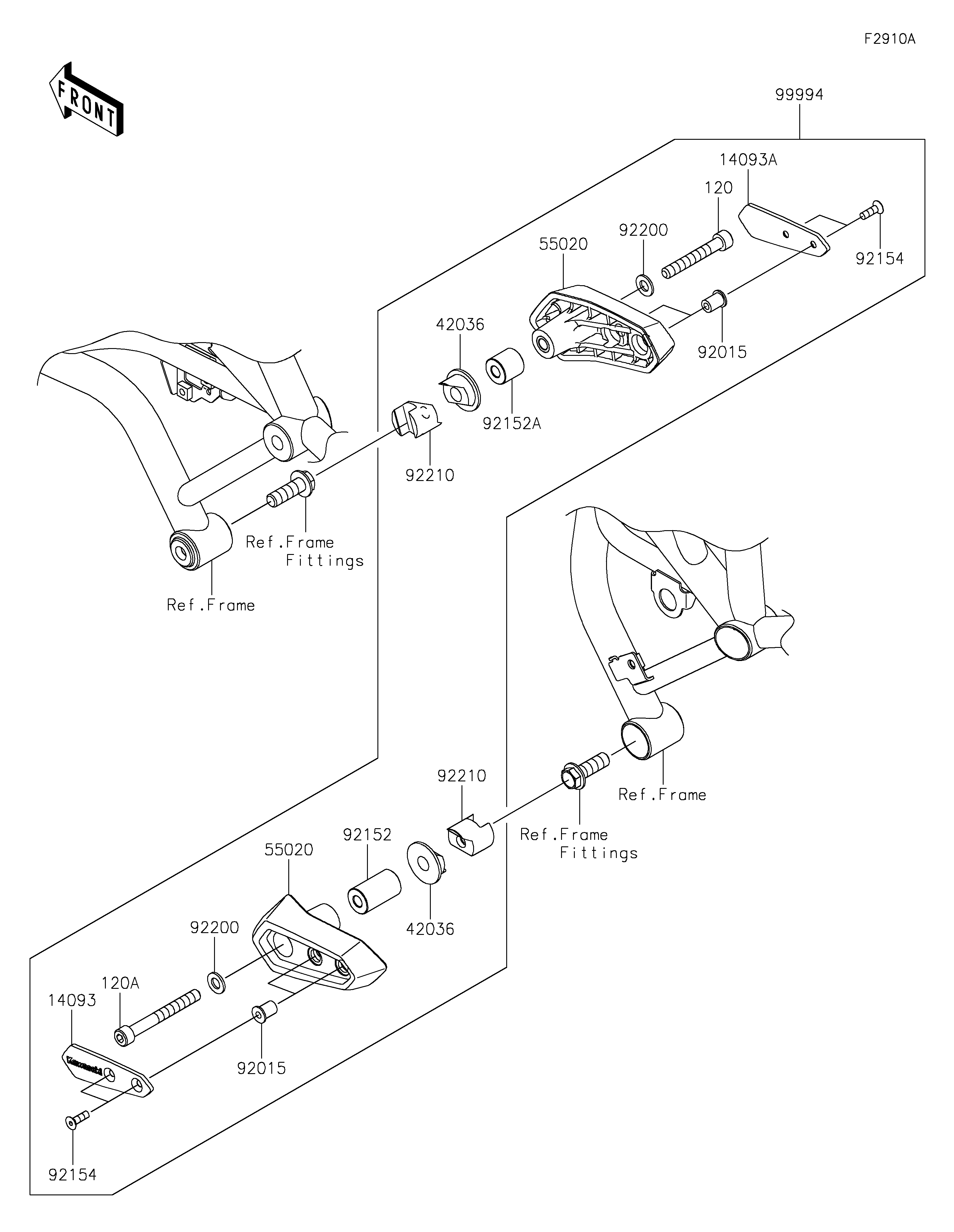

2022 NINJA H2® SX SE - Accessory(Slider)
14093
14093A
42036
42036
55020
55020
92015
92015
92152
92152A
92154
92154
92200
92200
92210
92210
99994
120
120A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SLIDER,LH | 14093 | 14093-0350 | 1 | ||
| COVER,SLIDER,RH | 14093A | 14093-0351 | 1 | ||
| SLEEVE,11X32X17.5 | 42036 | 42036-0765 | 2 | ||
| GUARD | 55020 | 55020-1997 | 2 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 4 | ||
| COLLAR,8.3X20X34.2 | 92152 | 92152-2451 | 1 | ||
| COLLAR | 92152A | 92152-2452 | 1 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-1014 | 4 | ||
| WASHER,8.4X16X1.6 | 92200 | 92200-0807 | 2 | ||
| NUT,8MM | 92210 | 92210-1421 | 2 | ||
| KIT-ACCESSORY,SLIDER | 99994 | 99994-1095 | 1 | ||
| BOLT-SOCKET | 120 | 120CA0855 | 1 | ||
| BOLT-SOCKET,8X70 | 120A | 120CA0870 | 1 |
| COVER,SLIDER,LH | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SLIDER,RH | |
| REF # | 14093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,11X32X17.5 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.3X20X34.2 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.4X16X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KIT-ACCESSORY,SLIDER | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X70 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
