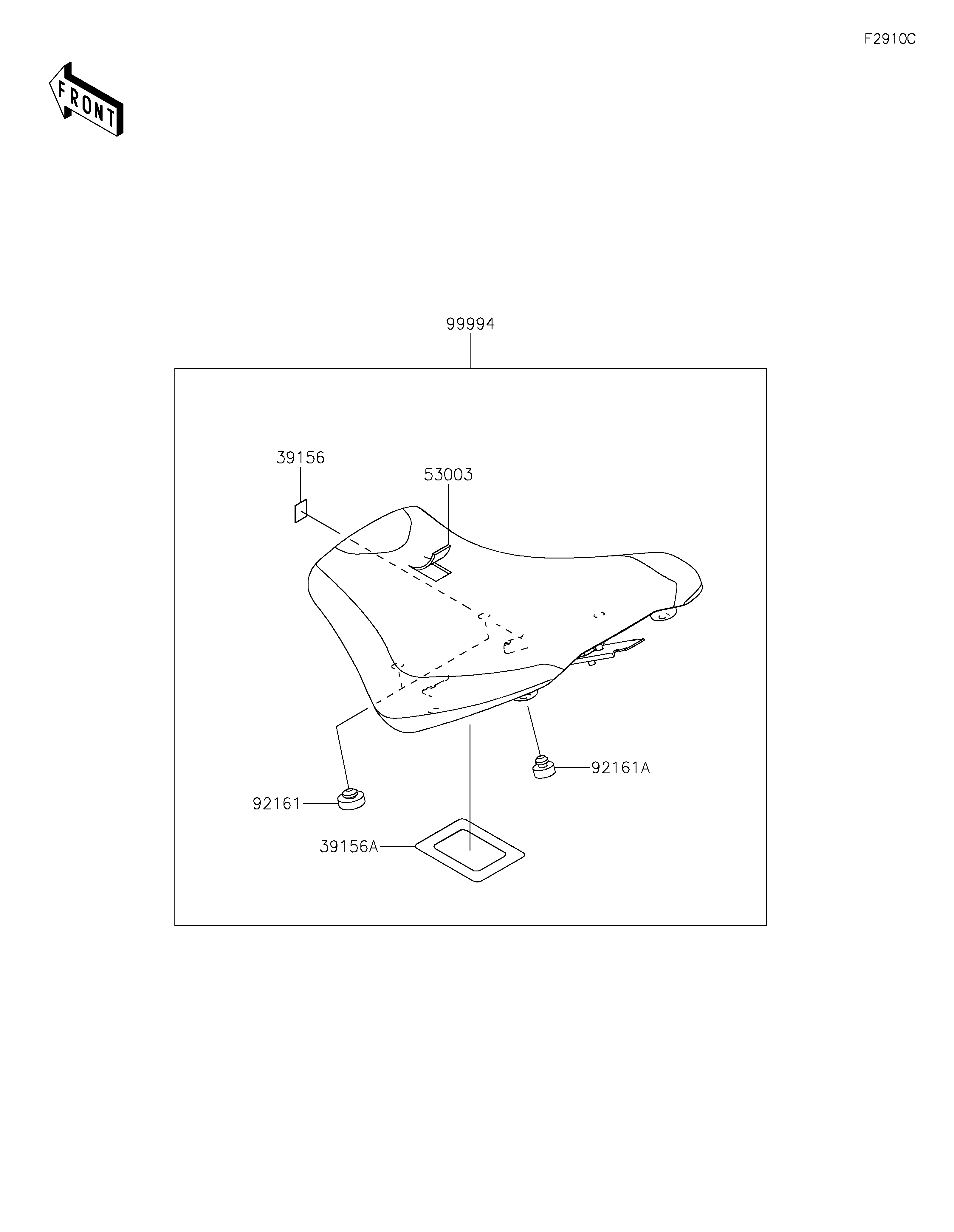

39156
39156A
53003
92161
92161A
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD,15X20X0.2 39156 39156-1784 2
PAD,66X86X0.2 39156A 39156-2342 1
LEATHER,FR SEAT,BLACK+GRY 53003 53003-0616-49L 1
DAMPER,SEAT,10X25X8 92161 92161-0095 2
DAMPER,8X20X8 92161A 92161-0223 4
FRONT-SEAT,LOW PREMIUM,BLACK 99994 99994-1598-49L 1
