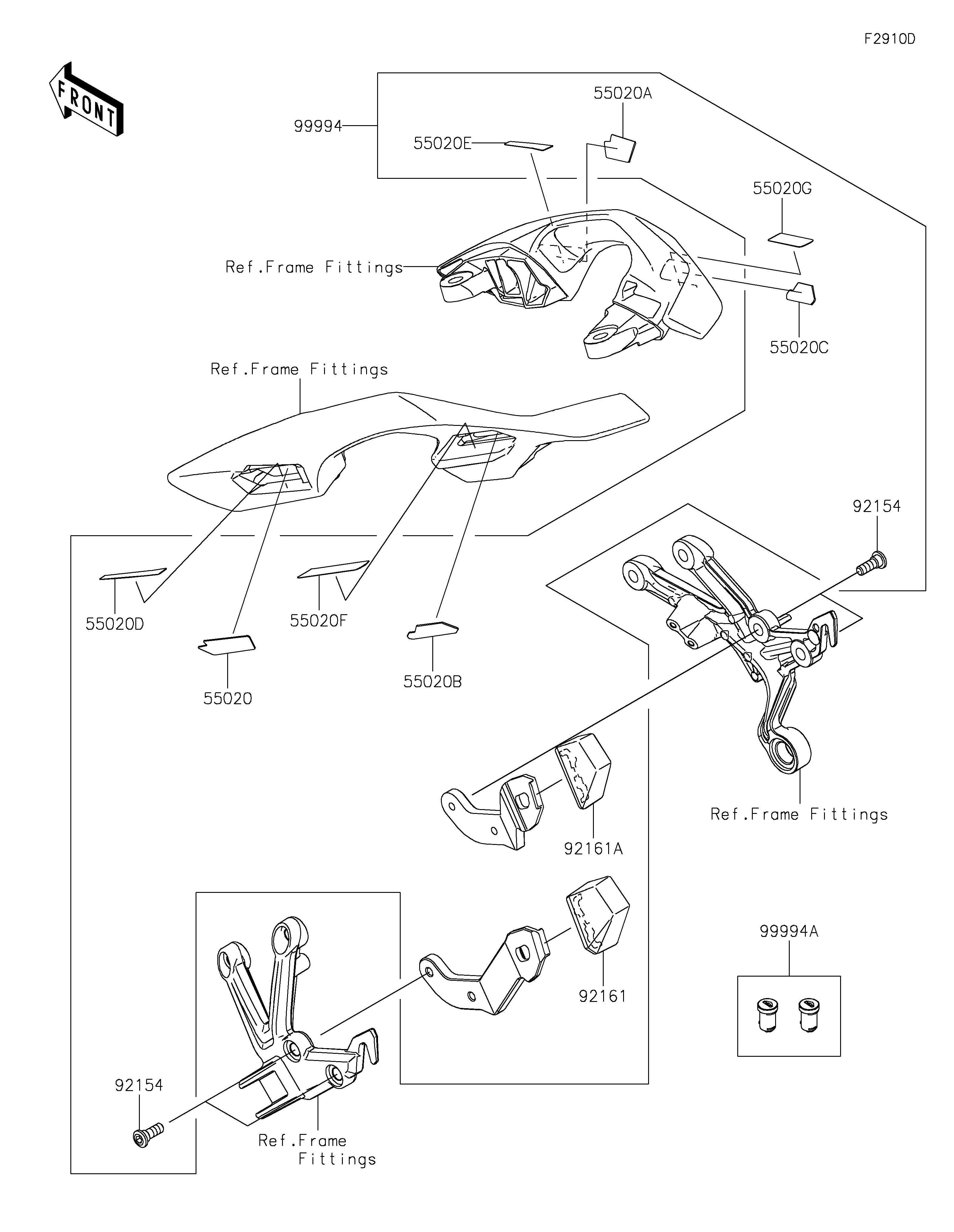

2022 NINJA H2® SX SE - Accessory(Bag Fitting Kit)

55020
55020A
55020B
55020C
55020D
55020E
55020F
55020G
92154
92154
92161
92161A
99994
99994A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,GRIP,FR,LH 55020 55020-0981 1
GUARD,GRIP,FR,RH 55020A 55020-0982 1
GUARD,GRIP,RR,LH 55020B 55020-1823 1
GUARD,GRIP,RR,RH 55020C 55020-1824 1
GUARD,FR,LH 55020D 55020-2222 1
GUARD,FR,RH 55020E 55020-2223 1
GUARD,RR,LH 55020F 55020-2224 1
GUARD,RR,RH 55020G 55020-2225 1
BOLT,SOCKET,8X23 92154 92154-2906 4
DAMPER,PANNIER,LH 92161 92161-1550 1
DAMPER,PANNIER,RH 92161A 92161-1551 1
KIT-ACCESSORY,BAG FITTING 99994 99994-1090 1
ROTOR(2PC) 99994A 99994-1566 1
