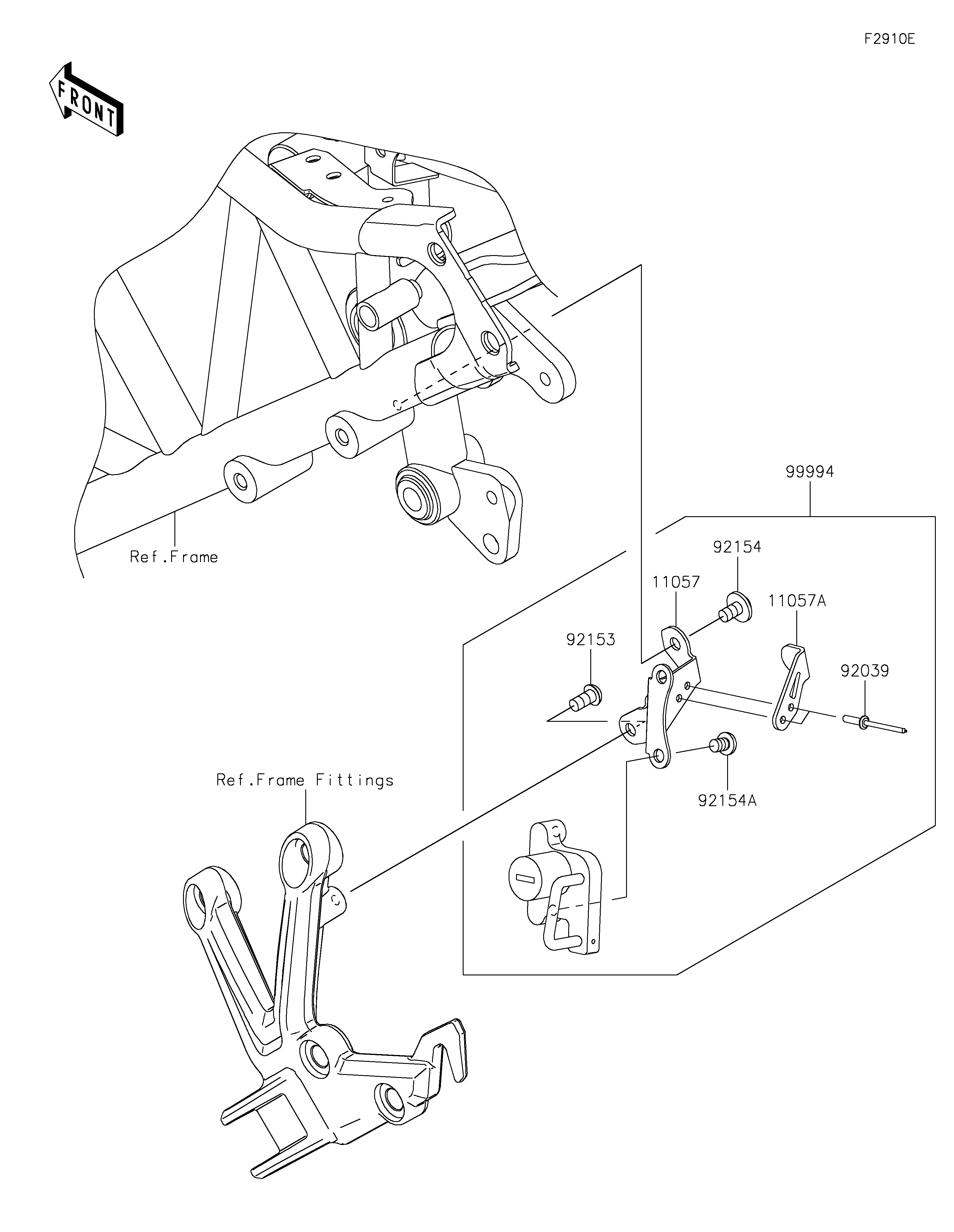

2022 NINJA H2® SX SE - Accessory(Safety and Security)

11057
11057A
92039
92153
92154
92154A
99994
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1450 1
BRACKET 11057A 11057-1648 1
RIVET,HOLE 3.5MM 92039 92039-0089 2
BOLT,6X12 92153 92153-0906 1
BOLT,SOCKET,6X10 92154 92154-1834 1
BOLT,ONE SIDE,6X8 92154A 92154-2948 2
HELMET LOCK KIT 99994 99994-1589 1
