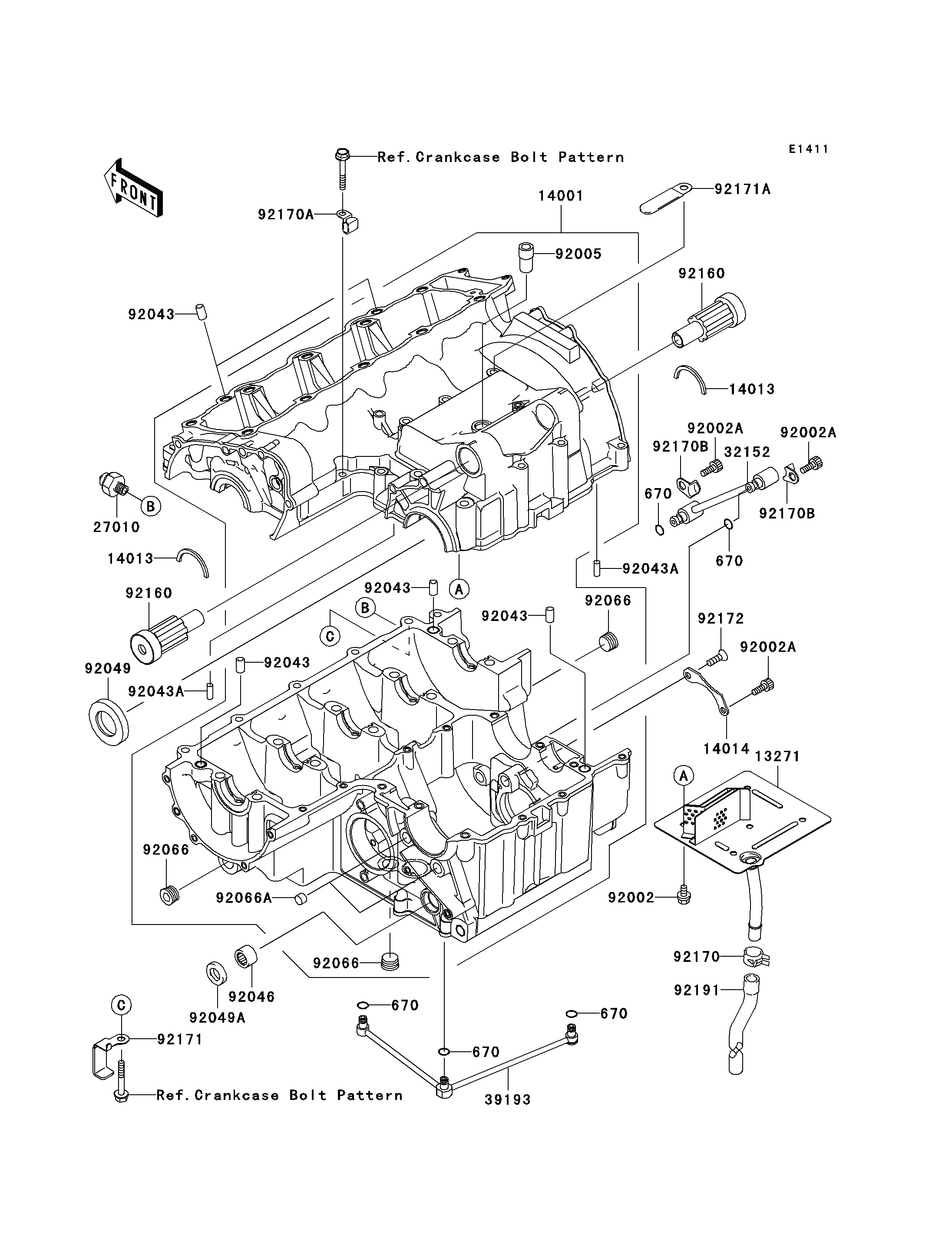

Parts Diagrams |
670
670
670
670
670
13271
14001
14013
14013
14014
27010
32152
39193
92002
92002A
92002A
92002A
92005
92043
92043
92043
92043
92043A
92043A
92046
92049
92049A
92066
92066
92066
92066A
92160
92160
92170
92170A
92170B
92170B
92171
92171A
92172
92191
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
O RING | 670 | 670D1505 | 5 | ||
PLATE,BREATHER | 13271 | 13271-1511 | 1 | ||
SET-CRANKCASE | 14001 | 14001-1321 | 1 | ||
RING-POSITION | 14013 | 14013-1051 | 2 | ||
PLATE-POSITION | 14014 | 14014-1140 | 1 | ||
SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
PIPE,RH,L=76.8 | 32152 | 32152-1545 | 1 | ||
PIPE-OIL | 39193 | 39193-0014 | 1 | ||
BOLT,6X10 | 92002 | 92002-1449 | 5 | ||
BOLT,SOCKET,6X16 | 92002A | 92002-1778 | 3 | ||
FITTING,BREATHER | 92005 | 92005-1238 | 1 | ||
PIN,DOWEL,10X14 | 92043 | 92043-1037 | 5 | ||
PIN,6X16 | 92043A | 92043-1690 | 2 | ||
BEARING-NEEDLE,7E-HK1412 | 92046 | 92046-037 | 1 | ||
SEAL-OIL,TC32578 | 92049 | 92049-1474 | 1 | ||
SEAL-OIL,TC14245 | 92049A | 92049-1520 | 1 | ||
PLUG,PT3/8X10 | 92066 | 92066-0003 | 3 | ||
PLUG | 92066A | 92066-1110 | 2 | ||
DAMPER | 92160 | 92160-1868 | 2 | ||
CLAMP | 92170 | 92170-1118 | 1 | ||
CLAMP | 92170A | 92170-1577 | 1 | ||
CLAMP | 92170B | 92170-1578 | 2 | ||
CLAMP,WATER HOSE | 92171 | 92171-0070 | 1 | ||
CLAMP | 92171A | 92171-0092 | 1 | ||
SCREW,6X16 | 92172 | 92172-0090 | 1 | ||
TUBE,BREATHER | 92191 | 92191-1776 | 1 |
O RING | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PLATE,BREATHER | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-POSITION | |
REF # | 14013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,OIL PRESSURE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,RH,L=76.8 | |
REF # | 32152 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-OIL | |
REF # | 39193 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X10 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X16 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
FITTING,BREATHER | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,10X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PIN,6X16 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,7E-HK1412 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC32578 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC14245 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,PT3/8X10 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER | |
REF # | 92160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92170B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP,WATER HOSE | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,BREATHER | |
REF # | 92191 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
