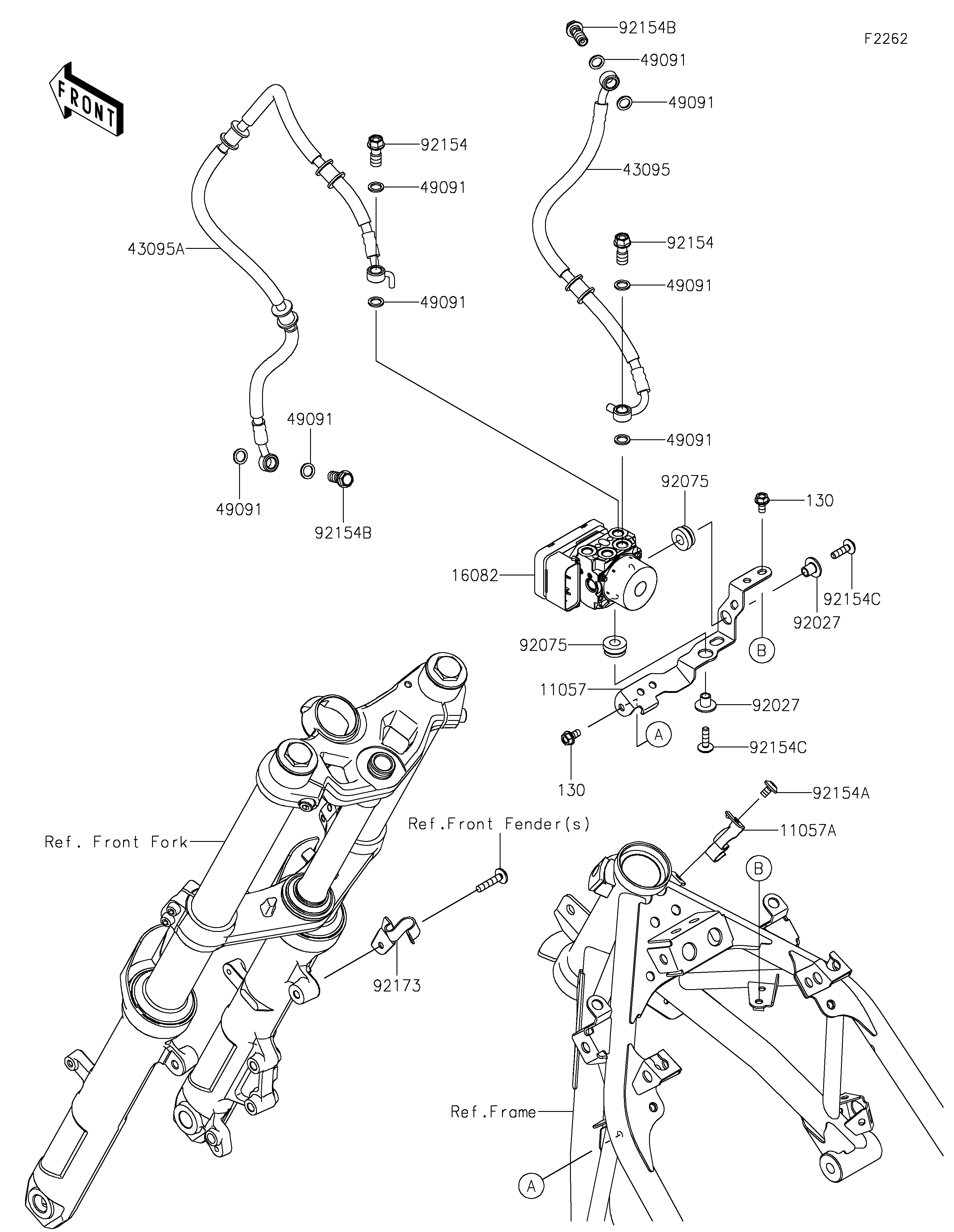

Parts Diagrams |
11057
11057A
16082
43095
43095A
49091
49091
49091
49091
49091
49091
49091
49091
92027
92027
92075
92075
92154
92154
92154A
92154B
92154B
92154C
92154C
92173
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ABS UNIT | 11057 | 11057-1098 | 1 | ||
| BRACKET | 11057A | 11057-1100 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-0785 | 1 | ||
| HOSE-BRAKE,HU-FR M/CYLINDER | 43095 | 43095-1851 | 1 | ||
| HOSE-BRAKE,HU-FR CALIPER | 43095A | 43095-1852 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 8 | ||
| COLLAR,FLANGED,L=12.1,BLACK | 92027 | 92027-1651 | 2 | ||
| DAMPER | 92075 | 92075-277 | 2 | ||
| BOLT,BANJO,10X22 | 92154 | 92154-1138 | 2 | ||
| BOLT,SOCKET,6X10 | 92154A | 92154-1693 | 1 | ||
| BOLT,BANJO,10X23 | 92154B | 92154-1712 | 2 | ||
| BOLT,SOCKET,6X22 | 92154C | 92154-2302 | 2 | ||
| CLAMP,HOSE&SENSOR | 92173 | 92173-1774 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BB0612 | 2 |
| BRACKET,ABS UNIT | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-ASSY-OIL | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,HU-FR M/CYLINDER | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,HU-FR CALIPER | |
| REF # | 43095A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SEAL,10.1X14.5X1.5 | |
| REF # | 49091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FLANGED,L=12.1,BLACK | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,10X22 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,10X23 | |
| REF # | 92154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X22 | |
| REF # | 92154C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE&SENSOR | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
