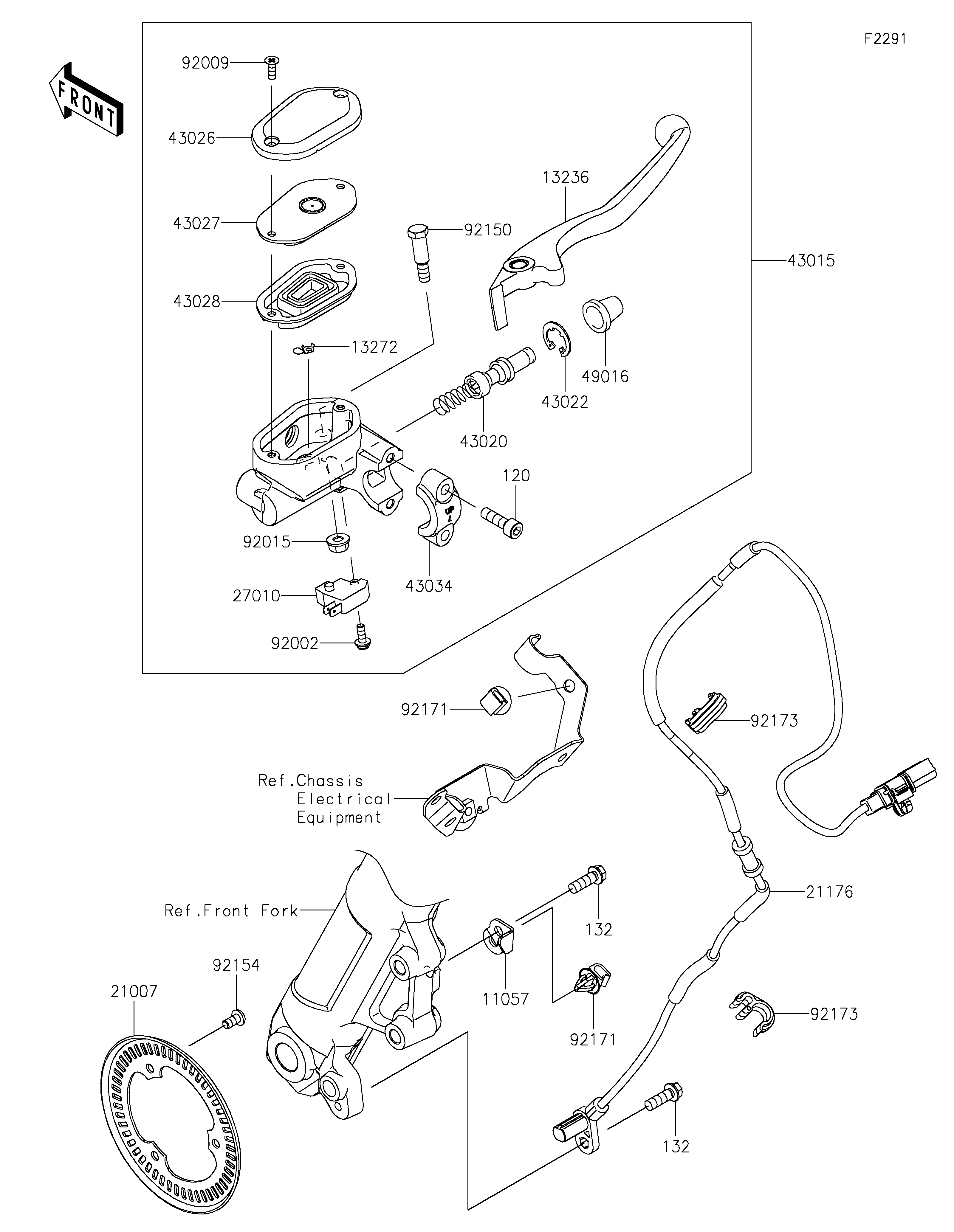

2023 Ninja® 400 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13236
13272
21007
21176
27010
43015
43020
43022
43026
43027
43028
43034
49016
92002
92009
92015
92150
92154
92171
92171
92173
92173
120
132
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SENSOR 11057 11057-1099 1
LEVER-COMP 13236 13236-0811 1
PLATE 13272 13272-0573 1
ROTOR,SENSOR,FR 21007 21007-0671 1
SENSOR,SPEED,FR 21176 21176-1141 1
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0713 1
PISTON-COMP-BRAKE 43020 43020-0022 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0026 1
PLATE-DIAPHRAGM 43027 43027-0010 1
DIAPHRAGM 43028 43028-0022 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT,SOCKET,5X10 92154 92154-2801 3
CLAMP 92171 92171-0640 2
CLAMP,HOSE&SENSOR LINE 92173 92173-1613 2
BOLT-SOCKET,6X20 120 120CB0620 2
BOLT-FLANGED-SMALL,6X18 132 132BC0618 2
