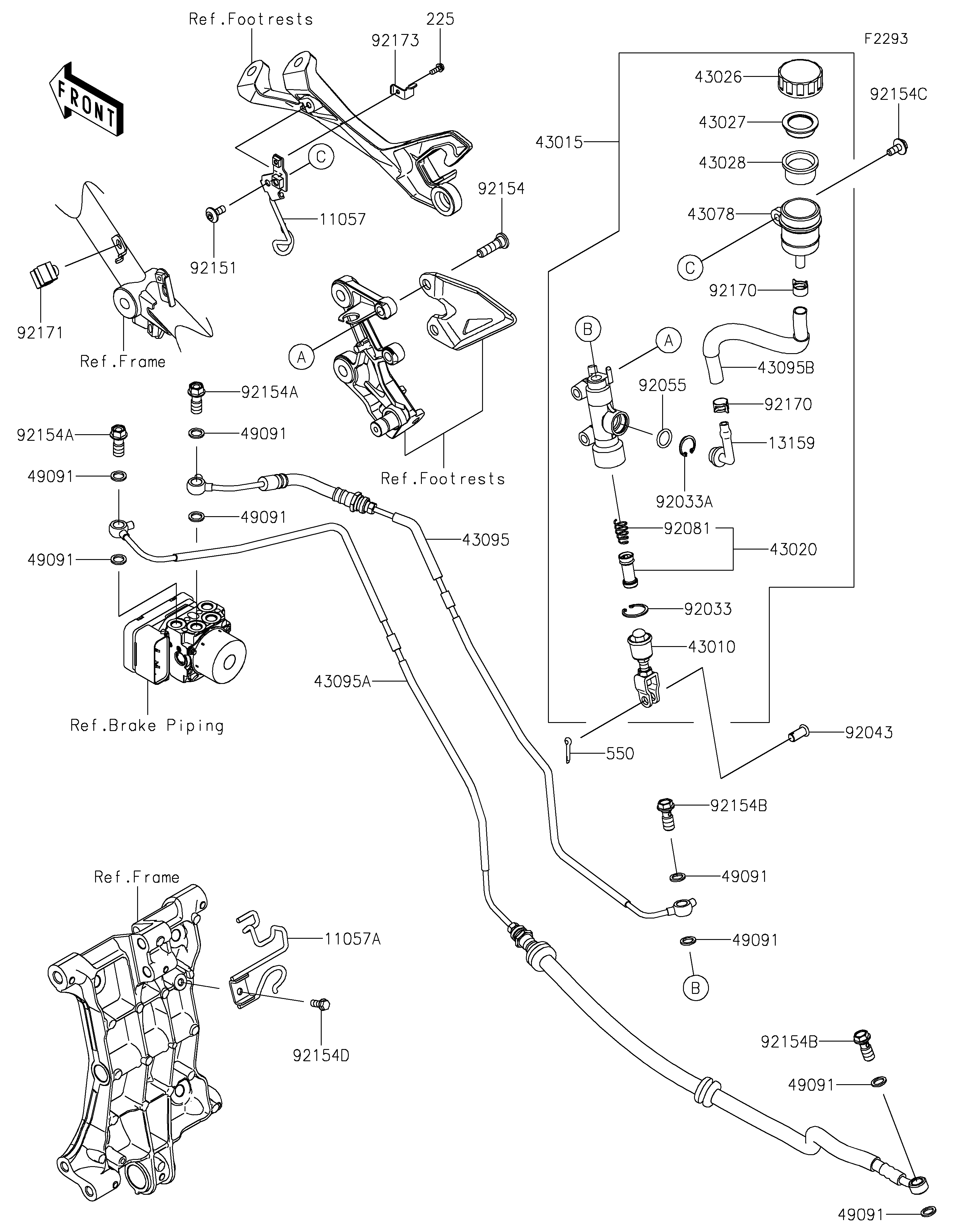

2023 Ninja® 400 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
49091
49091
49091
49091
49091
49091
49091
49091
92033
92033A
92043
92055
92081
92151
92154
92154A
92154A
92154B
92154B
92154C
92154D
92170
92170
92171
92173
225
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR RESERVOIR 11057 11057-1101 1
BRACKET,PIVOT BRACKET 11057A 11057-1103 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0022 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0667 1
PISTON-COMP-BRAKE 43020 43020-0023 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0040 1
HOSE-BRAKE,RR M/CYLINDER-HU 43095 43095-1489 1
HOSE-BRAKE,HU-RR CALIPER 43095A 43095-1490 1
HOSE-BRAKE,RR RESERVOIR 43095B 43095-1495 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0904 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,SOCKET,6X14 92151 92151-1654 1
BOLT,SOCKET,8X30 92154 92154-0843 2
BOLT,BANJO,10X22 92154A 92154-1138 2
BOLT,BANJO,10X23 92154B 92154-1712 2
BOLT,UPSET-WP,6X16 92154C 92154-2244 1
BOLT,6X14 92154D 92154-4129 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92171 92171-0818 1
CLAMP,RESERVOIR TANK CAP 92173 92173-0028 1
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
PIN-COTTER,2.0X15 550 550AA2015 1
