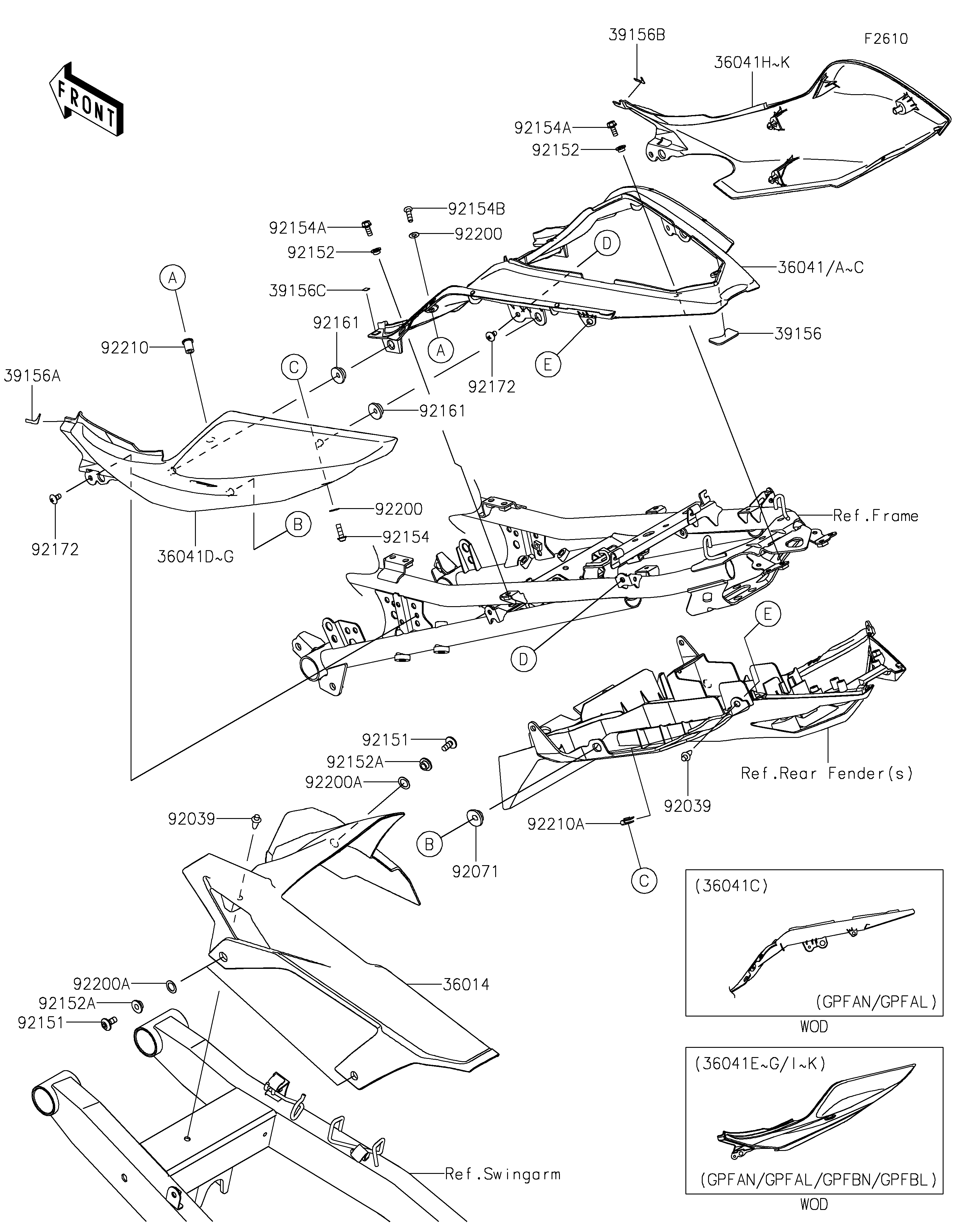

2023 Ninja® 400 ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36041
36041A
36041C
36041D
36041E
36041G
36041H
36041I
36041K
39156
39156A
39156B
39156C
92039
92039
92071
92151
92151
92152
92152
92152A
92152A
92154
92154A
92154A
92154B
92161
92161
92172
92172
92200
92200
92200A
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-0571 1
COVER-TAIL,CNT,M.C.GRAY 36041 36041-0036-51A 1
COVER-TAIL,CNT,P.B.WHITE 36041A 36041-0036-54X 1
COVER-TAIL,CNT,EBONY 36041C 36041-0036-H8 1
COVER-TAIL,LH,M.C.GRAY 36041D 36041-0037-51A 1
COVER-TAIL,LH,P.B.WHITE 36041E 36041-0037-54X 1
COVER-TAIL,LH,L.GREEN 36041G 36041-0037-777 1
COVER-TAIL,RH,M.C.GRAY 36041H 36041-0038-51A 1
COVER-TAIL,RH,P.B.WHITE 36041I 36041-0038-54X 1
COVER-TAIL,RH,L.GREEN 36041K 36041-0038-777 1
PAD,19.4X34X2 39156 39156-2218 1
PAD,TAIL COVER,FR,LH 39156A 39156-2298 1
PAD,TAIL COVER,FR,RH 39156B 39156-2299 1
PAD,5X13 39156C 39156-2300 2
RIVET 92039 92039-0060 3
GROMMET,20X24X7.5 92071 92071-0766 2
BOLT,SOCKET,6X14 92151 92151-1654 3
COLLAR,6X8X4.5 92152 92152-2395 4
COLLAR,6.5X10X5.9 92152A 92152-2486 3
BOLT,SOCKET,5X16 92154 92154-0209 2
BOLT,FLANGED,5X12 92154A 92154-2893 4
BOLT,SOCKET,5X16 92154B 92154-3837 2
DAMPER 92161 92161-1531 4
SCREW,5X10 92172 92172-1090 4
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
WASHER,10.4X15.9X0.5 92200A 92200-2525 3
NUT,WELL,5MM 92210 92210-0498 2
NUT 92210A 92210-0571 2
