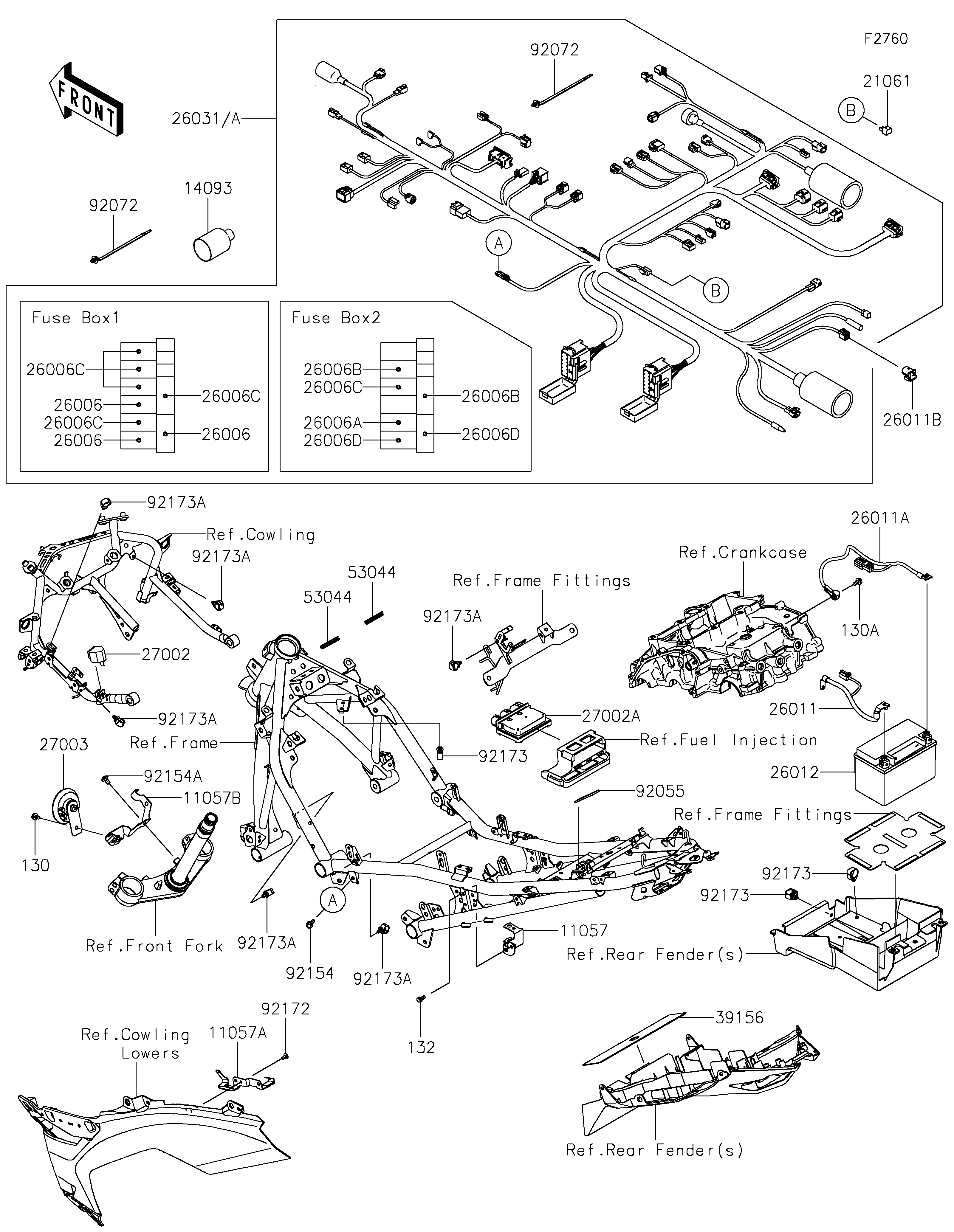

2023 Ninja® 400 ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
14093
21061
26006
26006
26006
26006A
26006B
26006B
26006C
26006C
26006C
26006C
26006D
26006D
26011
26011A
26011B
26012
26031
26031A
27002
27002A
27003
39156
53044
53044
92055
92072
92072
92154
92154A
92172
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
130
130A
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MAGNETIC SW. 11057 11057-1225 1
BRACKET,FUSE BOX 11057A 11057-1771 1
BRACKET,HORN 11057B 11057-7535 1
COVER,HARNESS 14093 14093-0720 1
RECTIFIER 21061 21061-1003 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,20A 26006A 26006-0032 1
FUSE,MINI BLADE,5A,TAN 26006B 26006-1077 2
FUSE,MINI BLADE,10A,RED 26006C 26006-1078 6
FUSE,MINI BLADE,30A,GREEN 26006D 26006-1080 2
WIRE-LEAD,BATTERY(+) 26011 26011-0974 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0975 1
WIRE-LEAD,DIAG CONNECTOR 26011B 26011-1901 1
BATTERY,FTX9-BS,12V 8AH 26012 26012-1436 1
HARNESS,MAIN 26031 26031-3922 1 CN,US
HARNESS,MAIN 26031A 26031-3923 1 CA
RELAY-ASSY,TURN SIGNAL 27002 27002-0031 1
RELAY-ASSY 27002A 27002-0061 1
HORN 27003 27003-0111 1
PAD,60X250X1 39156 39156-2219 1
TRIM,45MM 53044 53044-0644 2
RING-O,50MM 92055 92055-0954 1
BAND,OS170-FT7(BLACK) 92072 92072-1414 AR
BOLT,FLANGED,6X16 92154 92154-0551 1
BOLT,SOCKET,6X12 92154A 92154-2355 2
SCREW,TAPPING,5X10 92172 92172-0262 2
CLAMP,HOLDER CLIP 92173 92173-0868 3
CLAMP 92173A 92173-1951 6
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
