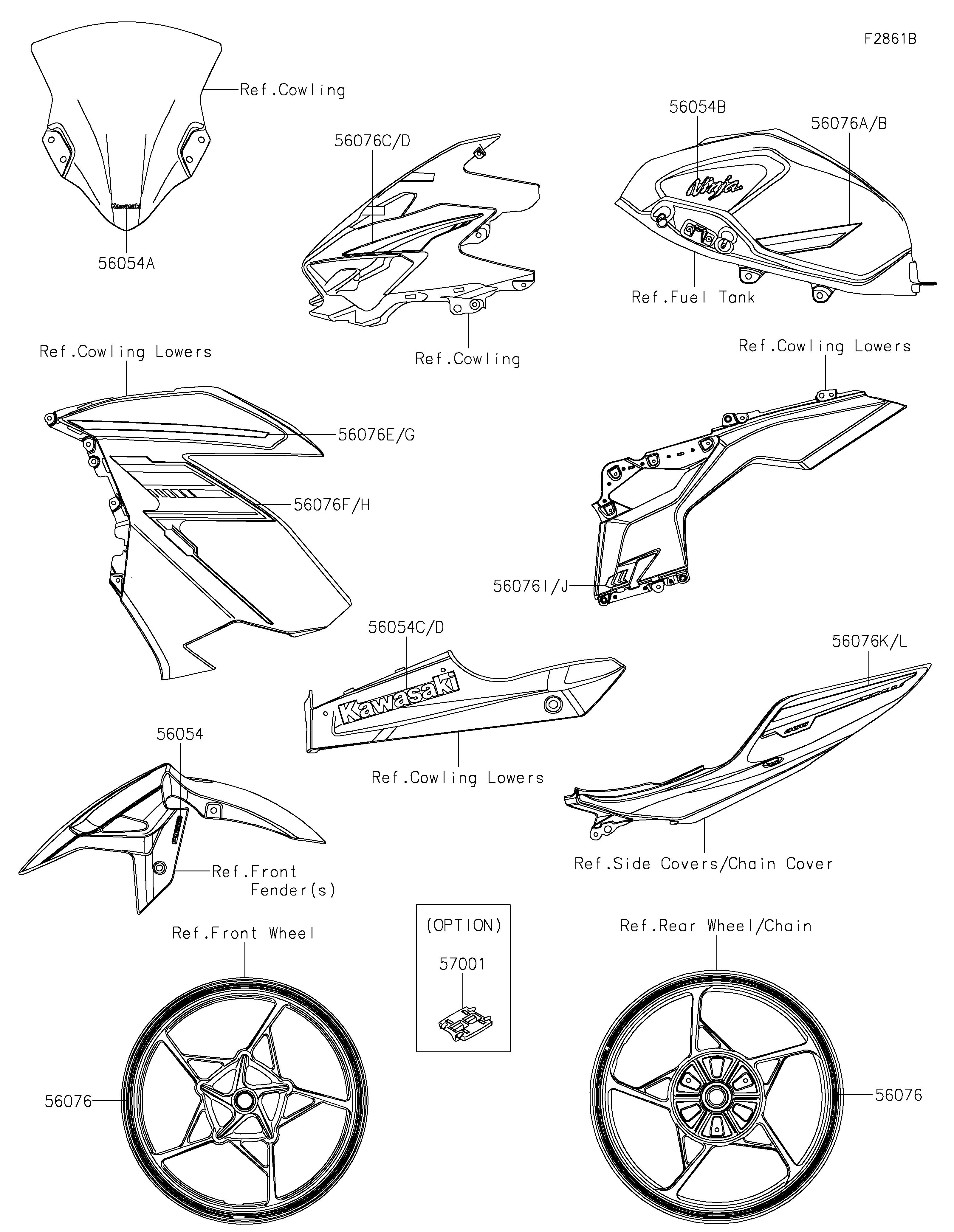

2023 Ninja® 400 ABS - Decals(White)(GPFAN/GPFAL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56076
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-1412 2
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2261 1
MARK,FUEL TANK,NINJA 56054B 56054-3816 2
MARK,LWR COWL.,LH,KAWASAKI 56054C 56054-3817 1
MARK,LWR COWL.,RH,KAWASAKI 56054D 56054-3818 1
PATTERN,WHEEL,PURPLE,1353X6 56076 56076-3841 4
PATTERN,FUEL TANK,LH 56076A 56076-4256 1
PATTERN,FUEL TANK,RH 56076B 56076-4257 1
PATTERN,UPP COWLING,LH 56076C 56076-4258 1
PATTERN,UPP COWLING,RH 56076D 56076-4259 1
PATTERN,SIDE COWL.,LH,UPP,UPP 56076E 56076-4260 1
PATTERN,SIDE COWL.,LH,UPP,LWR 56076F 56076-4261 1
PATTERN,SIDE COWL.,RH,UPP,UPP 56076G 56076-4262 1
PATTERN,SIDE COWL.,RH,UPP,LWR 56076H 56076-4263 1
PATTERN,SIDE COWL.,LH,LWR 56076I 56076-4264 1
PATTERN,SIDE COWL.,RH,LWR 56076J 56076-4265 1
PATTERN,TAIL COVER,LH 56076K 56076-4266 1
PATTERN,TAIL COVER,RH 56076L 56076-4267 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
