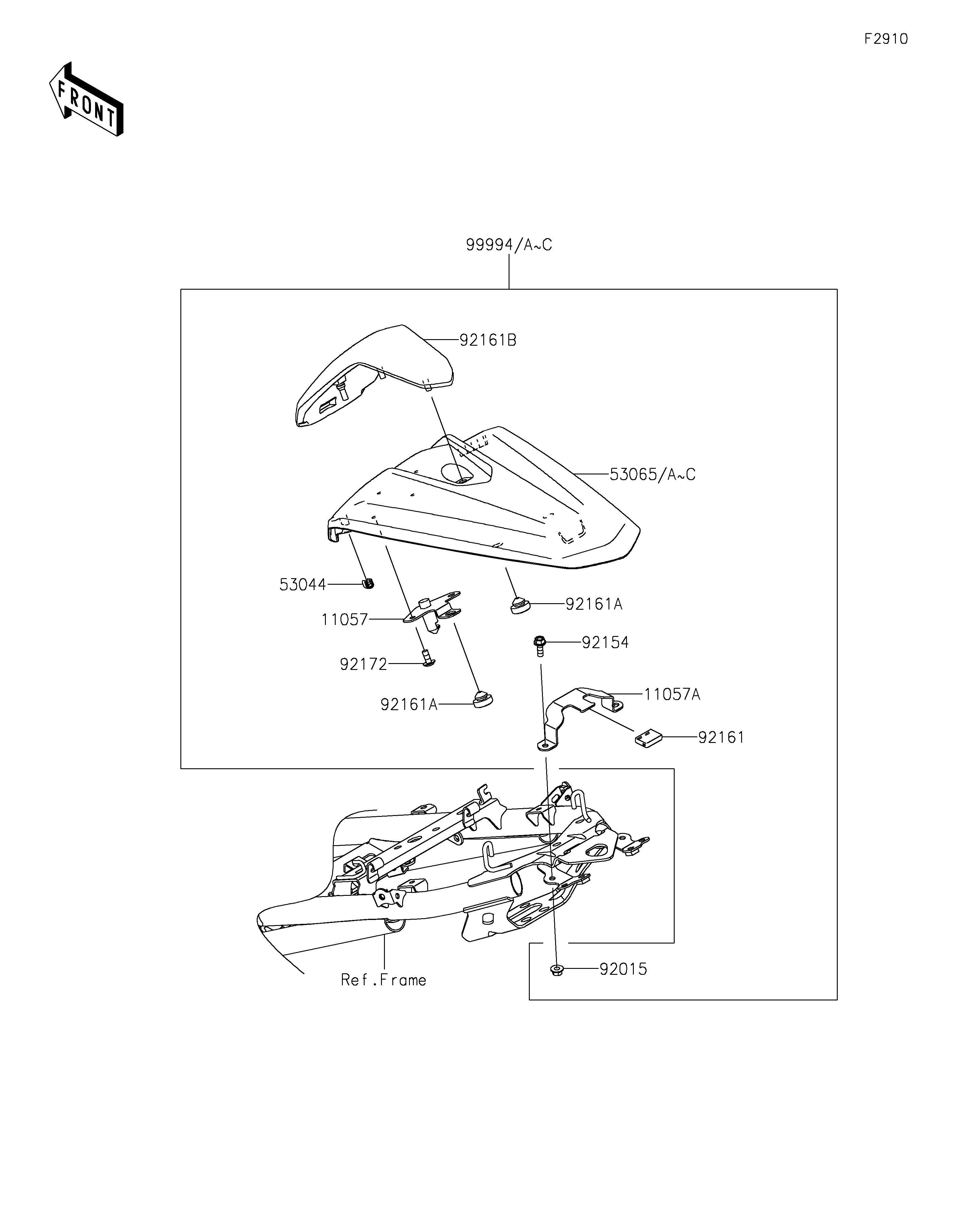

2023 Ninja® 400 ABS - Accessory(Pillion Seat Cover)
11057
11057A
53044
53065
53065A
53065C
92015
92154
92161
92161A
92161A
92161B
92172
99994
99994A
99994C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,COVER FIX | 11057 | 11057-1241 | 1 | ||
| BRACKET,FRAME FIX | 11057A | 11057-1242 | 1 | ||
| TRIM,L=20 | 53044 | 53044-0021 | 2 | ||
| COVER SEAT,M.C.GRAY | 53065 | 53065-0044-51A | 1 | ||
| COVER SEAT,P.B.WHITE | 53065A | 53065-0044-54X | 1 | ||
| COVER SEAT,L.GREEN | 53065C | 53065-0044-777 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1656 | 2 | ||
| BOLT,FLANGED,5X14 | 92154 | 92154-2894 | 2 | ||
| DAMPER,15X21X5.5 | 92161 | 92161-1472 | 1 | ||
| DAMPER,9.5X18X6 | 92161A | 92161-1473 | 3 | ||
| DAMPER,SEAT COVER | 92161B | 92161-1988 | 1 | ||
| SCREW,5X12 | 92172 | 92172-0821 | 2 | ||
| PILLION SEAT COVER,M.C.GRAY | 99994 | 99994-1038-51A | 1 | ||
| PILLION SEAT COVER,P.B.WHT | 99994A | 99994-1038-54X | 1 | ||
| PILLION SEAT COVER,L.GREEN | 99994C | 99994-1038-777 | 1 |
