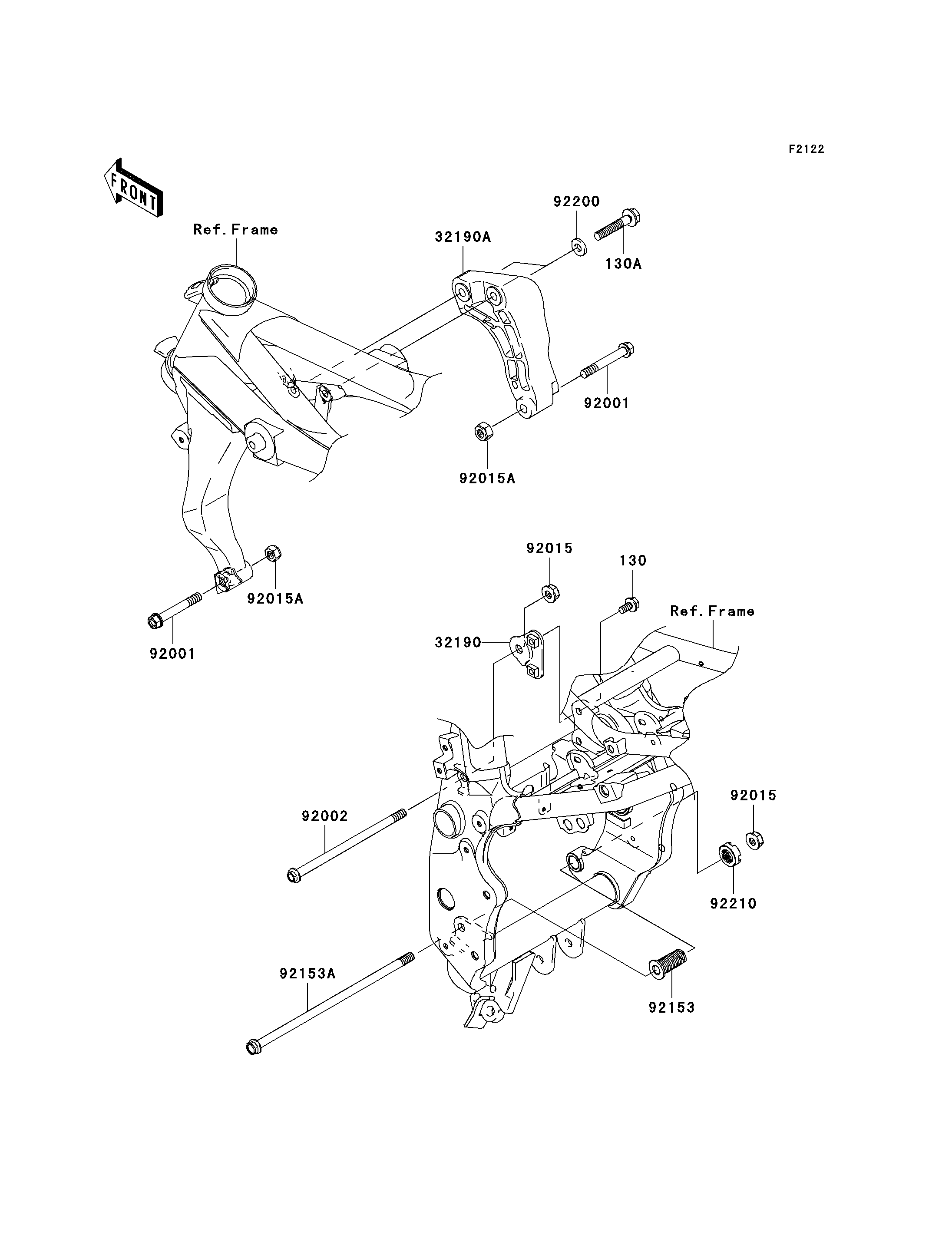

130
130A
32190
32190A
92001
92001
92002
92015
92015
92015A
92015A
92153
92153A
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16,BLACK 130 130J0816 2
BOLT-FLANGED,10X55 130A 130J1055 2
BRACKET-ENGINE,RH,RR,UPP 32190 32190-0009 1
BRACKET-ENGINE,FR,RH 32190A 32190-0010 1
BOLT,FLANGED,10X70 92001 92001-1618 2
BOLT,10X183 92002 92002-1337 1
NUT,FLANGED,10MM 92015 92015-1180 2
NUT,LOCK,10MM,BLACK 92015A 92015-1189 2
BOLT,ENGINE MOUNT,18MM 92153 92153-1098 1
BOLT,FLANGED,10X240 92153A 92153-1271 1
WASHER,10X22X3.2 92200 92200-0121 2
NUT,18MM 92210 92210-1203 1
