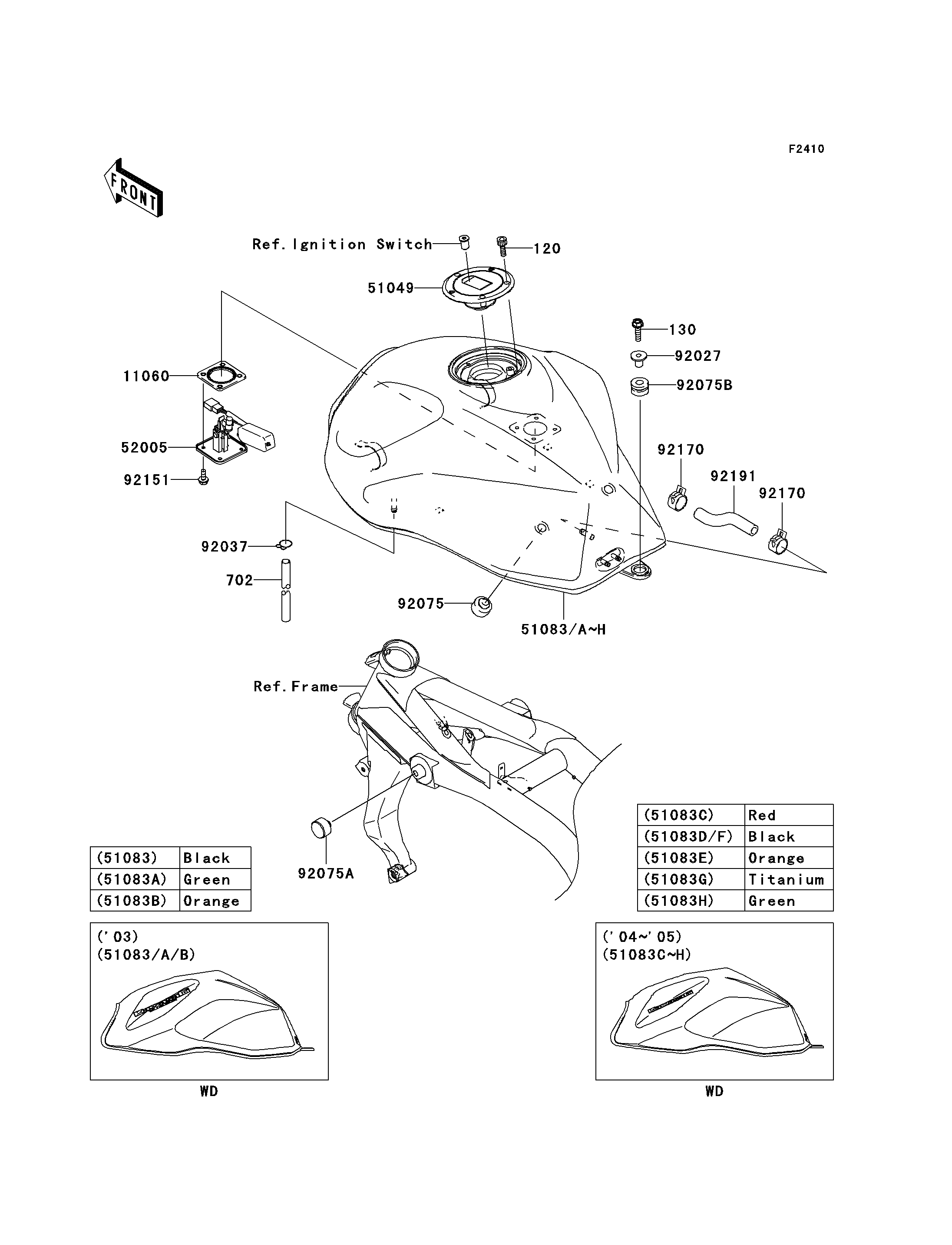

2005 Z1000 (European) - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
120
130
702
11060
51049
51083F
51083G
51083H
52005
92027
92037
92075
92075A
92075B
92151
92170
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120S0516 3
BOLT-FLANGED,8X30 130 130G0830 1
TUBE-RUBBER,6X9X750 702 702A06750 1
GASKET,FUEL GAUGE 11060 11060-1952 1
CAP-TANK,FUEL 51049 51049-0010 1
TANK-COMP-FUEL,M,S,BLACK 51083F 51083-5444-660 1
TANK-COMP-FUEL,TITANIUM 51083G 51083-5445-725 1
TANK-COMP-FUEL,L.GREEN 51083H 51083-5445-777 1
GAUGE,FUEL 52005 52005-1160 1
COLLAR,L=19.3 92027 92027-1780 1
CLAMP,TUBE 92037 92037-010 1
DAMPER 92075 92075-015 2
DAMPER,FUEL TANK 92075A 92075-101 2
DAMPER 92075B 92075-1736 1
BOLT,5X12 92151 92151-1599 4
CLAMP 92170 92170-1492 2
TUBE 92191 92191-1801 1
