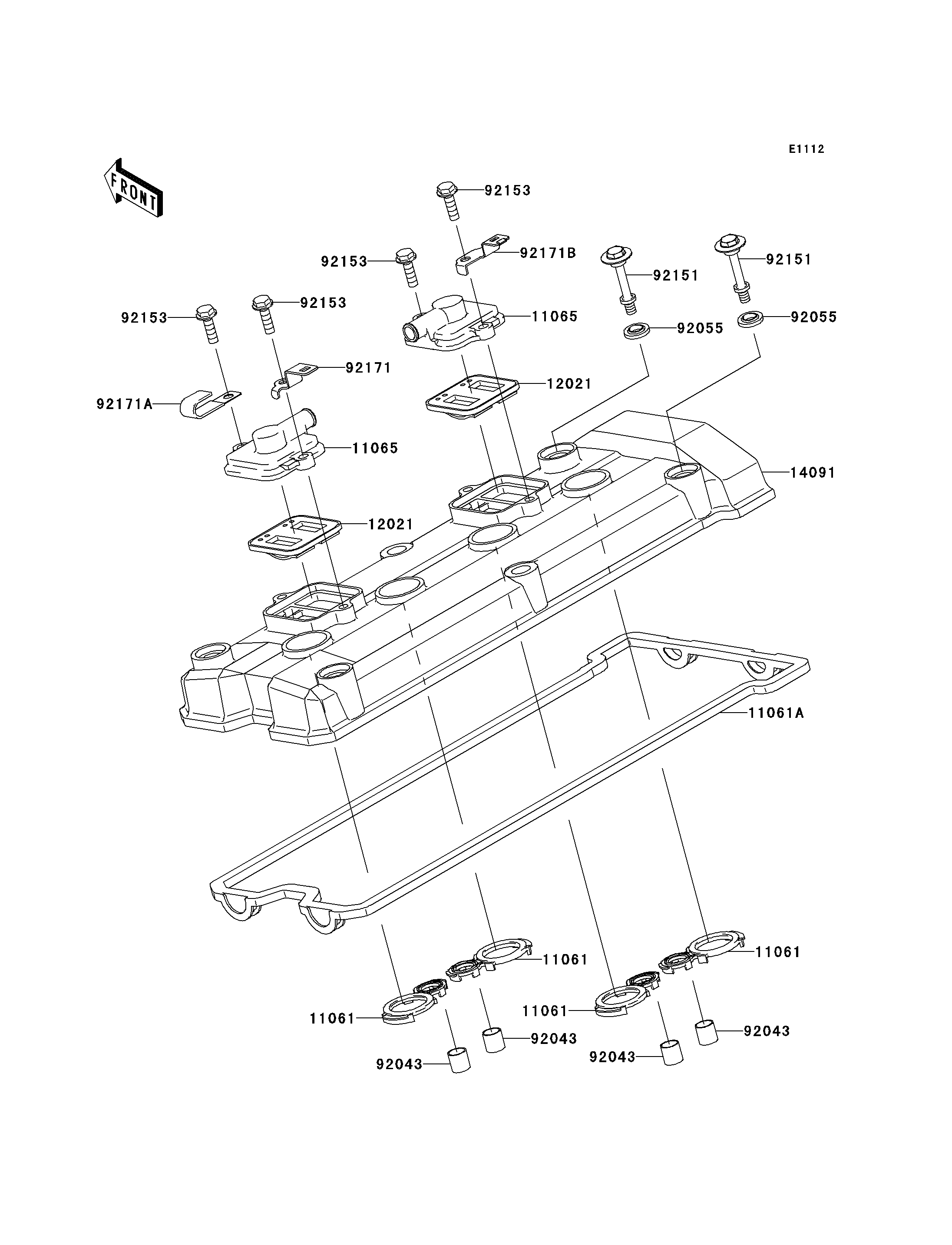

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11061
11061
11061
11061
11061A
11065
11065
12021
12021
14091
92043
92043
92043
92043
92055
92055
92151
92151
92153
92153
92153
92153
92171
92171A
92171B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SPARK PLUG | 11061 | 11061-0104 | 4 | ||
| GASKET,HEAD COVER | 11061A | 11061-1165 | 1 | ||
| CAP | 11065 | 11065-1247 | 2 | ||
| VALVE-ASSY-REED | 12021 | 12021-1130 | 2 | ||
| COVER,HEAD | 14091 | 14091-1540 | 1 | ||
| PIN,10.1X12X14 | 92043 | 92043-4009 | 4 | ||
| RING-O,HEAD COVER BOLT | 92055 | 92055-1352 | 6 | ||
| BOLT,HEAD COVER | 92151 | 92151-1221 | 6 | ||
| BOLT,6X18 | 92153 | 92153-0602 | 4 | ||
| CLAMP,LH | 92171 | 92171-0051 | 1 | ||
| CLAMP | 92171A | 92171-0305 | 1 | ||
| CLAMP,RH | 92171B | 92171-0311 | 1 |
